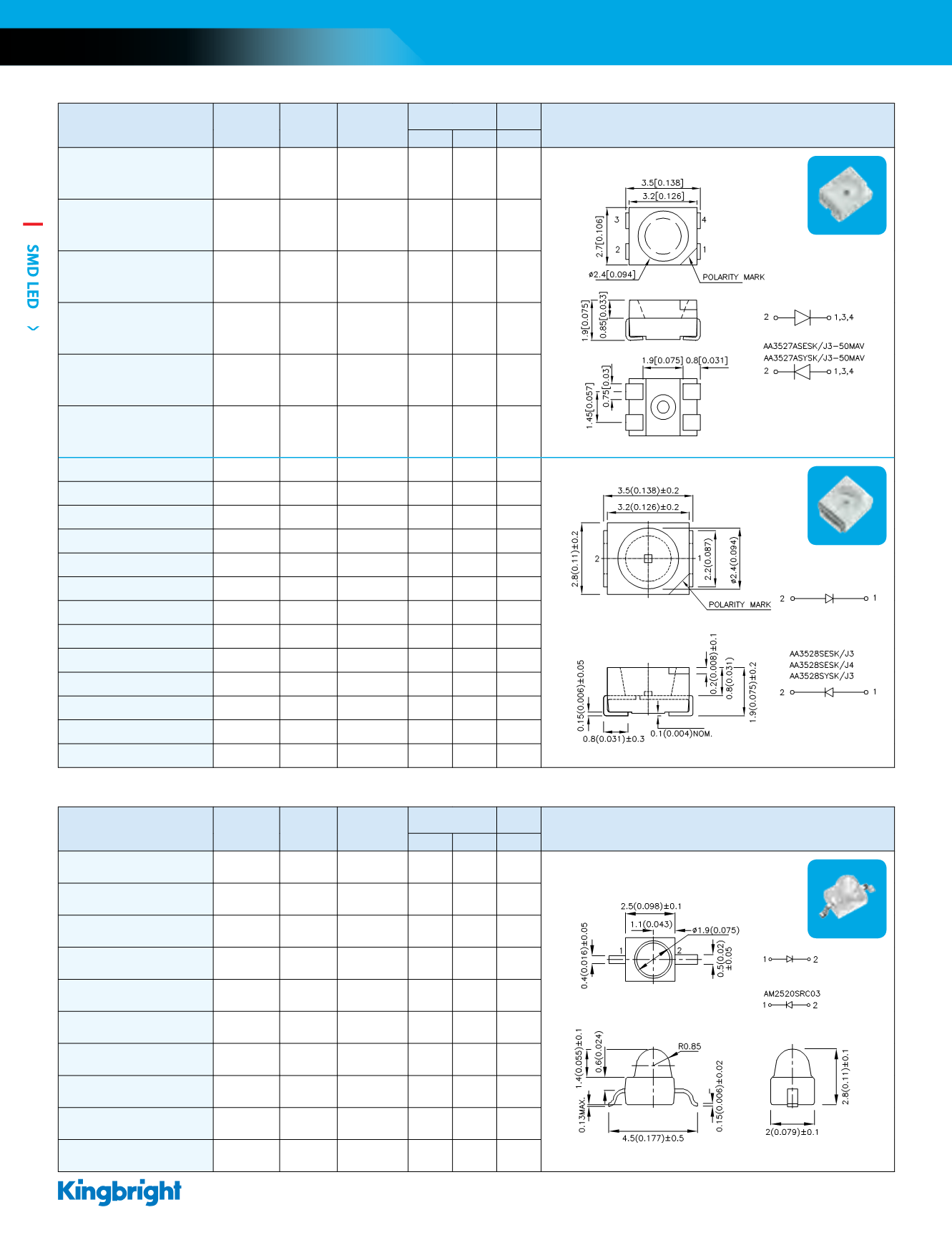

2016-2017 Kingbright Catalog - page 20

18
SMD LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA*30mA**50mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
AA3527ASURS-50MAV AlGaInP n 630 Water Clear **120 **280 120°
3.5mm x 2.7mm x 1.9mm
AA3527ASESK/J3-50MAV AlGaInP n 625 Water Clear **1000 **1500 120°
AA3527ASESK-50MAV AlGaInP n 601 Water Clear **200 **400 120°
AA3527ASYSK/J3-50MAV AlGaInP n 590 Water Clear **1000 **1500 120°
AA3527AZGSK-30MAV InGaN n 525 Water Clear *500 *700 120°
AA3527AVBS/D-30MAV InGaN n 470 Water Clear *300 *600 120°
AA3528EC GaAsP/GaP n 617 Water Clear 8 12 120° 3.5mm x 2.8mm x 1.9mm
AA3528SURCK AlGaInP n 630 Water Clear 55 100 120°
AA3528SESK/J3 AlGaInP n 625 Water Clear 300 450 120°
AA3528SESK/J4 AlGaInP n 605 Water Clear 500 800 120°
AA3528SECK AlGaInP n 601 Water Clear 120 230 120°
AA3528YC GaAsP/GaP n 588 Water Clear 8 15 120°
AA3528SYCK AlGaInP n 590 Water Clear 80 200 120°
AA3528SYSK/J3 AlGaInP n 590 Water Clear 200 450 120°
AA3528SGC GaP n 568 Water Clear 12 25 120°
AA3528CGCK AlGaInP n 570 Water Clear 40 100 120°
AA3528ZGCK InGaN n 525 Water Clear 300 500 120°
AA3528QBS/D InGaN n 465 Water Clear 80 150 120°
AA3528VBS/D InGaN n 470 Water Clear 300 450 120°
TOP-EMITTING PLCC SMD LED
Units : mm(inch)
Tolerance : ±0.25(0.01)
AA3528
AA3527A
Units : mm(inch)
Tolerance : ±0.25(0.01)
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
AM2520EC03 GaAsP/GaP n 617 Water Clear 20 50 20° Subminiature Solid State Lamps Gull Wing Lead
AM2520SRC03 GaAlAs n 640 Water Clear 300 600 20°
AM2520SURCK03 AlGaInP n 630 Water Clear 500 1000 20°
AM2520SECK03 AlGaInP n 601 Water Clear 1000 1800 20°
AM2520YC03 GaAsP/GaP n 588 Water Clear 20 50 20°
AM2520SYCK03 AlGaInP n 590 Water Clear 1300 2300 20°
AM2520SGC03 GaP n 568 Water Clear 40 90 20°
AM2520CGCK03 AlGaInP n 570 Water Clear 400 800 20°
AM2520ZGCK03 InGaN n 525 Water Clear 1600 2700 20°
AM2520QBC/D03 InGaN n 465 Water Clear 300 900 20°
SUBMINIATURE SMD LED
AM2520xxx03
Units : mm(inch)
Tolerance : ±0.25(0.01)
Top-Emitting PLCC SMD LED, Subminiature SMD LED
