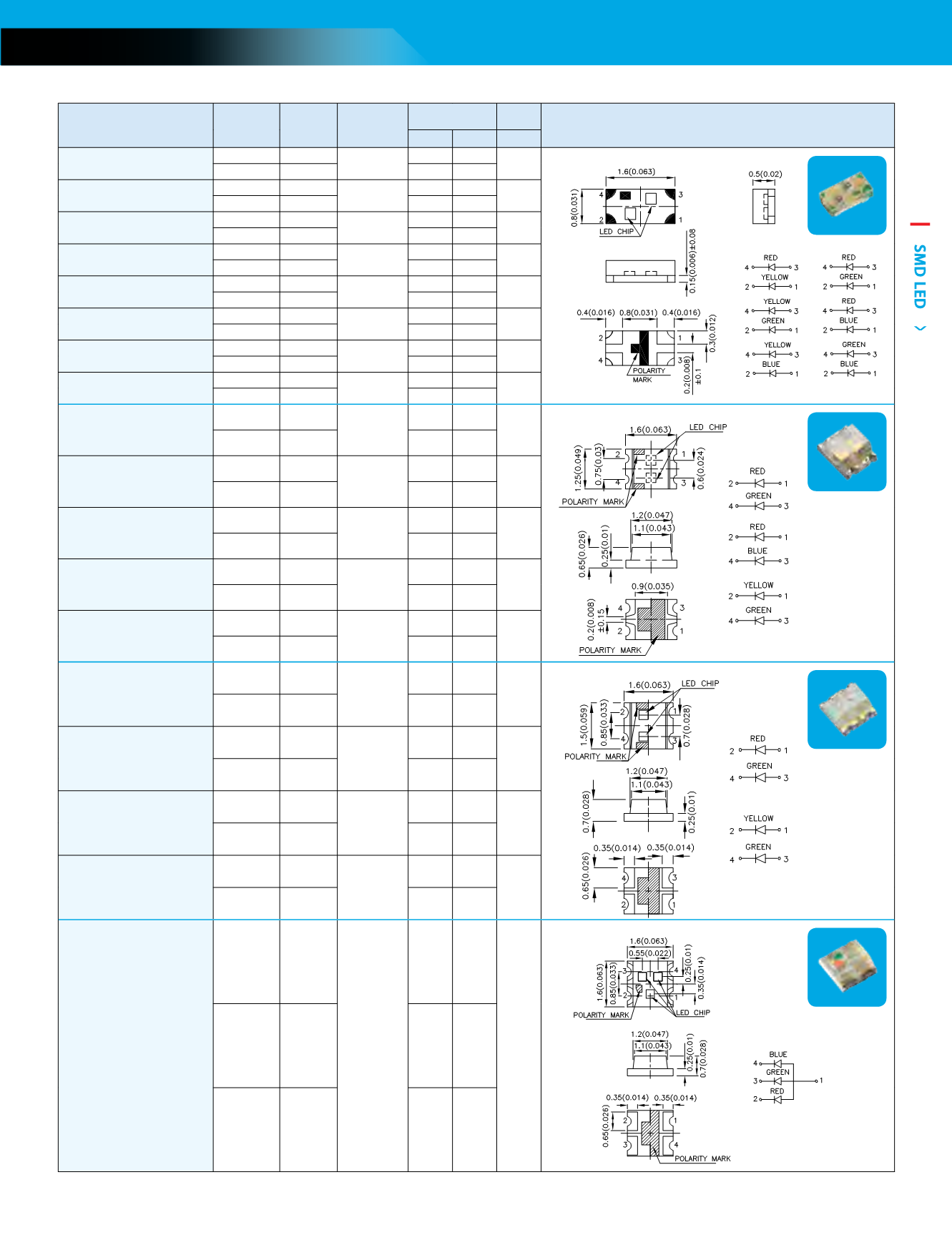

2016-2017 Kingbright Catalog - page 15

13
SMD LED
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APHB1608SYKSURKC AlGaInP n 590 Water Clear 80 150 130° 1.6mm x 0.8mm x 0.5mm (0603 Bi-Color)
AlGaInP n 630 40 90
APHB1608CGKSURKC AlGaInP n 570 Water Clear 20 50 130°
AlGaInP n 630 40 90
APHB1608CGKSYKC AlGaInP n 570 Water Clear 20 50 130°
AlGaInP n 590 80 150
APHB1608ZGKSURKC
InGaN n 525
Water Clear
200 350
130°
AlGaInP n 630 40 90
APHB1608ZGKSYKC InGaN n 525 Water Clear 200 350 130°
AlGaInP n 590 80 150
APHB1608QBDSURKC
InGaN n 465 Water Clear
40 70
130°
AlGaInP n 630 40 90
APHB1608QBDSYKC InGaN n 465 Water Clear 40 70 130°
AlGaInP n 590 80 150
APHB1608QBDCGKC InGaN n 465 Water Clear 40 70 130°
AlGaInP n 570 20 50
APTB1612ESGC-F01
GaAsP/GaP n 617
Water Clear
3 7
120°
1.6mm x 1.25mm x 0.65mm (0605 Bi-Color)
GaP n 568 5 12
APTB1612SURKCGKC-F01
AlGaInP n 630
Water Clear
40 80
120°
AlGaInP n 570 20 50
APTB1612SURKQBDC-F01
AlGaInP n 630
Water Clear
40 80
120°
InGaN n 465 40 80
APTB1612YSGC-F01
GaAsP/GaP n 588
Water Clear
3 8
120°
GaP n 568 5 12
APTB1612SYKCGKC-F01
AlGaInP n 590
Water Clear
80 120
120°
AlGaInP n 570 20 50
APTB1615ESGC-F01
GaAsP/GaP n 617
Water Clear
3 7
120°
1.6mm x 1.5mm x 0.7mm (0606 Bi-Color)
GaP n 568 5 12
APTB1615SURKCGKC-F01
AlGaInP n 630
Water Clear
40 80
120°
AlGaInP n 570 20 50
APTB1615YSGC-F01
GaAsP/GaP n 588
Water Clear
3 8
120°
GaP n 568 5 12
APTB1615SYKCGKC-F01
AlGaInP n 590
Water Clear
80 120
120°
AlGaInP n 570 20 50
APTF1616SEEZGQBDC
AlGaInP n 621
Water Clear
55 110
120°
1.6mm x 1.6mm x 0.7mm (Full Color)
InGaN n 525 120 280
InGaN n 465 40 70
MULTI-COLOR SMD LED
Units : mm(inch)
Tolerance : ±0.15(0.006)
APHB1608
Units : mm(inch)
Tolerance : ±0.2(0.008)
APTB1612
APTB1615
Units : mm(inch)
Tolerance : ±0.2(0.008)
APTF1616
Units : mm(inch)
Tolerance : ±0.2(0.008)
Multi-Color SMD LED
