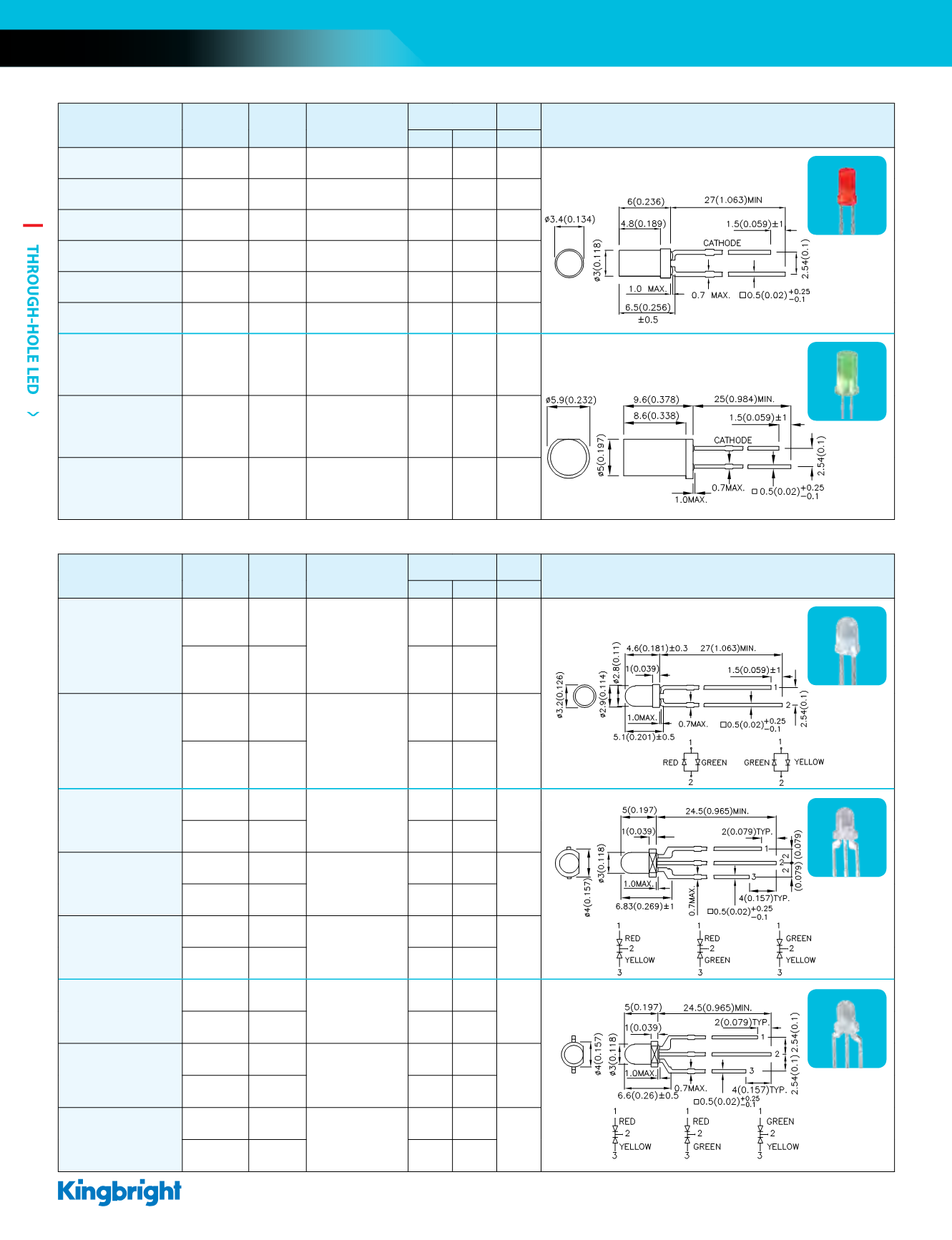

2016-2017 Kingbright Catalog - page 28

THROUGH-HOLE LED
26
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP424HDT GaP n 635 Red Diffused 0.2 0.6 100° T-1 (3mm) Cylindrical
WP424IDT GaAsP/GaP n 617 Red Diffused 1.2 4 100°
WP424SRDT GaAlAs n 640 Red Diffused *12 *20 100°
WP424EDT GaAsP/GaP n 617 Orange Diffused 1.2 4 100°
WP424YDT GaAsP/GaP n 588 Yellow Diffused 1.2 3 100°
WP424GDT GaP n 568 Green Diffused 2 6 100°
WP483IDT GaAsP/GaP n 617 Red Diffused 1.2 4 100°
T-1 3/4 (5mm) Cylindrical
WP483YDT GaAsP/GaP n 588 Yellow Diffused 1.2 3 100°
WP483GDT GaP n 568 Green Diffused 1.5 3 100°
CYLINDRICAL LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP937EGW
GaAsP/GaP n 617
White Diffused
4 10
60°
T-1 (3mm) Round
GaP n 568 6 14
WP937GYW
GaP n 568
White Diffused
6 14
60°
GaAsP/GaP n 588 4 8
WP115VEYW
GaAsP/GaP n 617
White Diffused
8 20
60°
T-1 (3mm) Round
GaAsP/GaP n 588 10 24
WP115VEGW
GaAsP/GaP n 617
White Diffused
8 20
60°
GaP n 568 10 30
WP115VGYW
GaP n 568
White Diffused
10 30
60°
GaAsP/GaP n 588 10 24
WP115WEYW
GaAsP/GaP n 617
White Diffused
12 20
60°
T-1 (3mm) Round
GaAsP/GaP n 588 10 20
WP115WEGW
GaAsP/GaP n 617
White Diffused
12 20
60°
GaP n 568 20 40
WP115WGYW
GaP n 568
White Diffused
15 40
60°
GaAsP/GaP n 588 10 20
MULTI-COLOR LED
WP424
WP483
WP937
WP115V
WP115W
Cylindrical LED,
Multi-color LED
