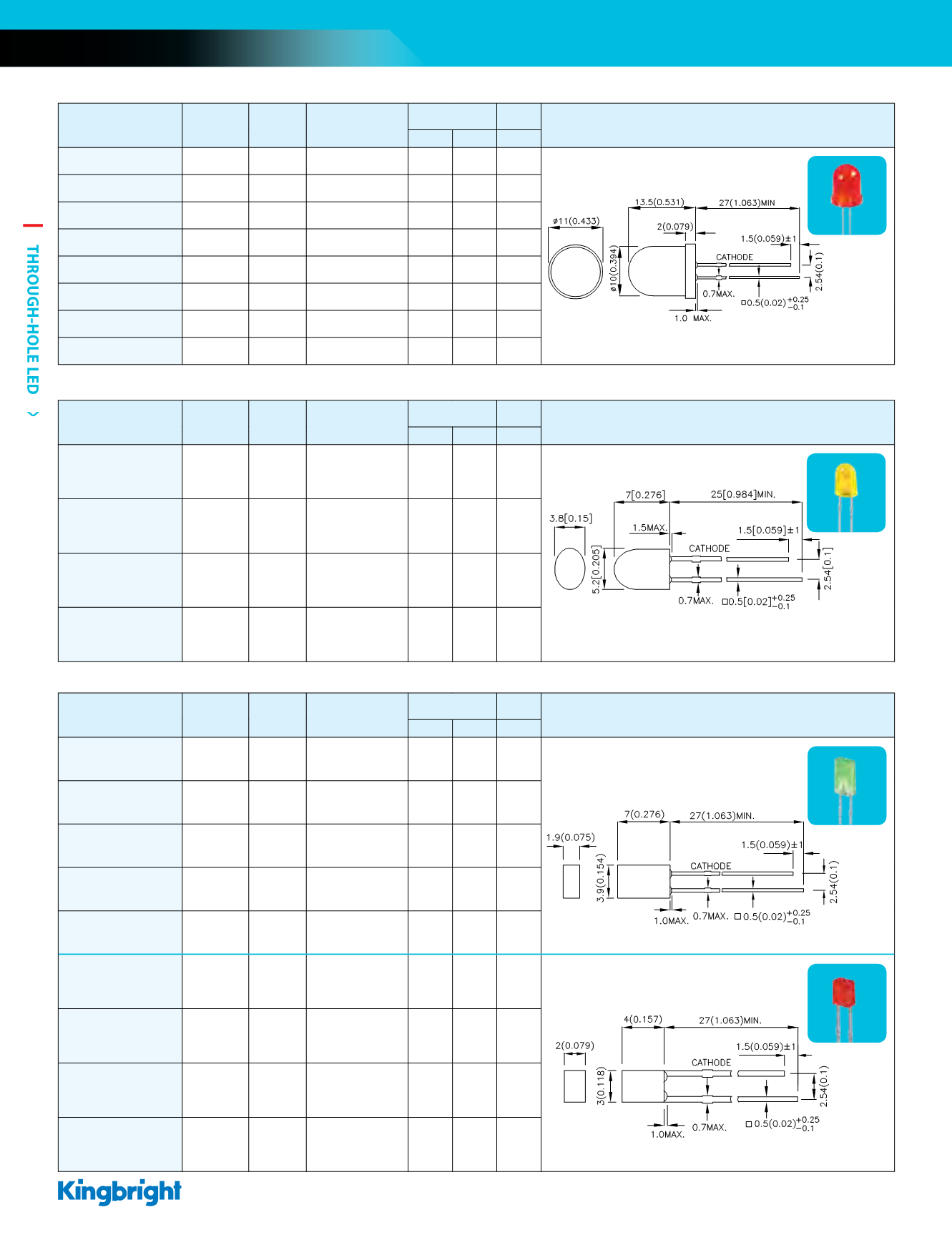

2016-2017 Kingbright Catalog - page 26

THROUGH-HOLE LED
24
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP5603SIDLK/SD/J3 AlGaInP n 625 Red
Semi Diffused 1000 2000 80°(H)40°(V)
5.2mm x 3.8mm Oval
WP5603SYDLK/SD/J3 AlGaInP n 590 Yellow
Semi Diffused 600 1300 80°(H)40°(V)
WP5603ZGDL/SD/G InGaN n 525 Green
Semi Diffused 2300 5000 80°(H)40°(V)
WP5603QBDL/SD/G InGaN n 465 Blue
Semi Diffused 650 1100 80°(H)40°(V)
ROUND LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP813ID GaAsP/GaP n 617 Red Diffused 36 80 30° 10mm Round
WP813SRC/D GaAlAs n 640 Water Clear 500 850 15°
WP813SRD/D GaAlAs n 640 Red Diffused 110 180 30°
WP813SRD/E GaAlAs n 640 Red Diffused 120 200 30°
WP813SRC/J4 AlGaInP n 640 Water Clear 1800 3000 15°
WP813SRD/J4 AlGaInP n 640 Red Diffused 300 600 30°
WP813YD GaAsP/GaP n 588 Yellow Diffused 18 50 30°
WP813GD GaP n 568 Green Diffused 20 60 30°
WP813
WP5603
OVAL LED
RECTANGULAR LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP144IDT GaAsP/GaP n 617 Red Diffused 1.2 3 110°
1.9mm x 3.9mm Rectangular
WP144SRDT GaAlAs n 640 Red Diffused *20 *50 110°
WP144EDT GaAsP/GaP n 617 Orange Diffused 1.2 3 110°
WP144YDT GaAsP/GaP n 588 Yellow Diffused 1.5 4 110°
WP144GDT GaP n 568 Green Diffused 2 6 110°
WP914IDT GaAsP/GaP n 617 Red Diffused 1.2 4 100°
2mm x 3mm Rectangular
WP914IT GaAsP/GaP n 617 Red Transparent 1.8 5 90°
WP914GDT GaP n 568 Green Diffused 3 6 100°
WP914GT GaP n 568 Green Transparent 3 8 90°
WP144
WP914
Round LED,
Oval LED, Rectangular LED
