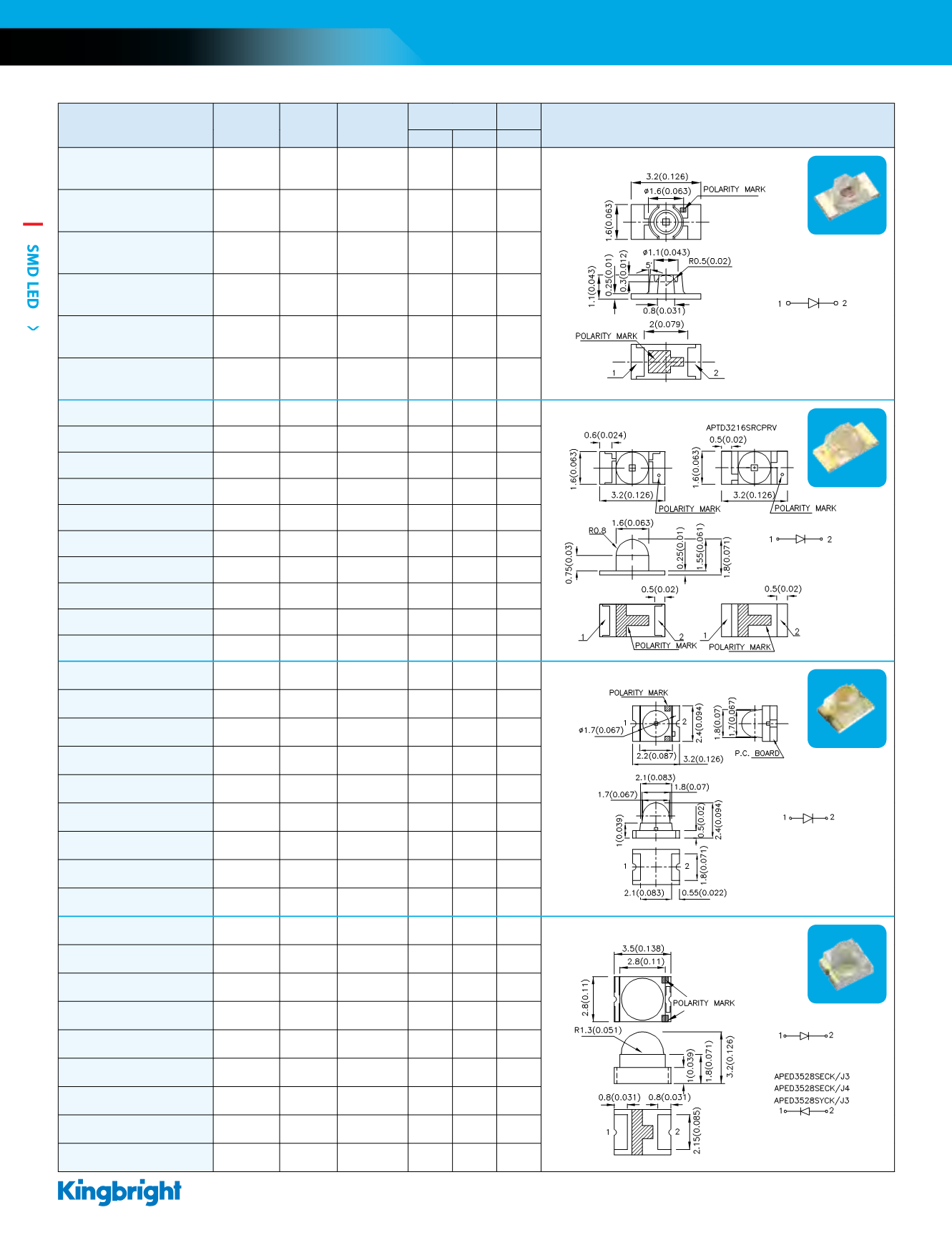

2016-2017 Kingbright Catalog - page 12

10
SMD LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APTL3216SURCK AlGaInP n 630 Water Clear 120 230 70°
3.2mm x 1.6mm x 1.1mm (1206)
APTL3216SECK AlGaInP n 601 Water Clear 200 350 70°
APTL3216SYCK AlGaInP n 590 Water Clear 200 350 70°
APTL3216CGCK AlGaInP n 570 Water Clear 55 100 70°
APTL3216ZGCK InGaN n 525 Water Clear 500 1000 70°
APTL3216QBC/D InGaN n 465 Water Clear 80 250 70°
APTD3216EC GaAsP/GaP n 617 Water Clear 20 50 35° 3.2mm x 1.6mm x 1.8mm (1206 Dome Lens)
APTD3216SRCPRV GaAlAs n 640 Water Clear 80 150 35°
APTD3216SURCK AlGaInP n 630 Water Clear 300 800 35°
APTD3216SECK AlGaInP n 601 Water Clear 500 1000 35°
APTD3216YC GaAsP/GaP n 588 Water Clear 20 40 35°
APTD3216SYCK AlGaInP n 590 Water Clear 700 800 35°
APTD3216SGC GaP n 568 Water Clear 20 50 35°
APTD3216CGCK AlGaInP n 570 Water Clear 120 300 35°
APTD3216ZGCK InGaN n 525 Water Clear 1300 2100 35°
APTD3216QBC/D InGaN n 465 Water Clear 300 700 35°
APD3224EC-F01 GaAsP/GaP n 617 Water Clear 40 60 20° 3.2mm x 2.4mm x 2.4mm (Dome Lens)
APD3224SURCK-F01 AlGaInP n 630 Water Clear 700 1500 20°
APD3224SECK-F01 AlGaInP n 601 Water Clear 1000 1600 20°
APD3224YC-F01 GaAsP/GaP n 588 Water Clear 20 50 20°
APD3224SYCK-F01 AlGaInP n 590 Water Clear 1000 1300 20°
APD3224SGC-F01 GaP n 568 Water Clear 55 100 20°
APD3224CGCK-F01 AlGaInP n 570 Water Clear 400 600 20°
APD3224ZGCK-F01 InGaN n 525 Water Clear 1900 2900 20°
APD3224QBC/D-F01 InGaN n 465 Water Clear 400 800 20°
APED3528SURCK-F01 AlGaInP n 630 Water Clear 120 250 40° 3.5mm x 2.8mm x 3.2mm (Dome Lens)
APED3528SECK/J3 AlGaInP n 625 Water Clear 1000 1800 40°
APED3528SECK/J4 AlGaInP n 605 Water Clear 1000 1700 40°
APED3528SYCK-F01 AlGaInP n 590 Water Clear 300 500 40°
APED3528SYCK/J3 AlGaInP n 590 Water Clear 700 1300 40°
APED3528CGCK-F01 AlGaInP n 570 Water Clear 80 200 40°
APED3528ZGCK-F01 InGaN n 525 Water Clear 1000 1500 40°
APED3528QBC/D-F01 InGaN n 465 Water Clear 300 400 40°
APED3528VBC/D InGaN n 470 Water Clear 400 550 40°
APTD3216
Units : mm(inch)
Tolerance : ±0.1(0.004)
APTL3216
APED3528
TOP-EMITTING CHIP SMD LED
Units : mm(inch)
Tolerance : ±0.2(0.008)
APD3224
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.2(0.008)
Top-Emitting Chip SMD LED
