SMD LED
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APT2012EC GaAsP/GaP n 617 Water Clear 3 8 120° 2.0mm x 1.25mm x 0.75mm (0805)
APT2012SRCPRV GaAlAs n 640 Water Clear 12 30 120°
APT2012SURCK AlGaInP n 630 Water Clear 40 80 120°
APT2012SECK/J3-PRV AlGaInP n 625 Water Clear 200 350 120°
APT2012SECK/J4-PRV AlGaInP n 605 Water Clear 300 550 120°
APT2012SECK AlGaInP n 601 Water Clear 80 180 120°
APT2012YC GaAsP/GaP n 588 Water Clear 3 8 120°
APT2012SYCK AlGaInP n 590 Water Clear 80 150 120°
APT2012SYCK/J3-PRV AlGaInP n 590 Water Clear 200 320 120°
APT2012SGC GaP n 568 Water Clear 5 12 120°
APT2012CGCK AlGaInP n 570 Water Clear 20 50 120°
APT2012ZGCK InGaN n 525 Water Clear 200 350 120°
APT2012QBC/D InGaN n 465 Water Clear 40 100 120°
APT2012VBC/D InGaN n 470 Water Clear 120 180 120°
APHCM2012SURCK-F01 AlGaInP n 630 Water Clear 40 80 110°
2.0mm x 1.25mm x 0.4mm (0805)
APHCM2012SECK-F01 AlGaInP n 601 Water Clear 80 180 110°
APHCM2012SYCK-F01 AlGaInP n 590 Water Clear 80 150 110°
APHCM2012CGCK-F01 AlGaInP n 570 Water Clear 20 50 110°
APHCM2012ZGCK-F01 InGaN n 525 Water Clear 200 350 110°
APHCM2012QBC/D-F01 InGaN n 465 Water Clear 40 100 110°
APL3015EC-F01 GaAsP/GaP n 617 Water Clear 5 12 70° 3.0mm x 1.5mm x 1.4mm (1106)
APL3015SRCPRV-F01 GaAlAs n 640 Water Clear 20 50 70°
APL3015SURCK-F01 AlGaInP n 630 Water Clear 120 180 70°
APL3015SECK-F01 AlGaInP n 601 Water Clear 120 350 70°
APL3015SYCK-F01 AlGaInP n 590 Water Clear 200 350 70°
APL3015SGC-F01 GaP n 568 Water Clear 8 18 70°
APL3015CGCK-F01 AlGaInP n 570 Water Clear 55 120 70°
APL3015ZGCK-F01 InGaN n 525 Water Clear 500 700 70°
APL3015QBC/D-F01 InGaN n 465 Water Clear 120 200 70°
APT3216EC GaAsP/GaP n 617 Water Clear 3 8 120° 3.2mm x 1.6mm x 0.75mm (1206)
APT3216SRCPRV GaAlAs n 640 Water Clear 12 30 120°
APT3216SURCK AlGaInP n 630 Water Clear 40 80 120°
APT3216SECK/J3-PRV AlGaInP n 625 Water Clear 200 350 120°
APT3216SECK/J4-PRV AlGaInP n 605 Water Clear 300 550 120°
APT3216SECK AlGaInP n 601 Water Clear 80 180 120°
APT3216YC GaAsP/GaP n 588 Water Clear 3 8 120°
APT3216SYCK AlGaInP n 590 Water Clear 80 150 120°
APT3216SYCK/J3-PRV AlGaInP n 590 Water Clear 200 320 120°
APT3216SGC GaP n 568 Water Clear 5 12 120°
APT3216CGCK AlGaInP n 570 Water Clear 20 50 120°
APT3216ZGCK InGaN n 525 Water Clear 200 350 120°
APT3216QBC/D InGaN n 465 Water Clear 40 100 120°
APT3216VBC/D InGaN n 470 Water Clear 120 180 120°

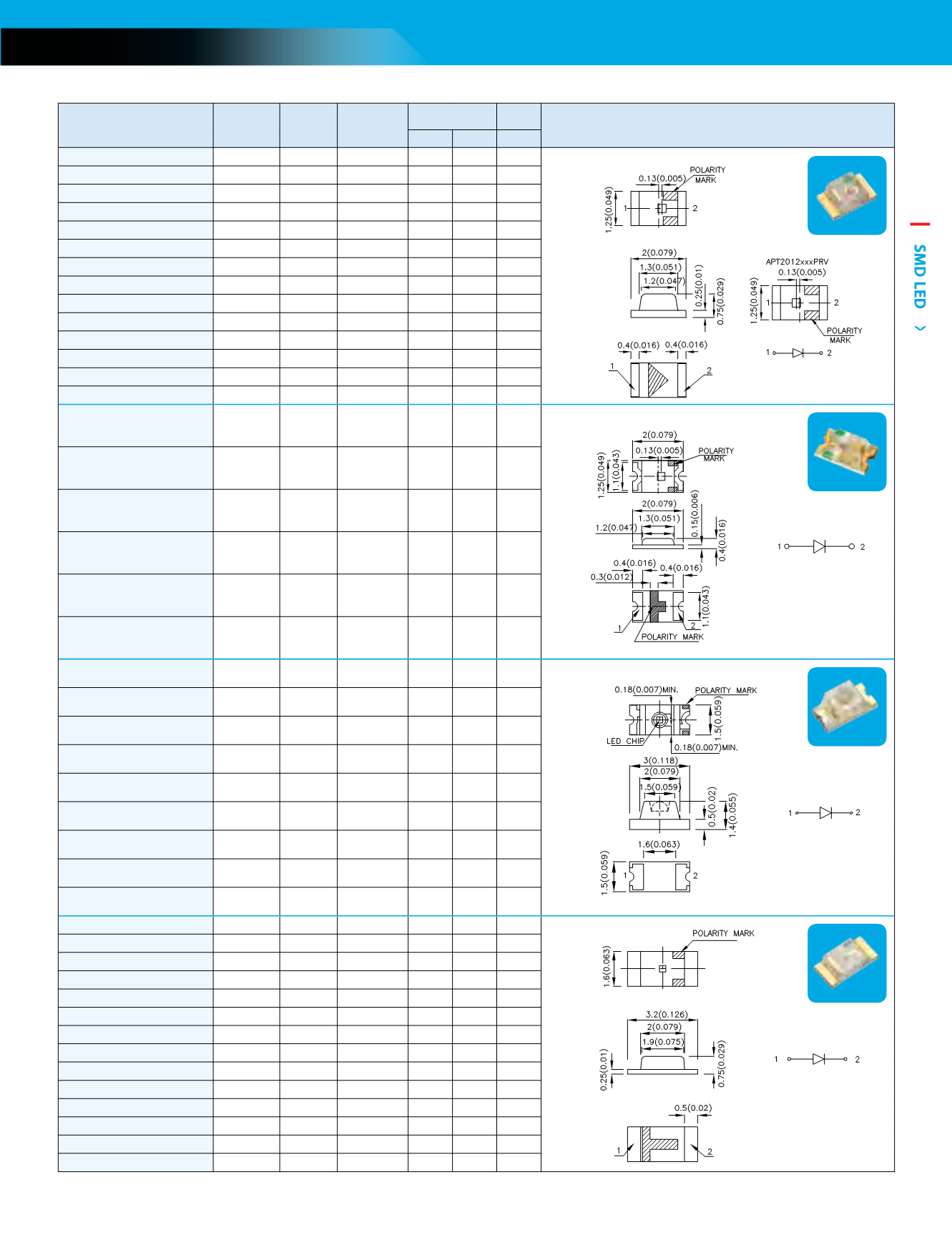

TOP-EMITTING CHIP SMD LED
APT2012
Units : mm(inch)
Tolerance : ±0.1(0.004)
APHCM2012
APL3015
APT3216
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.2(0.008)
Units : mm(inch)
Tolerance : ±0.2(0.008)
Top-Emitting Chip SMD LED
