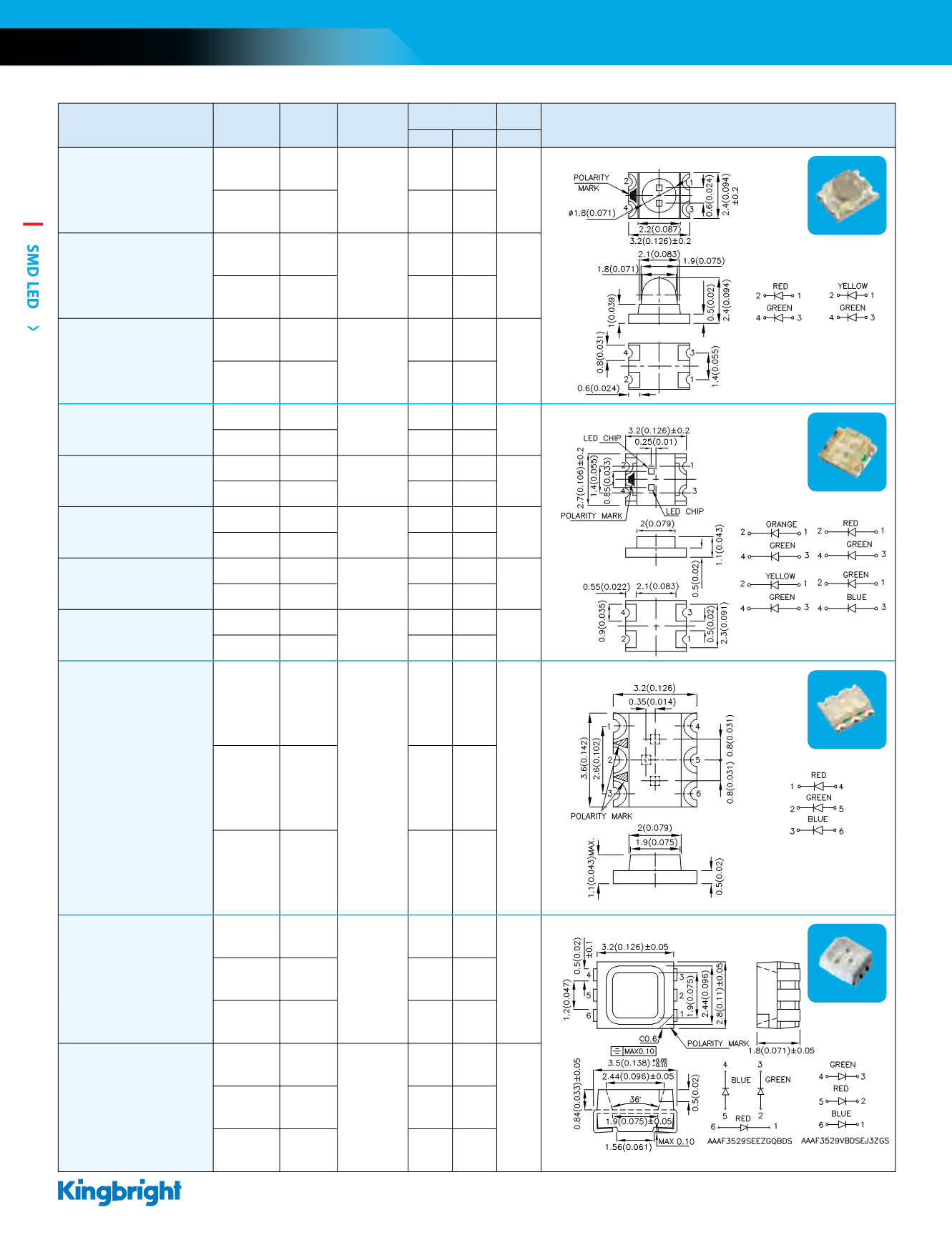

2016-2017 Kingbright Catalog - page 18

16
SMD LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APBD3224ESGC-F01
GaAsP/GaP n 617
Water Clear
12 40
20°
3.2mm x 2.4mm x 2.4mm (Dome Lens)
GaP n 568 20 55
APBD3224SURKCGKC-F01
AlGaInP n 630
Water Clear
120 400
20°
AlGaInP n 570 80 280
APBD3224SYKCGKC-F01
AlGaInP n 590
Water Clear
400 800
20°
AlGaInP n 570 80 280
APB3227SEKCGKC
AlGaInP n 601
Water Clear
80 180
100°
3.2mm x 2.7mm x 1.1mm (Bi-Color)
AlGaInP n 570 20 55
APB3227SURKCGKC
AlGaInP n 630
Water Clear
40 80
100°
AlGaInP n 570 20 55
APB3227SURKZGKC
AlGaInP n 630
Water Clear
40 80
100°
InGaN n 525 200 350
APB3227SYKCGKC
AlGaInP n 590
Water Clear
80 150
100°
AlGaInP n 570 20 55
APB3227ZGKQBDC
InGaN n 525
Water Clear
200 350
100°
InGaN n 465 55 100
APF3236SEEZGQBDC
AlGaInP n 621
Water Clear
80 140
120°
3.2mm x 3.6mm x 1.1mm (Full Color)
InGaN n 525 200 330
InGaN n 465 40 70
AAAF3529SEEZGQBDS
AlGaInP n 621
Water Clear
80 180
120°
3.5mm x 2.8mm x 1.8mm (Full Color)
InGaN n 525 400 580
InGaN n 465 80 130
AAAF3529VBDSEJ3ZGS
InGaN n 470
Water Clear
200 300
120° AlGaInP n 625 400 560
InGaN n 525 400 580
MULTI-COLOR SMD LED
Units : mm(inch)
Tolerance : ±0.1(0.004)
APBD3224
Units : mm(inch)
Tolerance : ±0.2(0.008)
APF3236
Units : mm(inch)
Tolerance : ±0.2(0.008)
AAAF3529
Units : mm(inch)
Tolerance : ±0.1(0.004)
APB3227
Multi-Color SMD LED
