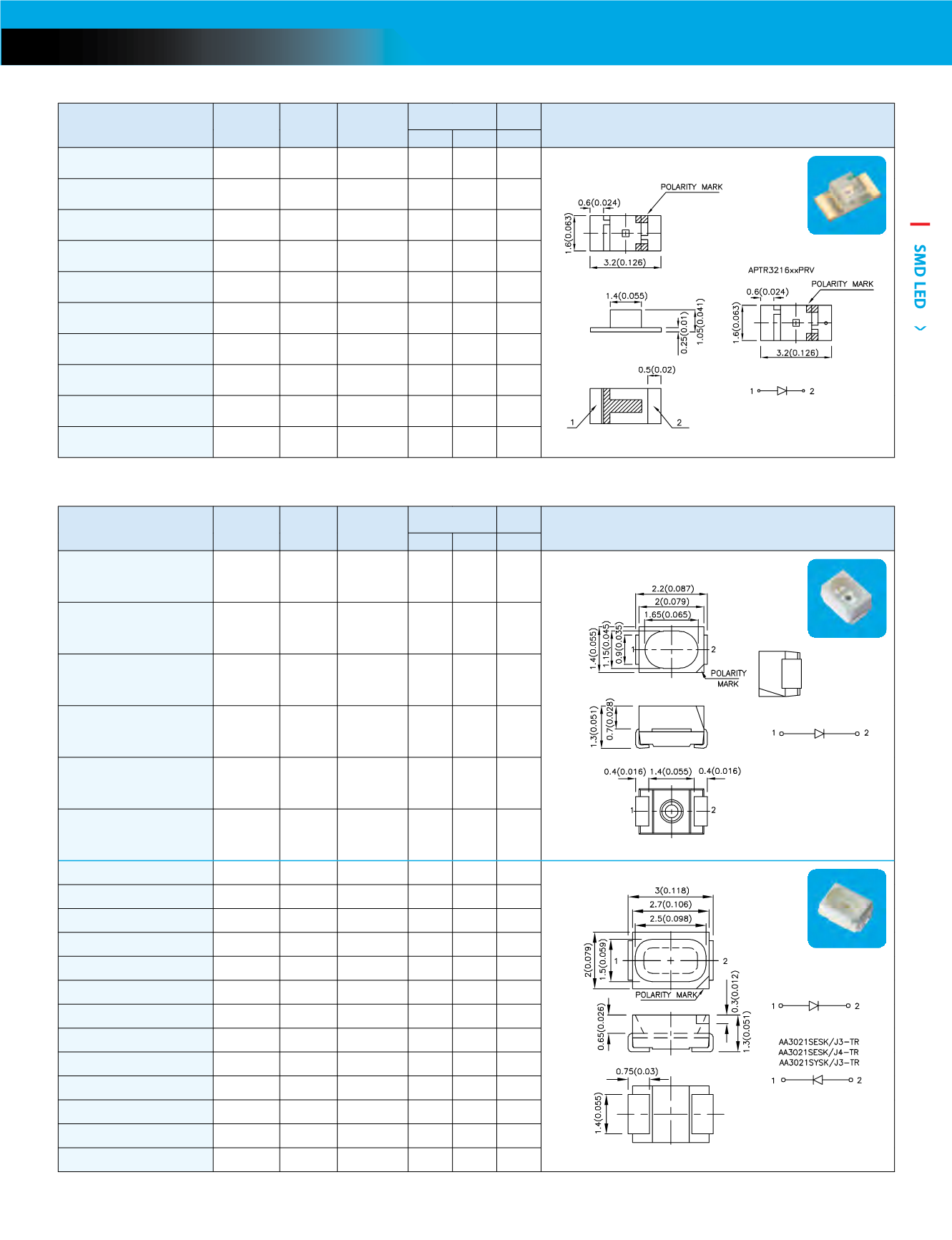

2016-2017 Kingbright Catalog - page 19

17
SMD LED
www.KingbrightUSA.com
Part Number Material λD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2θ 1/2
AA2214SURSK AlGaInP  630 Water Clear 55 100 120°
2.2mm x 1.4mm x 1.3mm
AA2214SESK AlGaInP  601 Water Clear 80 180 120°
AA2214SYSK AlGaInP  590 Water Clear 120 250 120°
AA2214CGSK AlGaInP  570 Water Clear 40 70 120°
AA2214ZGSK InGaN  525 Water Clear 400 650 120°
AA2214QBS/D InGaN  465 Water Clear 80 150 120°
AA3021ES GaAsP/GaP  617 Water Clear 8 18 125° 3.0mm x 2.0mm x 1.3mm
AA3021SURSK AlGaInP  630 Water Clear 40 90 125°
AA3021SESK/J3-TR AlGaInP  625 Water Clear 300 450 125°
AA3021SESK/J4-TR AlGaInP  605 Water Clear 400 700 125°
AA3021SESK AlGaInP  601 Water Clear 120 300 125°
AA3021YS GaAsP/GaP  588 Water Clear 8 15 125°
AA3021SYSK AlGaInP  590 Water Clear 120 200 125°
AA3021SYSK/J3-TR AlGaInP  590 Water Clear 300 500 125°
AA3021SGS GaP  568 Water Clear 12 20 125°
AA3021CGSK AlGaInP  570 Water Clear 40 80 125°
AA3021ZGSK InGaN  525 Water Clear 400 700 125°
AA3021QBS/D InGaN  465 Water Clear 80 120 125°
AA3021VBS/D InGaN  470 Water Clear 200 450 125°
REVERSE MOUNT SMD LED
Part Number Material λD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2θ 1/2
APTR3216EC GaAsP/GaP  617 Water Clear 3 8 120° 3.2mm x 1.6mm x 1.05mm (1206 Reverse Mount)
APTR3216SRCPRV GaAlAs  640 Water Clear 12 30 120°
APTR3216SURCK AlGaInP  630 Water Clear 40 80 120°
APTR3216SECK AlGaInP  601 Water Clear 80 180 120°
APTR3216YC GaAsP/GaP  588 Water Clear 3 8 120°
APTR3216SYCK AlGaInP  590 Water Clear 80 150 120°
APTR3216SGC GaP  568 Water Clear 5 12 120°
APTR3216CGCK AlGaInP  570 Water Clear 20 50 120°
APTR3216ZGCK InGaN  525 Water Clear 200 350 120°
APTR3216QBC/D InGaN  465 Water Clear 40 100 120° Units : mm(inch)
Tolerance : ±0.2(0.008)
TOP-EMITTING PLCC SMD LED
Units : mm(inch)
Tolerance : ±0.2(0.008)
Units : mm(inch)
Tolerance : ±0.2(0.008)
AA2214
AA3021
APTR3216
Reverse Mount SMD LED, Top-Emitting PLCC SMD LED
