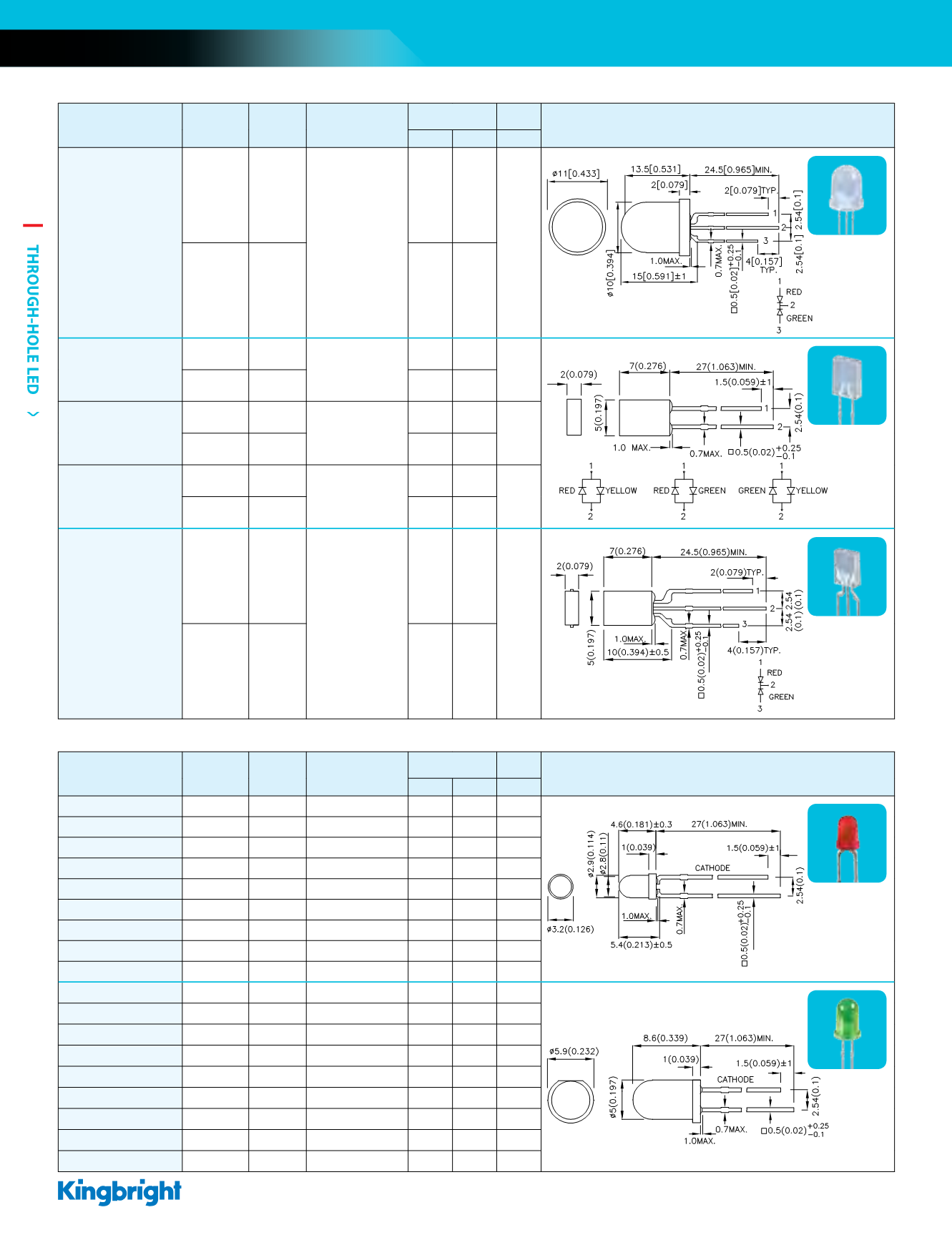

2016-2017 Kingbright Catalog - page 30

THROUGH-HOLE LED
28
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP819EGW
GaAsP/GaP n 617
White Diffused
30 60
50°
10mm Round
GaP n 568 15 50
WP117EYWT
GaAsP/GaP n 617
White Diffused
1.2 4
110°
2mm x 5mm Rectangular
GaAsP/GaP n 588 2 4
WP117EGWT
GaAsP/GaP n 617
White Diffused
1.2 4
110°
GaP n 568 2 6
WP117GYWT
GaP n 568
White Diffused
2 6
110°
GaAsP/GaP n 588 2 4
WP119EGWT
GaAsP/GaP n 617
White Diffused
4 10
110°
2mm x 5mm Rectangular
GaP n 568 3 9
MULTI-COLOR LED
WP819
WP117
LOW CURRENT LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@2mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP710A10LID GaAsP/GaP n 617 Red Diffused 0.2 0.6 40° T-1 (3mm) Round
WP710A10LSRD GaAlAs n 640 Red Diffused 2 6 40°
WP710A10LSECK/J3 AlGaInP n 625 Water Clear 120 320 34°
WP710A10LSECK/J4 AlGaInP n 605 Water Clear 180 450 34°
WP710A10LSYCK/J3 AlGaInP n 590 Water Clear 120 200 34°
WP710A10LYD GaAsP/GaP n 588 Yellow Diffused 0.7 1.5 40°
WP710A10LGD GaP n 568 Green Diffused 1 2 40°
WP710A10LZGCK InGaN n 525 Water Clear 500 1100 34°
WP710A10LVBC/D InGaN n 470 Water Clear 180 450 20°
WP7113LID GaAsP/GaP n 617 Red Diffused 0.7 2 30° T-1 3/4 (5mm) Round
WP7113LSRD GaAlAs n 640 Red Diffused 4 8 30°
WP7113LSECK/J3 AlGaInP n 625 Water Clear 180 550 20°
WP7113LSECK/J4 AlGaInP n 605 Water Clear 250 550 20°
WP7113LSYCK/J3 AlGaInP n 590 Water Clear 320 800 20°
WP7113LYD GaAsP/GaP n 588 Yellow Diffused 1 3 30°
WP7113LGD GaP n 568 Green Diffused 1.2 3 30°
WP7113LZGCK InGaN n 525 Water Clear 1000 3000 20°
WP7113LVBC/D InGaN n 470 Water Clear 550 1600 20°
WP710A10L
WP7113L
WP119
Multi-color LED, Low current LED
