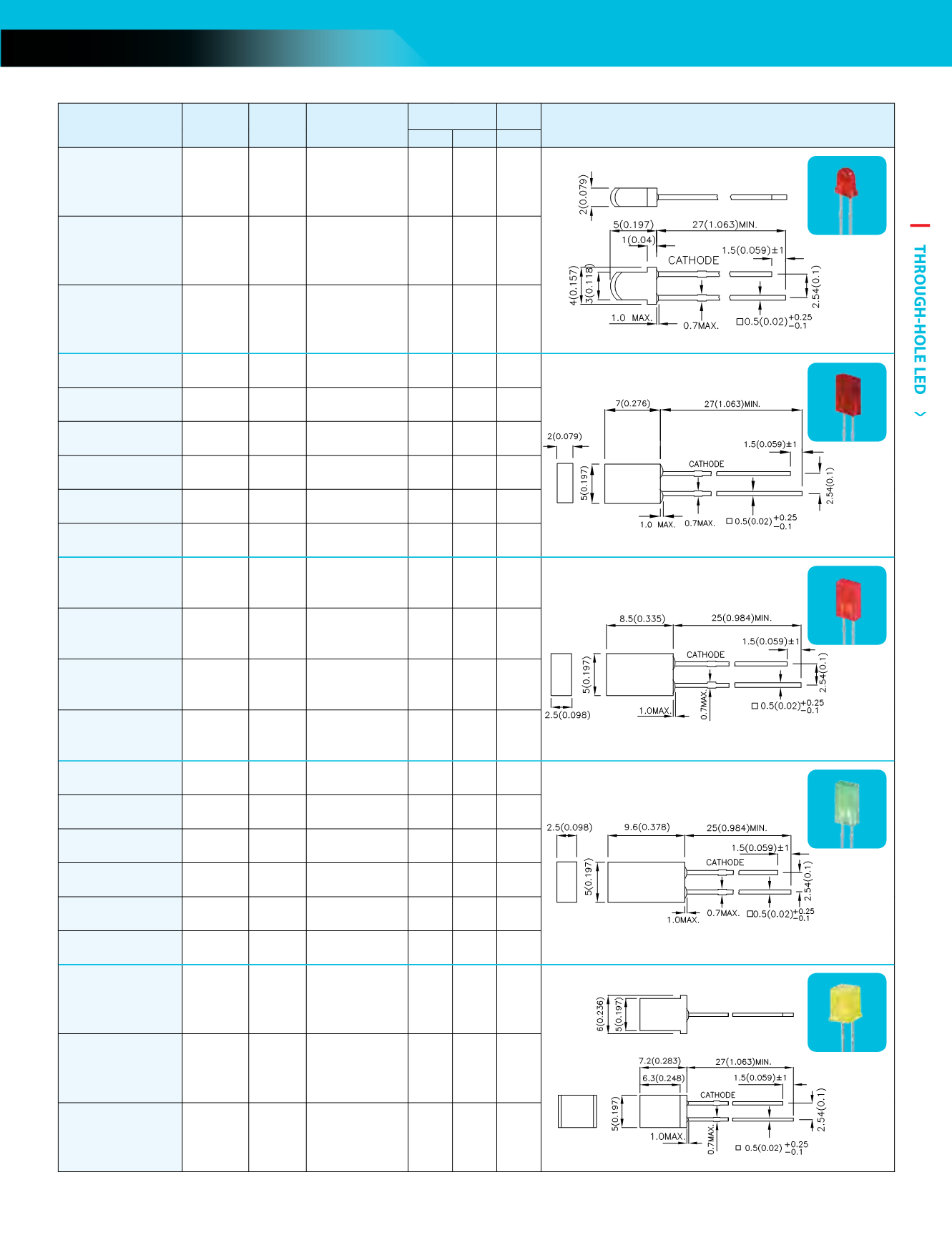

2016-2017 Kingbright Catalog - page 27

THROUGH-HOLE LED
25
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted. www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP169XID GaAsP/GaP n 617 Red Diffused 8 14 60°
2mm x 3mm Rectangular
WP169XYD GaAsP/GaP n 588 Yellow Diffused 5 10 60°
WP169XGD GaP n 568 Green Diffused 8 15 60°
WP113HDT GaP n 635 Red Diffused 0.2 0.6 110° 2mm x 5mm Rectangular
WP113IDT GaAsP/GaP n 617 Red Diffused 2 4 110°
WP113SRDT GaAlAs n 640 Red Diffused *10 *20 110°
WP113EDT GaAsP/GaP n 617 Orange Diffused 2 4 110°
WP113YDT GaAsP/GaP n 588 Yellow Diffused 1.2 4 110°
WP113GDT GaP n 568 Green Diffused 1.2 5 110°
WP513IDT GaAsP/GaP n 617 Red Diffused 1.2 3 110°
2.5mm x 5mm Rectangular
WP513YDT GaAsP/GaP n 588 Yellow Diffused 1.2 3 110°
WP513GDT GaP n 568 Green Diffused 2 5 110°
WP513SGDT GaP n 568 Green Diffused *5 *10 110°
WP383HDT GaP n 635 Red Diffused 0.5 1 110° 2.5mm x 5mm Rectangular
WP383IDT GaAsP/GaP n 617 Red Diffused 1.2 3 110°
WP383SRDT GaAlAs n 640 Red Diffused *12 *25 110°
WP383EDT GaAsP/GaP n 617 Orange Diffused 1.2 3 110°
WP383YDT GaAsP/GaP n 588 Yellow Diffused 1 2 110°
WP383GDT GaP n 568 Green Diffused 1.2 4 110°
WP503IDT GaAsP/GaP n 617 Red Diffused 1 2 110°
5mm x 5mm Square
WP503YDT GaAsP/GaP n 588 Yellow Diffused 1 3 110°
WP503GDT GaP n 568 Green Diffused 1.5 3 110°
WP169X
RECTANGULAR LED
WP113
WP513
WP503
WP383
Rectangular LED
