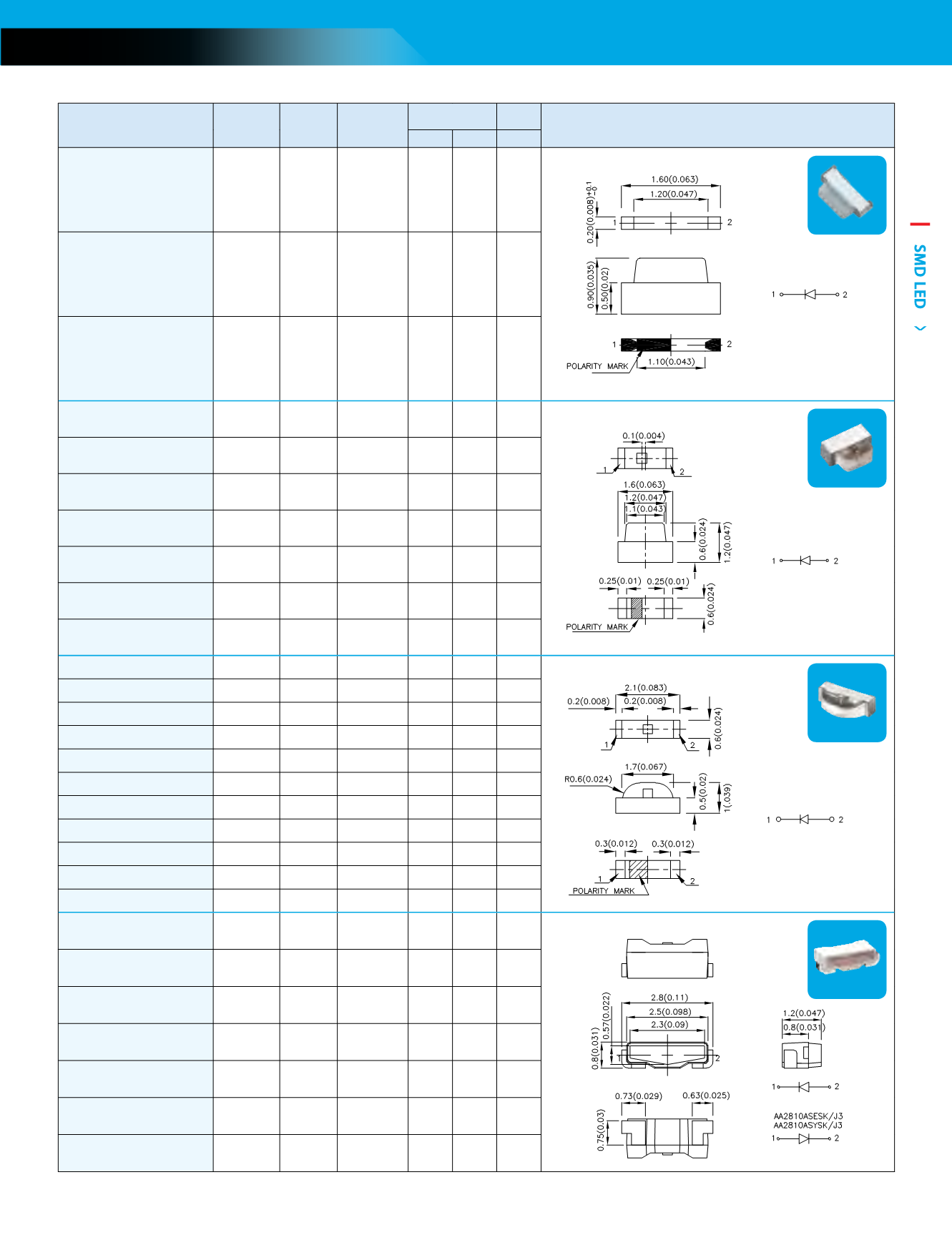

2016-2017 Kingbright Catalog - page 13

11
SMD LED
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APGA1602SEC/E/KA AlGaInP n 624 Water Clear 55 120 150°(H)120°(V)
1.6mm x 0.2mm x 0.9mm (Right Angle)
APGA1602SYC/KA AlGaInP n 589 Water Clear 40 75 160°(H)120°(V)
APGA1602CGC/KA AlGaInP n 571 Water Clear 12 30 160°(H)145°(V)
APA1606SURCK AlGaInP n 630 Water Clear 40 80 110° 1.6mm x 0.6mm x 1.2mm (0602 Right Angle)
APA1606SECK AlGaInP n 601 Water Clear 80 180 110°
APA1606SYCK AlGaInP n 590 Water Clear 80 150 110°
APA1606SGC GaP n 568 Water Clear 5 12 110°
APA1606CGCK AlGaInP n 570 Water Clear 20 50 110°
APA1606ZGCK InGaN n 525 Water Clear 200 300 110°
APA1606QBC/D InGaN n 465 Water Clear 40 80 110°
APA2107SRCPRV GaAlAs n 640 Water Clear 12 30 120° 2.1mm x 0.6mm x 1.0mm (0802 Right Angle)
APA2107SURCK AlGaInP n 630 Water Clear 40 80 120°
APA2107SECK/J3-PRV AlGaInP n 625 Water Clear 200 380 120°
APA2107SECK/J4-PRV AlGaInP n 605 Water Clear 400 550 120°
APA2107SECK AlGaInP n 601 Water Clear 80 180 120°
APA2107SYCK AlGaInP n 590 Water Clear 80 150 120°
APA2107SYCK/J3-PRV AlGaInP n 590 Water Clear 200 350 120°
APA2107CGCK AlGaInP n 570 Water Clear 20 50 120°
APA2107ZGCK InGaN n 525 Water Clear 200 300 120°
APA2107QBC/D InGaN n 465 Water Clear 40 80 120°
APA2107VBC/D InGaN n 470 Water Clear 120 200 120°
AA2810ASURSK AlGaInP n 630 Water Clear 40 100 110° 2.8mm x 0.8mm x 1.2mm (Right Angle)
AA2810ASESK/J3 AlGaInP n 625 Water Clear 300 500 110°
AA2810ASESK AlGaInP n 601 Water Clear 120 250 110°
AA2810ASYSK/J3 AlGaInP n 590 Water Clear 300 550 110°
AA2810ACGSK AlGaInP n 570 Water Clear 20 60 110°
AA2810AZGSK InGaN n 525 Water Clear 400 600 110°
AA2810AQBS/D InGaN n 465 Water Clear 80 150 110°
APGA1602
APA1606
APA2107
AA2810A
RIGHT ANGLE SMD LED
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.1(0.004)
Right Angle SMD LED
