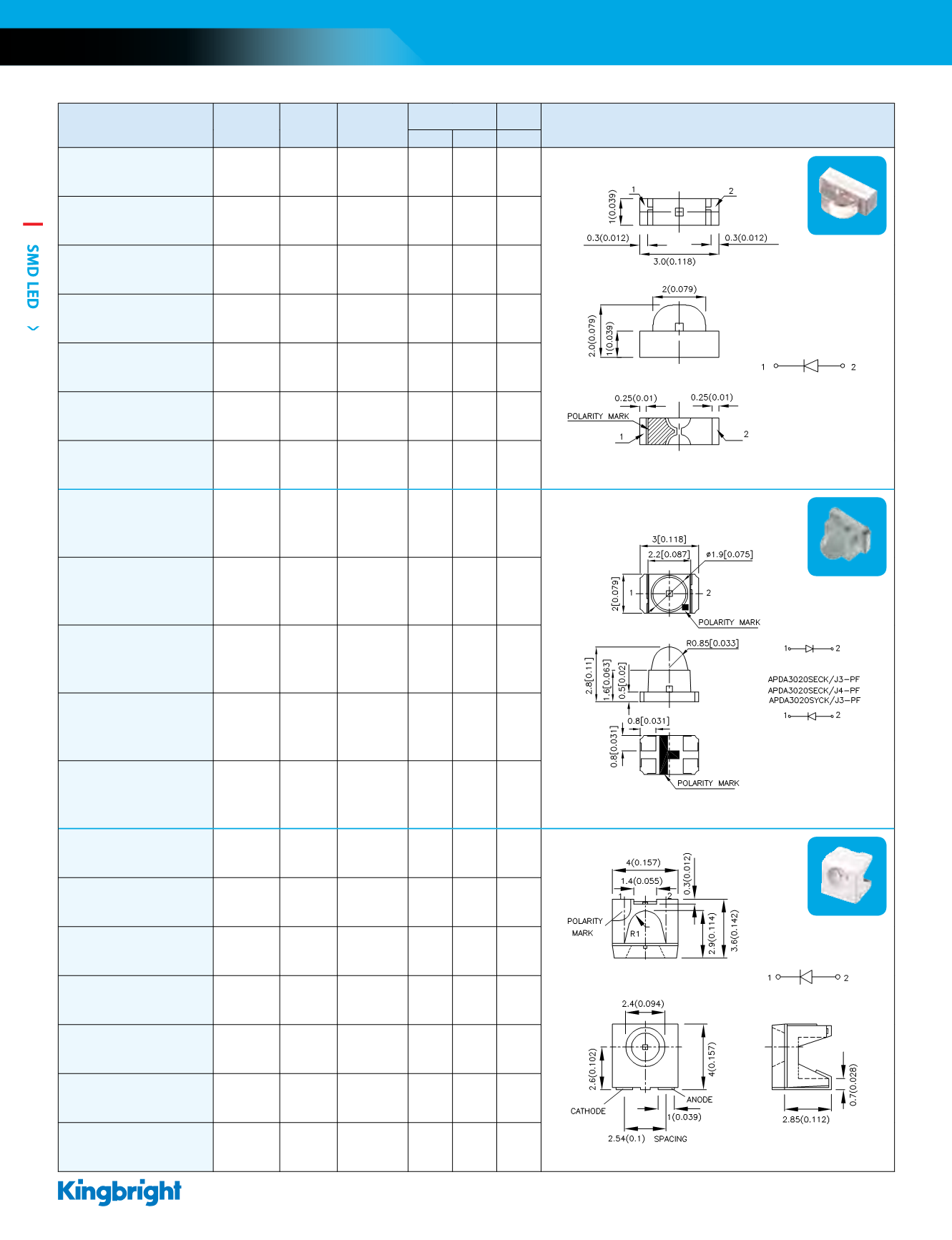

2016-2017 Kingbright Catalog - page 14

12
SMD LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APA3010SRCPRV-GX GaAlAs n 640 Water Clear 12 30 120°
3.0mm x 1.0mm x 2.0mm (1104 Right Angle)
APA3010SURCK-GX AlGaInP n 630 Water Clear 40 80 120°
APA3010SECK-GX AlGaInP n 601 Water Clear 80 180 120°
APA3010SYCK-GX AlGaInP n 590 Water Clear 80 150 120°
APA3010CGCK-GX AlGaInP n 570 Water Clear 20 50 120°
APA3010ZGCK-GX InGaN n 525 Water Clear 200 300 120°
APA3010QBC/D-GX InGaN n 465 Water Clear 40 80 120°
APDA3020SECK/J3-PF AlGaInP n 625 Water Clear 2300 3800 10°
3.0mm x 2.0mm x 2.8mm (1108 Right Angle)
APDA3020SECK/J4-PF AlGaInP n 605 Water Clear 2700 4500 10°
APDA3020SYCK/J3-PF AlGaInP n 590 Water Clear 1900 3000 10°
APDA3020ZGCK InGaN n 525 Water Clear 1000 1400 10°
APDA3020VBC/D InGaN n 470 Water Clear 500 800 10°
AA4040SRS GaAlAs n 640 Water Clear 20 60 120°
4.0mm x 4.0mm x 3.6mm (Right Angle)
AA4040SURSK AlGaInP n 630 Water Clear 80 150 120°
AA4040SESK AlGaInP n 601 Water Clear 80 220 120°
AA4040SYSK AlGaInP n 590 Water Clear 120 250 120°
AA4040CGSK AlGaInP n 570 Water Clear 40 90 120°
AA4040ZGSK InGaN n 525 Water Clear 400 750 120°
AA4040QBS/D InGaN n 465 Water Clear 80 220 120°
APA3010
AA4040
APDA3020
RIGHT ANGLE SMD LED
Units : mm(inch)
Tolerance : ±0.15(0.006)
Units : mm(inch)
Tolerance : ±0.2(0.008)
Units : mm(inch)
Tolerance : ±0.25(0.01)
Right Angle SMD LED
