THROUGH-HOLE LED
23
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted. www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP1503ID GaAsP/GaP n 617 Red Diffused 12 40 60° T-1 3/4 (5mm) Round
WP1503IT GaAsP/GaP n 617 Red Transparent 25 50 30°
WP1503EC GaAsP/GaP n 617 Water Clear 25 50 30°
WP1503SRD GaAlAs n 640 Red Diffused *120 *260 60°
WP1503SRC/D GaAlAs n 640 Water Clear *400 *800 30°
WP1503SRC/J4 AlGaInP n 640 Water Clear *1900 *3000 30°
WP1503YD GaAsP/GaP n 588 Yellow Diffused 15 30 60°
WP1503YT GaAsP/GaP n 588 Yellow Transparent 20 50 30°
WP1503YC GaAsP/GaP n 588 Water Clear 20 50 30°
WP1503GD GaP n 568 Green Diffused 15 30 60°
WP1503GT GaP n 568 Green Transparent 50 100 30°
WP1503GC GaP n 568 Water Clear 50 100 30°
WP1503SGT GaP n 568 Green Transparent *80 *200 30°
WP1503SGC GaP n 568 Water Clear *80 *200 30°
WP63ID GaAsP/GaP n 617 Red Diffused 8 12 60° T-1 3/4 (5mm) Round
WP63IT GaAsP/GaP n 617 Red Transparent 10 30 30°
WP63SRD GaAlAs n 640 Red Diffused *50 *100 60°
WP63SRT GaAlAs n 640 Red Transparent *120 *250 30°
WP63SRC GaAlAs n 640 Water Clear *120 *250 30°
WP63YD GaAsP/GaP n 588 Yellow Diffused 5 10 60°
WP63YT GaAsP/GaP n 588 Yellow Transparent 20 70 30°
WP63GD GaP n 568 Green Diffused 8 16 60°
WP63GT GaP n 568 Green Transparent 30 80 30°
WP7143SRC/D GaAlAs n 640 Water Clear *300 *600 30°
T-1 3/4 (5mm) Round
WP7143SURC/E AlGaInP n 630 Water Clear *600 *1000 30°
WP7143SGC GaP n 568 Water Clear *120 *300 30°
WP7083SEDK/J3 AlGaInP n 625 Orange Diffused *500 *1100 60°
T-1 3/4 (5mm) Round
WP7083SYDK/J3 AlGaInP n 590 Yellow Diffused *400 *900 60°
WP7083ZGD/G InGaN n 525 Green Diffused *1400 *2200 60°
WP7083QBD/G InGaN n 465 Blue Diffused *180 *360 60°
WP793ID GaAsP/GaP n 617 Red Diffused *30 *60 30° 8mm Round
WP793SRC/D GaAlAs n 640 Water Clear *500 *800 15°
WP793SRD/D GaAlAs n 640 Red Diffused *60 *140 30°
WP793SRD/E GaAlAs n 640 Red Diffused *140 *180 30°
WP793SRC/J4 AlGaInP n 640 Water Clear *1300 *2000 15°
WP793SRD/J4 AlGaInP n 640 Red Diffused *300 *600 30°
WP793YD GaAsP/GaP n 588 Yellow Diffused *20 *50 30°
WP793GD GaP n 568 Green Diffused *30 *60 30°

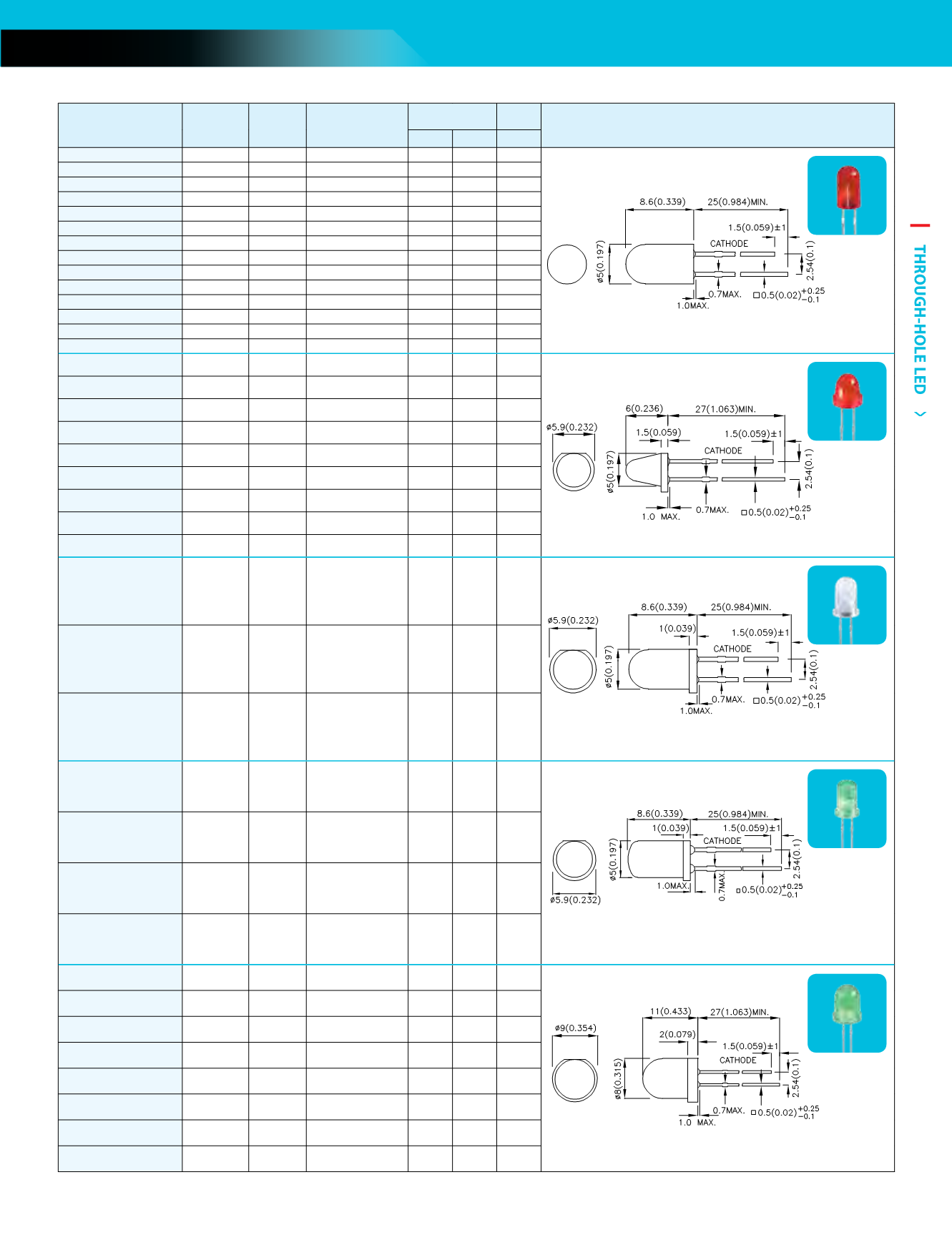

WP1503
