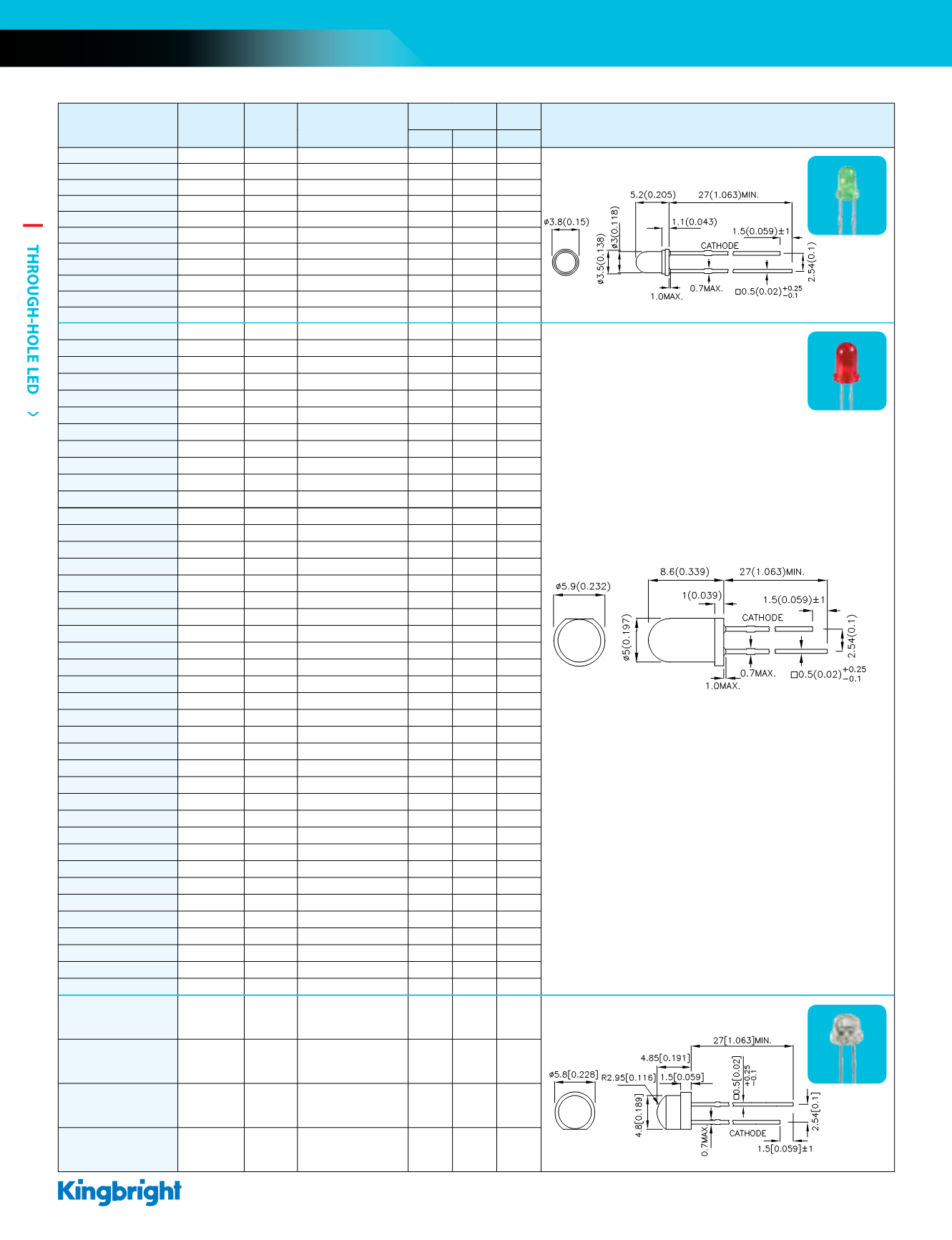

2016-2017 Kingbright Catalog - page 24

THROUGH-HOLE LED
22
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
ROUND LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP132XID GaAsP/GaP n 617 Red Diffused 8 16 60° T-1 (3mm) Round
WP132XIT GaAsP/GaP n 617 Red Transparent 10 20 50°
WP132XND GaAsP/GaP n 602 Orange Diffused 8 16 60°
WP132XNT GaAsP/GaP n 602 Orange Transparent 10 20 50°
WP132XNC GaAsP/GaP n 602 Water Clear 10 20 50°
WP132XYD GaAsP/GaP n 588 Yellow Diffused 6 15 60°
WP132XYT GaAsP/GaP n 588 Yellow Transparent 10 20 50°
WP132XYC GaAsP/GaP n 588 Water Clear 10 20 50°
WP132XGD GaP n 568 Green Diffused 15 25 60°
WP132XGT GaP n 568 Green Transparent 20 40 50°
WP132XGC GaP n 568 Water Clear 20 40 50°
WP7113ID GaAsP/GaP n 617 Red Diffused 18 40 30° T-1 3/4 (5mm) Round
WP7113IT GaAsP/GaP n 617 Red Transparent 40 100 20°
WP7113EC GaAsP/GaP n 617 Water Clear 40 100 20°
WP7113ND GaAsP/GaP n 602 Orange Diffused 12 30 30°
WP7113NC GaAsP/GaP n 602 Water Clear 30 70 20°
WP7113YD GaAsP/GaP n 588 Yellow Diffused 10 25 30°
WP7113YT GaAsP/GaP n 588 Yellow Transparent 30 80 20°
WP7113YC GaAsP/GaP n 588 Water Clear 30 80 20°
WP7113GD GaP n 568 Green Diffused 15 30 30°
WP7113GT GaP n 568 Green Transparent 25 80 20°
WP7113GC GaP n 568 Water Clear 25 80 20°
WP7113SRC/DU GaAlAs n 640 Water Clear *300 *500 20°
WP7113SRC/DV GaAlAs n 640 Water Clear *400 *600 20°
WP7113SRC/DW GaAlAs n 640 Water Clear *500 *700 20°
WP7113SRC/J4 AlGaInP n 640 Water Clear *900 *1800 20°
WP7113SRD/D GaAlAs n 640 Red Diffused *120 *210 30°
WP7113SRD/E GaAlAs n 640 Red Diffused *180 *250 30°
WP7113SRD/F GaAlAs n 640 Red Diffused *200 *300 30°
WP7113SRD/J4 AlGaInP n 640 Red Diffused *300 *600 30°
WP7113SURC AlGaInP n 630 Water Clear *1000 *1400 20°
WP7113SURC/E AlGaInP n 630 Water Clear *1100 *1500 20°
WP7113SEC/J3 AlGaInP n 625 Water Clear *5000 *8000 20°
WP7113SECK/J3 AlGaInP n 625 Water Clear *3600 *6000 20°
WP7113SEC/E AlGaInP n 621 Water Clear *1500 *2300 20°
WP7113SECK/J4 AlGaInP n 605 Water Clear *4500 *7000 20°
WP7113SED AlGaInP n 601 Orange Diffused *600 *1000 30°
WP7113SET AlGaInP n 601 Orange Transparent *1400 *2200 20°
WP7113SEC AlGaInP n 601 Water Clear *1400 *2200 20°
WP7113SYD AlGaInP n 590 Yellow Diffused *650 *1200 30°
WP7113SYT AlGaInP n 590 Yellow Transparent *1900 *3100 20°
WP7113SYC AlGaInP n 590 Water Clear *1900 *3100 20°
WP7113SYC/J3 AlGaInP n 590 Water Clear *4200 *6000 20°
WP7113SYCK/J3 AlGaInP n 590 Water Clear *4000 *6000 20°
WP7113SGD GaP n 568 Green Diffused *18 *40 30°
WP7113SGC GaP n 568 Water Clear *120 *240 20°
WP7113CGCK AlGaInP n 570 Water Clear *400 *700 20°
WP7113ZGCK InGaN n 525 Water Clear *7000 *12000 20°
WP7113ZGC/G InGaN n 525 Water Clear *12000 *19000 20°
WP7113QBC/D InGaN n 465 Water Clear *1700 *2700 16°
WP7113VBC/D InGaN n 470 Water Clear *3500 *6000 20°
WP9294SECK/J3 AlGaInP n 625 Water Clear *300 *600 130°
5mm Round
WP9294SYCK/J3 AlGaInP n 590 Water Clear *300 *600 130°
WP9294ZGC/G InGaN n 525 Water Clear *1900 *2600 60°
WP9294QBC/G InGaN n 465 Water Clear *400 *700 60°
WP132X
WP7113
WP9294
Round LED
