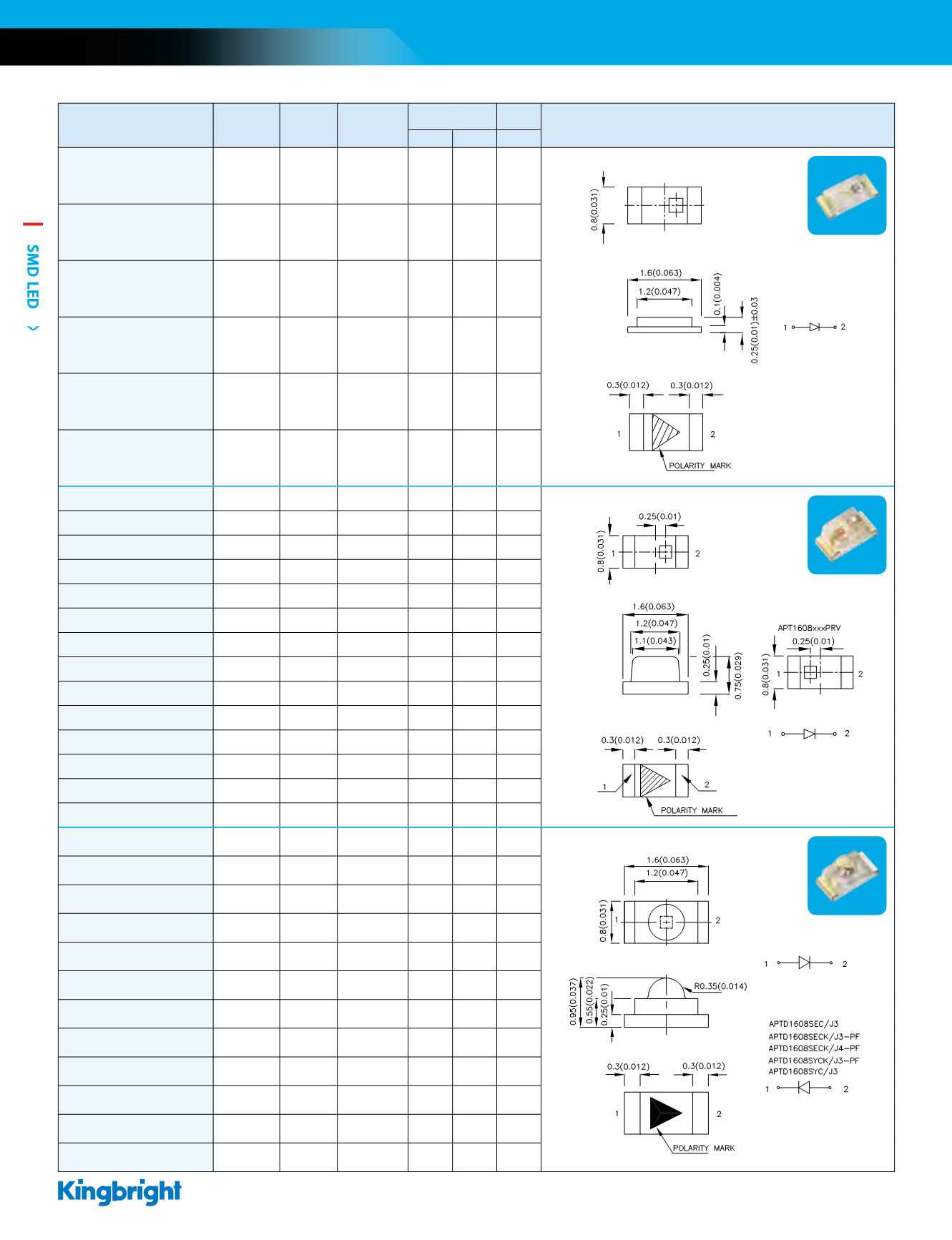

2016-2017 Kingbright Catalog - page 10

08
SMD LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APG1608SURKC/T AlGaInP n 630 Water Clear 55 110 120°
1.6mm x 0.8mm x 0.25mm (0603)
APG1608SEKC/T AlGaInP n 601 Water Clear 55 100 120°
APG1608SYKC/T AlGaInP n 590 Water Clear 55 120 120°
APG1608CGKC/T AlGaInP n 570 Water Clear 20 50 120°
APG1608ZGCK InGaN n 525 Water Clear 200 350 120°
APG1608QBC/D InGaN n 465 Water Clear 40 100 120°
APT1608EC GaAsP/GaP n 617 Water Clear 3 8 120° 1.6mm x 0.8mm x 0.75mm (0603)
APT1608SRCPRV GaAlAs n 640 Water Clear 12 30 120°
APT1608SURCK AlGaInP n 630 Water Clear 40 80 120°
APT1608SECK/J3-PRV AlGaInP n 625 Water Clear 200 350 120°
APT1608SECK/J4-PRV AlGaInP n 605 Water Clear 300 550 120°
APT1608SECK AlGaInP n 601 Water Clear 80 180 120°
APT1608YC GaAsP/GaP n 588 Water Clear 3 8 120°
APT1608SYCK AlGaInP n 590 Water Clear 80 150 120°
APT1608SYCK/J3-PRV AlGaInP n 590 Water Clear 200 320 120°
APT1608SGC GaP n 568 Water Clear 5 12 120°
APT1608CGCK AlGaInP n 570 Water Clear 20 50 120°
APT1608ZGCK InGaN n 525 Water Clear 200 350 120°
APT1608QBC/D InGaN n 465 Water Clear 40 100 120°
APT1608VBC/D InGaN n 470 Water Clear 120 180 120°
APTD1608SURCK AlGaInP n 630 Water Clear 80 250 60° 1.6mm x 0.8mm x 0.95mm (0603 Dome Lens)
APTD1608SEC/J3 AlGaInP n 625 Water Clear 500 900 60°
APTD1608SECK/J3-PF AlGaInP n 625 Water Clear 500 800 60°
APTD1608SECK/J4-PF AlGaInP n 605 Water Clear 1000 1600 60°
APTD1608SECK AlGaInP n 601 Water Clear 200 500 60°
APTD1608SYCK AlGaInP n 590 Water Clear 200 450 60°
APTD1608SYCK/J3-PF AlGaInP n 590 Water Clear 400 800 60°
APTD1608SYC/J3 AlGaInP n 590 Water Clear 500 900 60°
APTD1608CGCK AlGaInP n 570 Water Clear 80 190 60°
APTD1608ZGCK InGaN n 525 Water Clear 500 900 60°
APTD1608QBC/D InGaN n 465 Water Clear 80 200 40°
APTD1608VBC/D InGaN n 470 Water Clear 200 350 40°
TOP-EMITTING CHIP SMD LED
APT1608
Units : mm(inch)
Tolerance : ±0.1(0.004)
APTD1608
APG1608
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.15(0.006)
Top-Emitting Chip SMD LED
