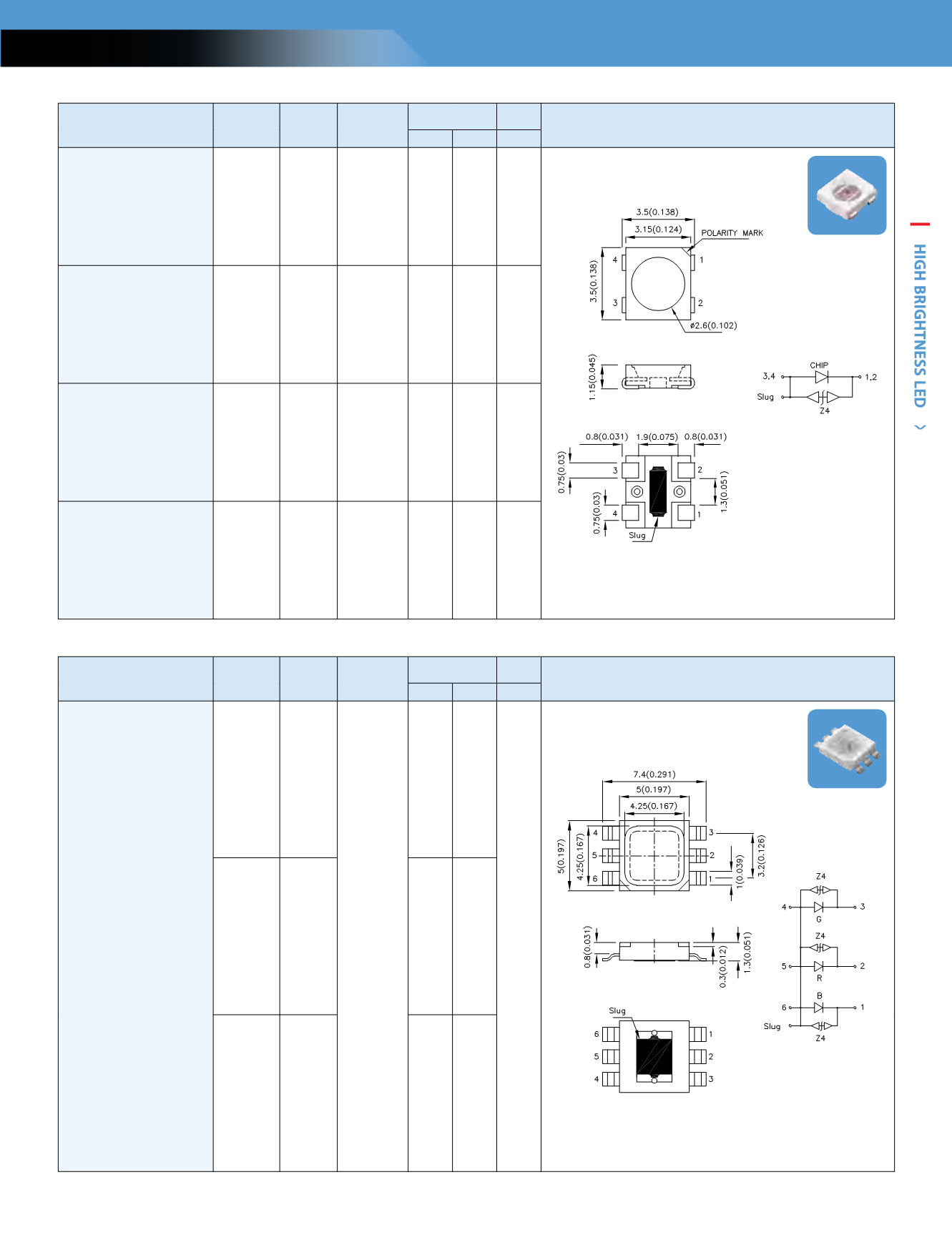

2016-2017 Kingbright Catalog - page 5

HIGH BRIGHTNESS LED
03
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Φv (lm)
@150mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
AA3535SEL1Z1S AlGaInP n 618 Water Clear 8.6 11 120°
3.5mm x 3.5mm x 1.15mm
AA3535SYL1Z1S AlGaInP n 590 Water Clear 8.6 12 120°
AA3535ZG25Z1S InGaN n 525 Water Clear 14 20 120°
AA3535QB25Z1S InGaN n 450 Water Clear 2.4 3.5 120°
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@150mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
AAAF5051-04
InGaN n 460
Water Clear
1000 1500
120°
5.0mm x 5.0mm x 1.3mm
AlGaInP n 624 2700 3200
InGaN n 525 5000 6300
0.5W HIGH BRIGHTNESS LED
Units : mm(inch)
Tolerance : ±0.25(0.01)
1.5W HIGH BRIGHTNESS LED
Units : mm(inch)
Tolerance : ±0.15(0.006)
AA3535
AAAF5051-04
0.5-1W High Brightnss LED
