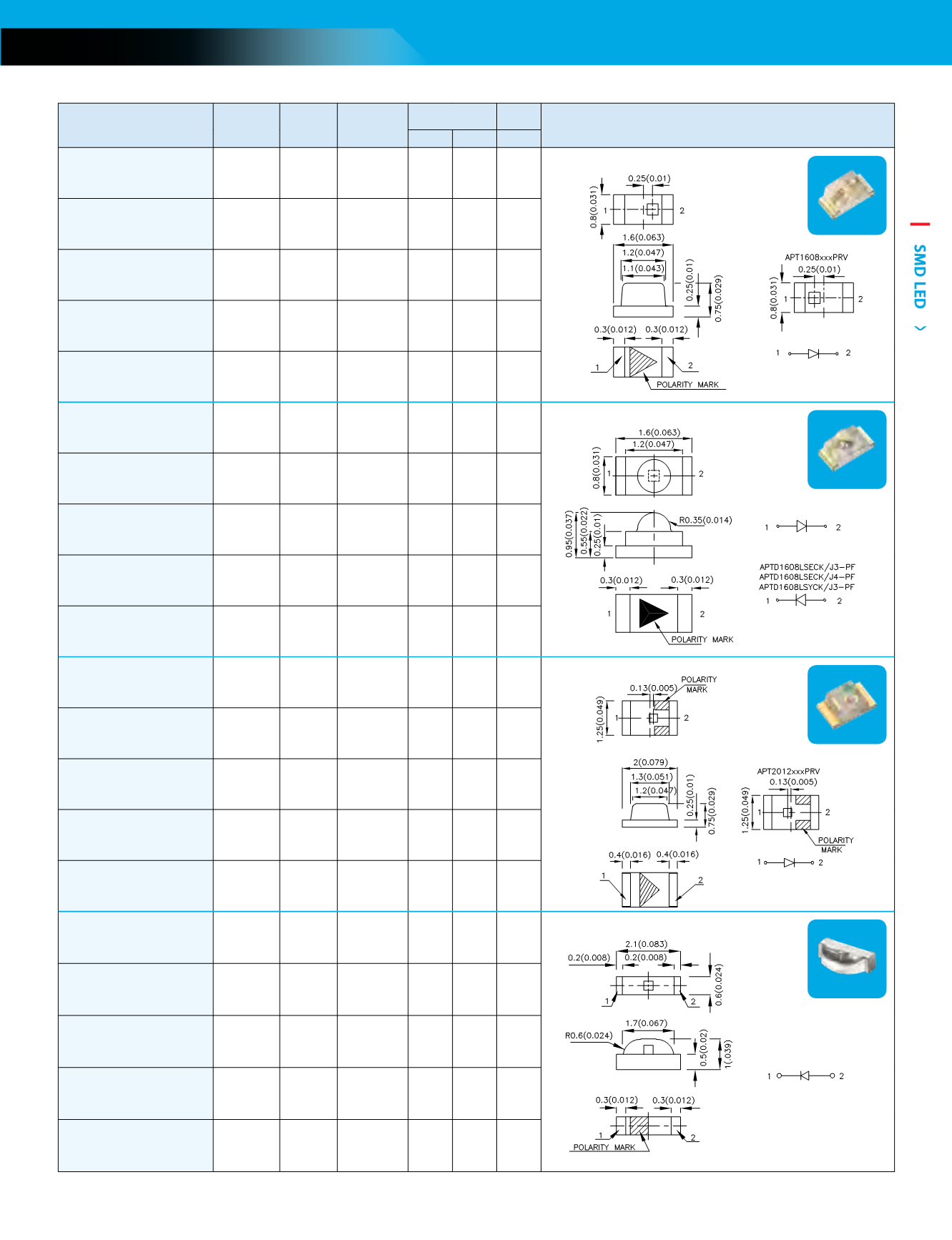

2016-2017 Kingbright Catalog - page 7

05
SMD LED
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@2mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APT1608LSECK/J3-PRV AlGaInP n 625 Water Clear 20 40 120°
1.6mm x 0.8mm x 0.75mm (0603)
APT1608LSECK/J4-PRV AlGaInP n 605 Water Clear 30 50 120°
APT1608LSYCK/J3-PRV AlGaInP n 590 Water Clear 15 25 120°
APT1608LZGCK InGaN n 525 Water Clear 20 50 120°
APT1608LVBC/D InGaN n 470 Water Clear 15 24 120°
APTD1608LSECK/J3-PF AlGaInP n 625 Water Clear 20 50 60°
1.6mm x 0.8mm x 0.95mm (0603 Dome Lens)
APTD1608LSECK/J4-PF AlGaInP n 605 Water Clear 80 150 60°
APTD1608LSYCK/J3-PF AlGaInP n 590 Water Clear 30 55 60°
APTD1608LZGCK InGaN n 525 Water Clear 50 90 60°
APTD1608LVBC/D InGaN n 470 Water Clear 30 65 40°
APT2012LSECK/J3-PRV AlGaInP n 625 Water Clear 20 40 120°
2.0mm x 1.25mm x 0.75mm (0805)
APT2012LSECK/J4-PRV AlGaInP n 605 Water Clear 30 50 120°
APT2012LSYCK/J3-PRV AlGaInP n 590 Water Clear 15 25 120°
APT2012LZGCK InGaN n 525 Water Clear 20 50 120°
APT2012LVBC/D InGaN n 470 Water Clear 15 24 120°
APA2107LSECK/J3-PRV AlGaInP n 625 Water Clear 15 30 120°
2.1mm x 0.6mm x 1.0mm (0802 Right Angle)
APA2107LSECK/J4-PRV AlGaInP n 605 Water Clear 20 40 120°
APA2107LSYCK/J3-PRV AlGaInP n 590 Water Clear 15 30 120°
APA2107LZGCK InGaN n 525 Water Clear 20 40 120°
APA2107LVBC/D InGaN n 470 Water Clear 10 20 120°
LOW CURRENT LED
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance ±0.15(0.006)
Units : mm(inch)
Tolerance : ±0.1(0.004)
APT1608L
APTD1608L
APA2107L
APT2012L
Units : mm(inch)
Tolerance : ±0.1(0.004)
Low Current LED
