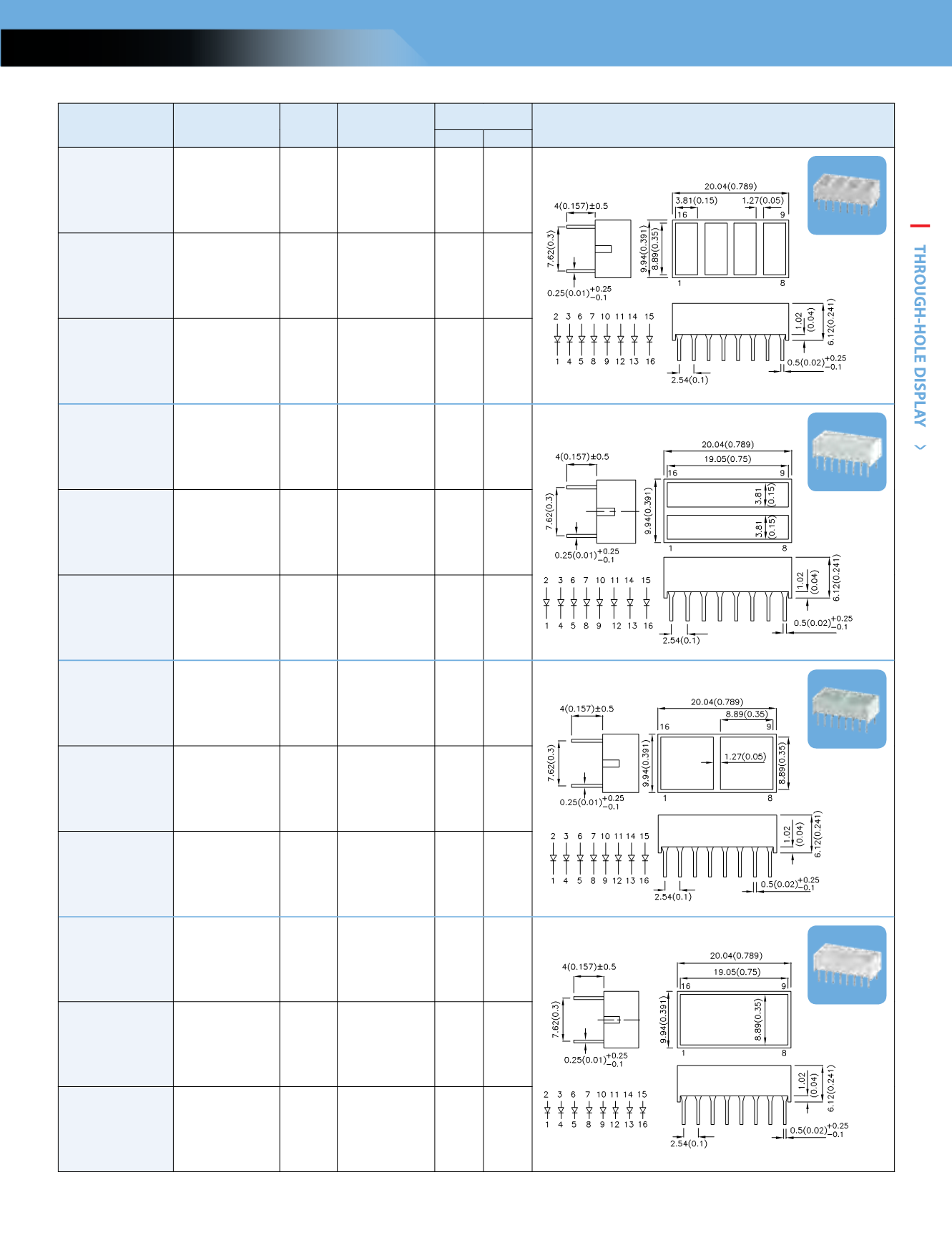

2016-2017 Kingbright Catalog - page 45

43
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
www.KingbrightUSA.com
LIGHT BAR
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA Dimensions
Min. Typ.
KB-E100SURKW AlGaInP n 630 White Diffused 120 240
8.89mm x 3.81mm Size of Light Emitting Areas
KB2720SYKW AlGaInP n 590 White Diffused 300 400
KB2820CGKD AlGaInP n 570 Green Diffused 20 47
KB-F100SURKW AlGaInP n 630 White Diffused 120 230
3.81mm x 19.05mm Size of Light Emitting Areas
KB2735SYKW AlGaInP n 590 White Diffused 120 250
KB2835CGKD AlGaInP n 570 Green Diffused 20 50
KB-G100SURKW AlGaInP n 630 White Diffused 120 210
8.89mm x 8.89mm Size of Light Emitting Areas
KB2770SYKW AlGaInP n 590 White Diffused 80 180
KB2870CGKD AlGaInP n 570 Green Diffused 20 54
KB-H100SURKW AlGaInP n 630 White Diffused 120 230
8.89mm x 19.05mm Size of Light Emitting Areas
KB2785SYKW AlGaInP n 590 White Diffused 200 360
KB2885CGKD AlGaInP n 570 Green Diffused 40 59
KB-E100SURKW
KB-F100SURKW
KB-G100SURKW
KB-H100SURKW
Light Bar
