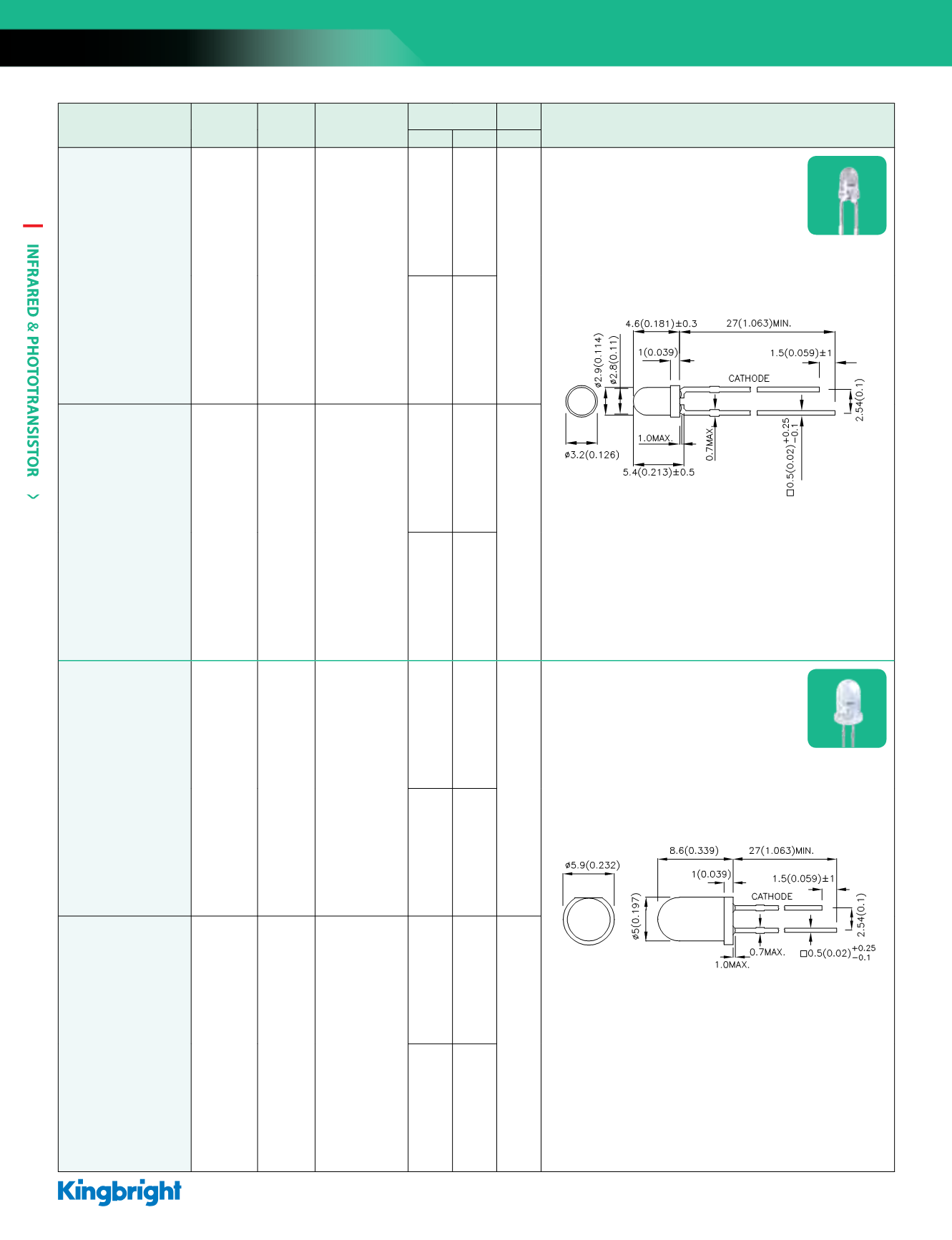

2016-2017 Kingbright Catalog - page 54

INFRARED & PHOTOTRANSISTOR
52
INFRARED EMITTING DIODE
Part Number Material lP
(nm) Lens Type
Po (mW/sr)
@20mA*50mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP710A10F3C GaAs n 940 Water Clear
3 8
34°
T-1 (3mm) Round
*12 *25
WP710A10SF4C GaAlAs n 880 Water Clear
7 12
34°
*12 *30
WP7113F3C GaAs n 940 Water Clear
8 20
20°
T-1 3/4 (5mm) Round
*25 *50
WP7113SF4C GaAlAs n 880 Water Clear
6 15
20°
*12 *25
WP710A10
WP7113
Infrared Emitting Diode
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
