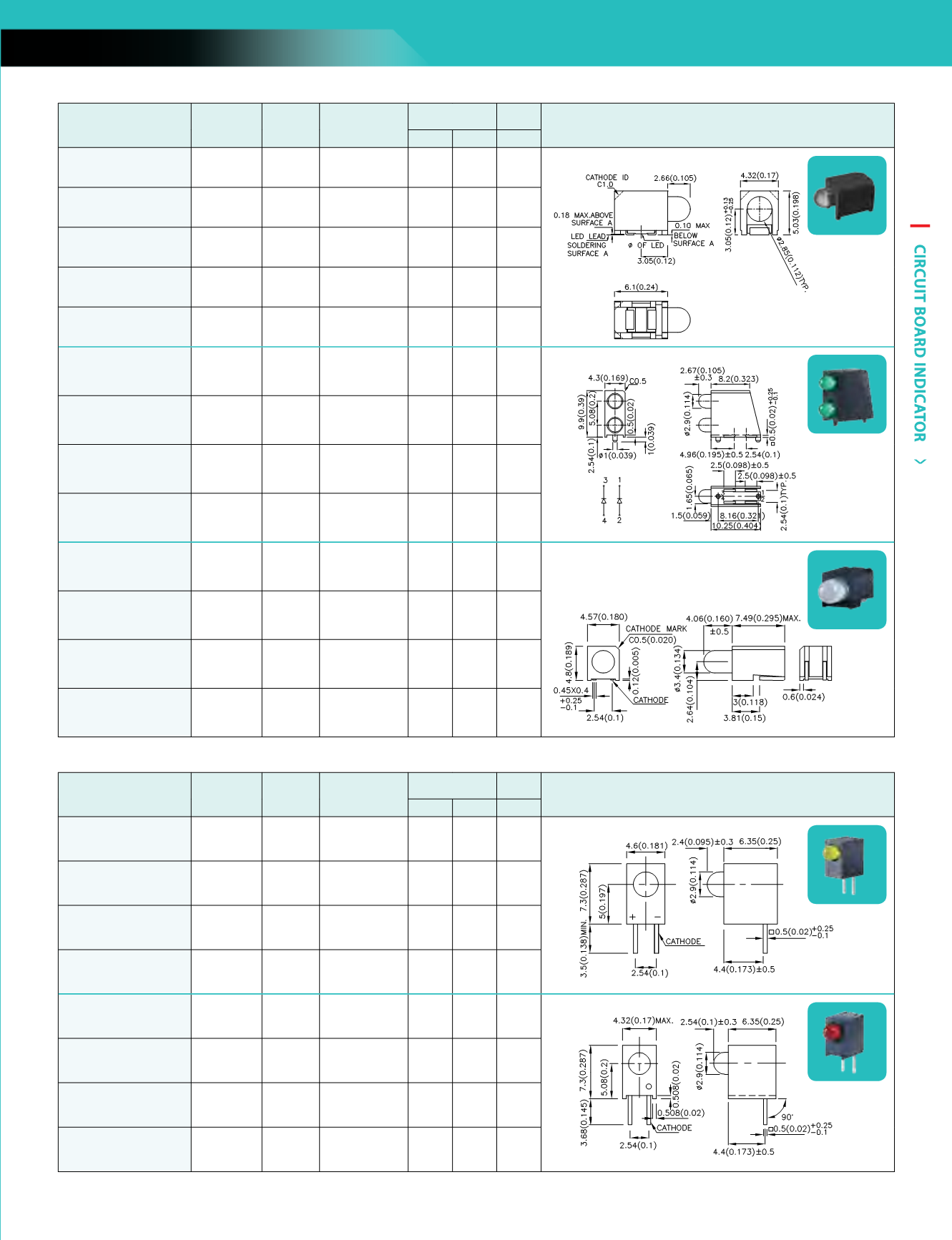

2016-2017 Kingbright Catalog - page 47

CIRCUIT BOARD INDICATOR
45
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted. www.KingbrightUSA.com
SINGLE-LEVEL CBI
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP934CB/ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Right Angle
WP934CB/SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934CB/YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934CB/GD GaP n 568 Green Diffused 10 25 40°
WP934EW/ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Right Angle
WP934EW/SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934EW/YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934EW/GD GaP n 568 Green Diffused 10 25 40°
WP934CB/
WP934EW/
SMD CBI
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
AA3528AVU/AES GaAsP/GaP n 617 Water Clear 0.7 2 50° Single Level Surface Mount CBI
AA3528AVU/ASRS GaAlAs n 640 Water Clear 8 18 50°
AA3528AVU/AYS GaAsP/GaP n 588 Water Clear 3 6 50°
AA3528AVU/ACGSK AlGaInP n 570 Water Clear 5 15 50°
AA3528AVU/AQBS/D InGaN n 465 Water Clear *10 *25 50°
WP7104ALUP/2ID-0L GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Right Angle
WP7104ALUP/2SURDK-0L AlGaInP n 630 Red Diffused *120 *240 40°
WP7104ALUP/2YD-0L GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP7104ALUP/2GD-0L GaP n 568 Green Diffused 10 25 40°
WP138A8QMP/ID/TG GaAsP/GaP n 617 Red Diffused 4 10 60°
3.4mm Right Angl
WP138A8QMP/SURDK/TG AlGaInP n 630 Red Diffused *150 *300 60°
WP138A8QMP/YD/TG GaAsP/GaP n 588 Yellow Diffused 4 8 60°
WP138A8QMP/GD/TG GaP n 568 Green Diffused 6 12 60°
WP7104ALUP/2-0L
WP138A8QMP/
AA3528AVU/A
SMD CBI, Single-level CBI
