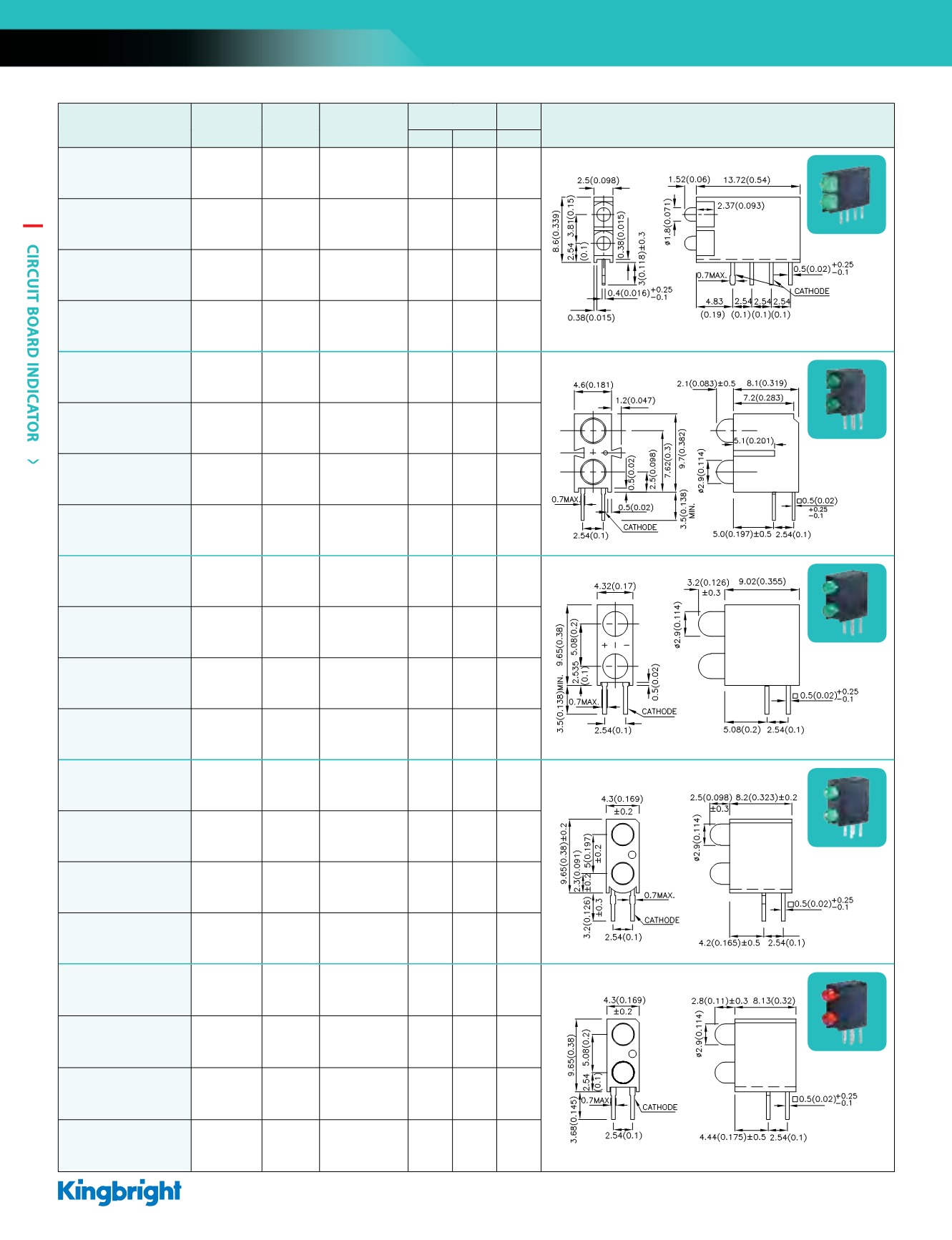

2016-2017 Kingbright Catalog - page 50

CIRCUIT BOARD INDICATOR
48
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP4060VH/2ID GaAsP/GaP n 617 Red Diffused 4 8 70°
1.8mm Bi-Level
WP4060VH/2SRD GaAlAs n 640 Red Diffused *30 *80 70°
WP4060VH/2YD GaAsP/GaP n 588 Yellow Diffused 4 8 70°
WP4060VH/2GD GaP n 568 Green Diffused 6 12 70°
WP934CA/2ID-90 GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Bi-Level
WP934CA/2SRD-90 GaAlAs n 640 Red Diffused *50 *100 40°
WP934CA/2YD-90 GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934CA/2GD-90 GaP n 568 Green Diffused 10 25 40°
WP934EB/2ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Bi-Level
WP934EB/2SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934EB/2YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934EB/2GD GaP n 568 Green Diffused 10 25 40°
WP934FG/2ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Bi-Level
WP934FG/2SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934FG/2YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934FG/2GD GaP n 568 Green Diffused 10 25 40°
WP934MD/2ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Bi-Level
WP934MD/2SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934MD/2YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934MD/2GD GaP n 568 Green Diffused 10 25 40°
BI-LEVEL CBI
WP4060VH/2
WP934CA/2-90
WP934EB/2
WP934FG/2
WP934MD/2
Bi-level CBI
