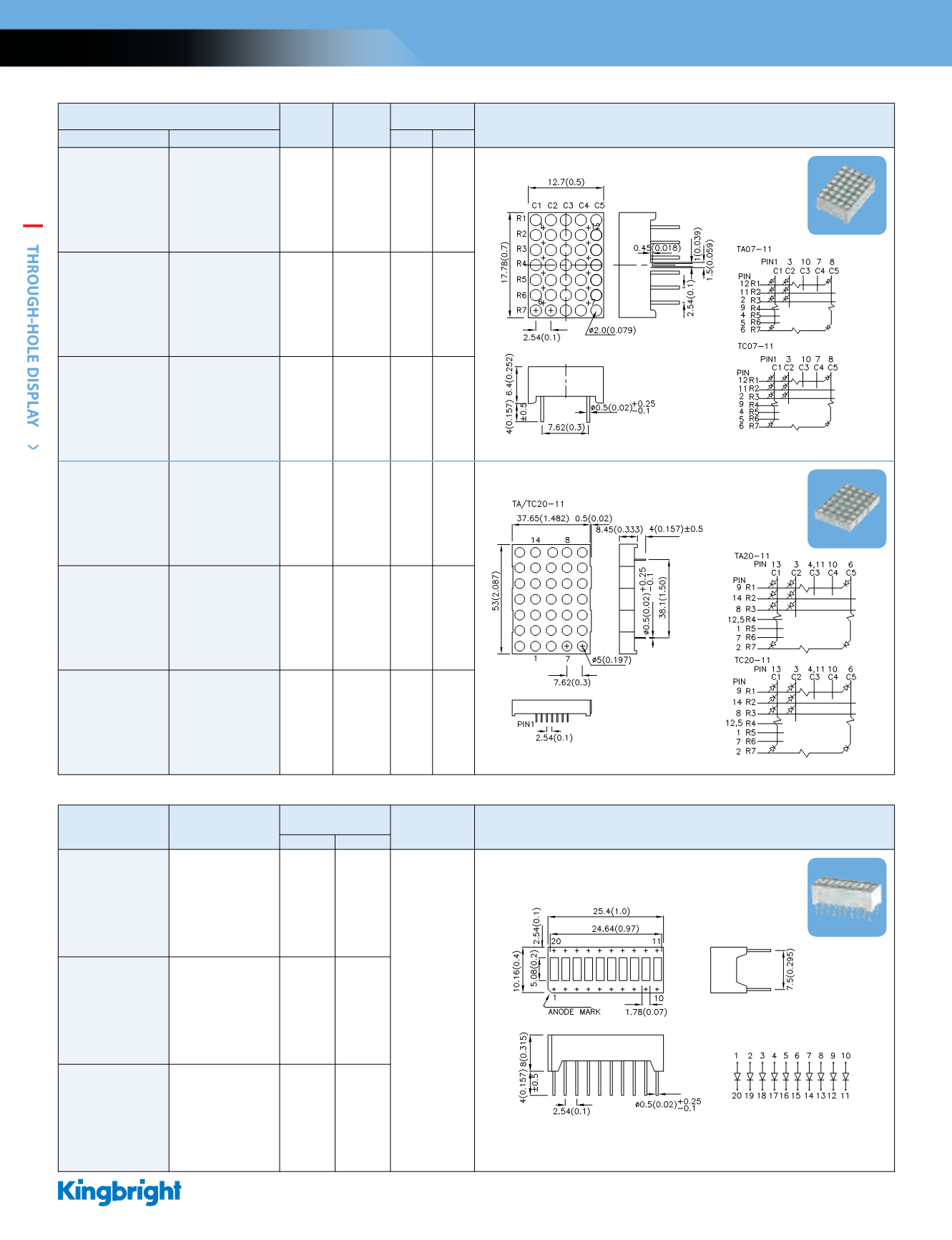

2016-2017 Kingbright Catalog - page 42

40
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
Part Number
Material lD
(nm)
Iv (ucd)
@10mA Dimensions
Column Anode Column Cathode Min. Typ.
TA07-11SURKWATC07-11SURKWAAlGaInP n 630 31000 90000
0.7 inch (18mm), 5x7, Gray Face, White Dot
TA07-11SYKWATC07-11SYKWAAlGaInP n 590 52000 140000
TA07-11CGKWATC07-11CGKWAAlGaInP n 570 21000 38000
TA20-11SURKWATC20-11SURKWAAlGaInP n 630 52000 130000
2.0 inch (50mm), 5x7, Gray Face, White Dot
TA20-11SYKWATC20-11SYKWAAlGaInP n 590 88000 160000
TA20-11CGKWATC20-11CGKWAAlGaInP n 570 21000 52000
DOT MATRIX
TX07
TX20
BAR GRAPH ARRAY
Part Number
Emitting Color
+ l D (nm)
+ Material
Iv (ucd)
@10mA Description Dimensions
Min. Typ.
DC10SURKWA
Hyper Red
n 630
AlGaInP
31000 100000
10 Segments
Bar graph-
Display
Gray Face
White Segment
DC10SYKWA
Super Bright Yellow
n 590
AlGaInP
52000 110000
DC10CGKWA
Green
n 570
AlGaInP
14000 28000
DC10
Dot Matrix, Bar Graph Array
