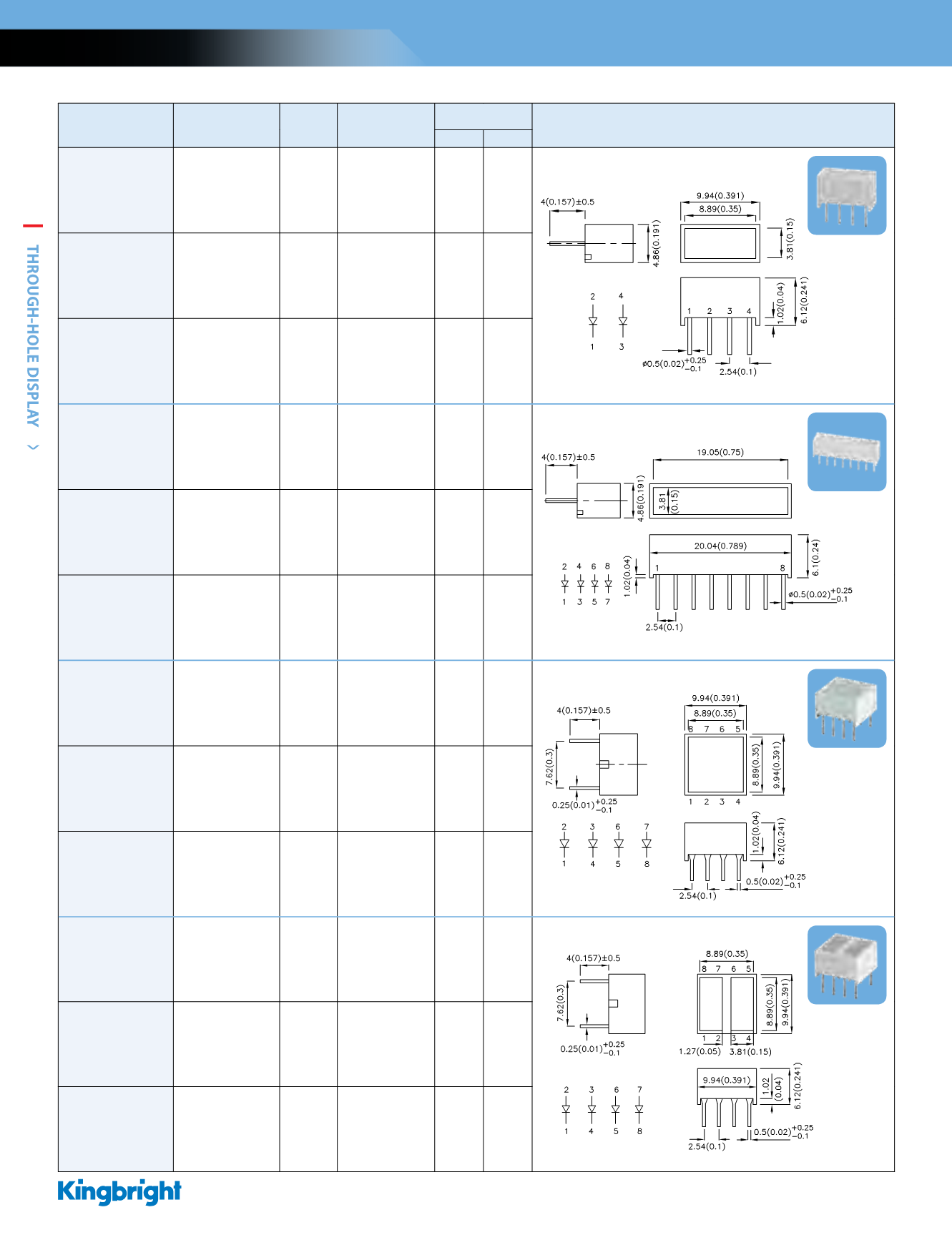

NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
LIGHT BAR
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA Dimensions
Min. Typ.
KB-A100SURKW AlGaInP n 630 White Diffused 120 230
8.89mm x 3.81mm Size of Light Emitting Areas
KB2400SYKW AlGaInP n 590 White Diffused 200 370
KB2500CGKD AlGaInP n 570 Green Diffused 40 75
KB-B100SURKW AlGaInP n 630 White Diffused 200 370
19.05mm x 3.81mm Size of Light Emitting Areas
KB2450SYKW AlGaInP n 590 White Diffused 400 630
KB2550CGKD AlGaInP n 570 Green Diffused 55 110
KB-C100SURKW AlGaInP n 630 White Diffused 400 550
8.89mm x 8.89mm Size of Light Emitting Areas
KB2755SYKW AlGaInP n 590 White Diffused 500 810
KB2855CGKD AlGaInP n 570 Green Diffused 80 140
KB-D100SURKW AlGaInP n 630 White Diffused 120 230
8.89mm x 3.81mm Size of Light Emitting Areas
KB2700SYKW AlGaInP n 590 White Diffused 200 370
KB2800CGKD AlGaInP n 570 Green Diffused 55 91
KB-B100SURKW
KB-C100SURKW
KB-D100SURKW
KB-A100SURKW
Light Bar
