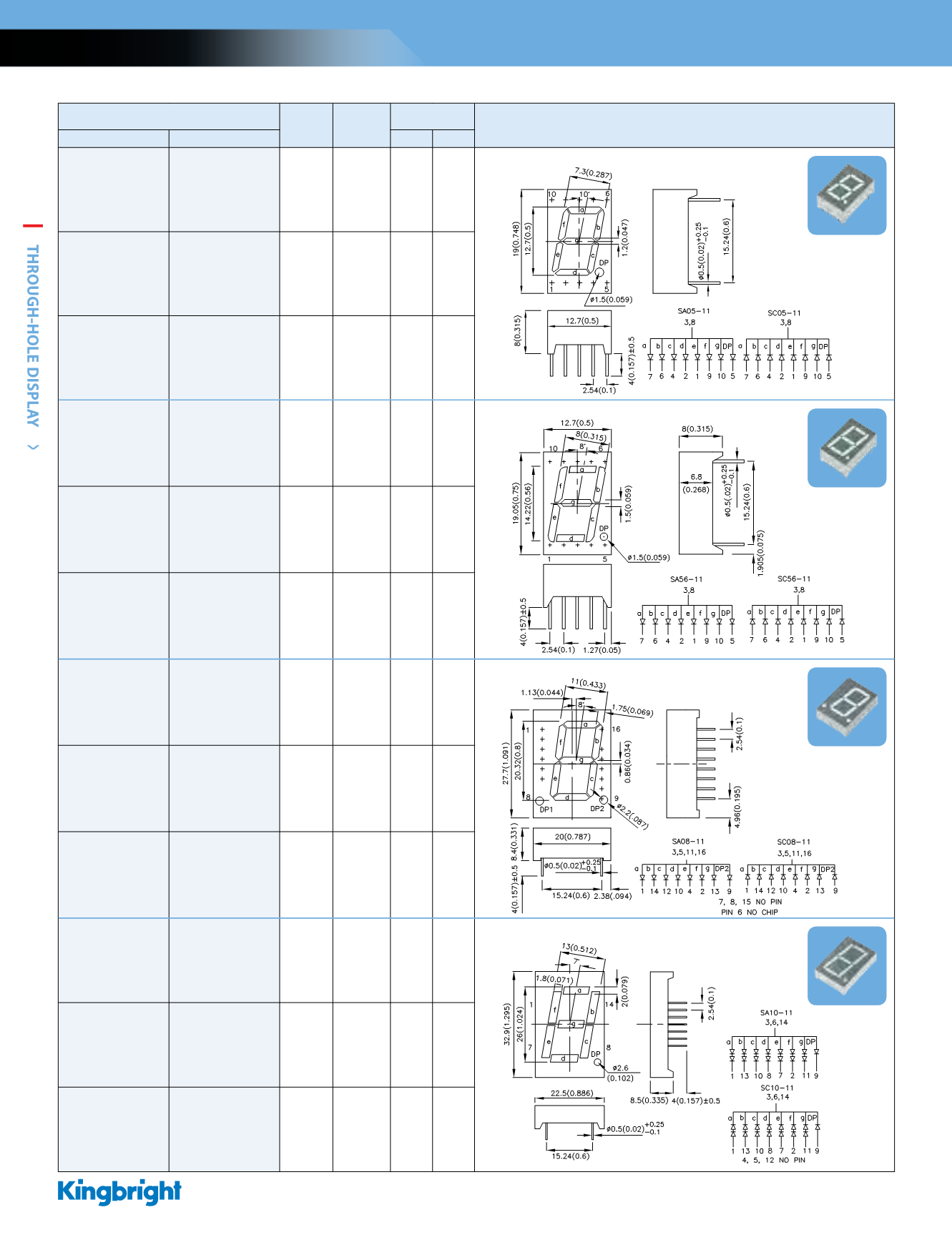

2016-2017 Kingbright Catalog - page 38

36
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
Part Number
Material lD
(nm)
Iv (ucd)
@10mA Dimensions
Common Anode Common Cathode Min. Typ.
SA05-11SURKWASC05-11SURKWAAlGaInP n 630 31000 69000
0.5 inch (12.7mm), Gray Face, White Segment
SA05-11SYKWASC05-11SYKWAAlGaInP n 590 52000 120000
SA05-11CGKWASC05-11CGKWAAlGaInP n 570 14000 34000
SA56-11SURKWA SC56-11SURKWA AlGaInP n 630 31000 97000
0.56 inch (14.22mm), Gray Face, White Segment
SA56-11SYKWA SC56-11SYKWA AlGaInP n 590 52000 160000
SA56-11CGKWASC56-11CGKWA AlGaInP n 570 14000 35000
SA08-11SURKWA SC08-11SURKWA AlGaInP n 630 21000 61000
0.8 inch (20.32mm), Gray Face, White Segment
SA08-11SYKWASC08-11SYKWA AlGaInP n 590 52000 140000
SA08-11CGKWA SC08-11CGKWA AlGaInP n 570 14000 25000
SA10-11SURKWA SC10-11SURKWA AlGaInP n 630 88000 260000
1.02 inch (26mm), Gray Face, White Segment
SA10-11SYKWA SC10-11SYKWA AlGaInP n 590 150000 400000
SA10-11CGKWA SC10-11CGKWA AlGaInP n 570 52000 95000
SINGLE DIGIT 7-SEGMENT THROUGH-HOLE DISPLAY
SX05
SX56
SX08
SX10
Single Digit 7-Segment Through-hole Display
