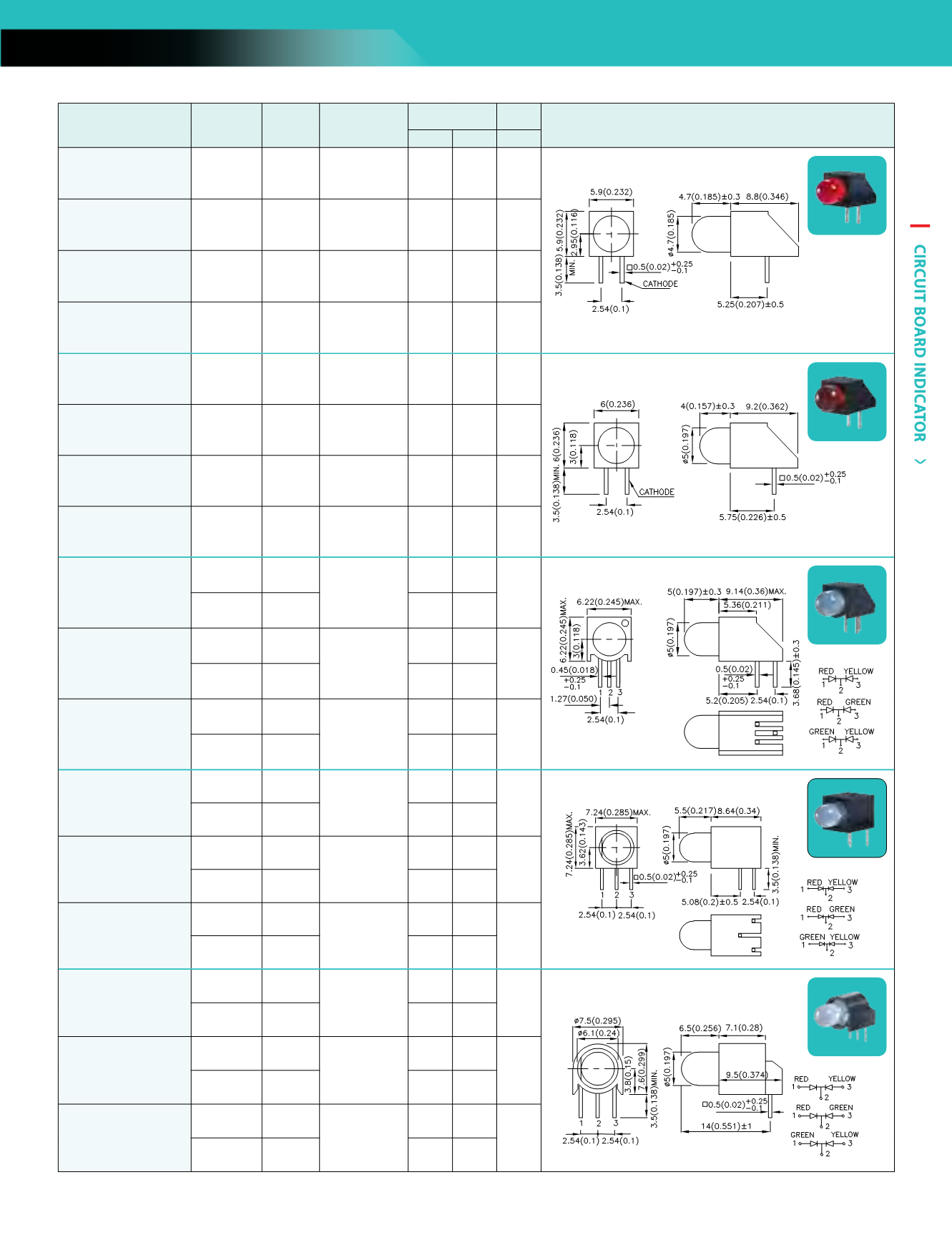

2016-2017 Kingbright Catalog - page 49

CIRCUIT BOARD INDICATOR
47
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted. www.KingbrightUSA.com
SINGLE-LEVEL CBI
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP1533BQ/ID GaAsP/GaP n 617 Red Diffused 12 30 60°
4.7mm Right Angle
WP1533BQ/SRD GaAlAs n 640 Red Diffused *140 *250 60°
WP1533BQ/YD GaAsP/GaP n 588 Yellow Diffused 15 40 60°
WP1533BQ/GD GaP n 568 Green Diffused 20 50 60°
WP1503CB/ID GaAsP/GaP n 617 Red Diffused 12 40 60°
T-1 3/4 (5mm) Right Angle
WP1503CB/SRD GaAlAs n 640 Red Diffused *120 *260 60°
WP1503CB/YD GaAsP/GaP n 588 Yellow Diffused 15 30 60°
WP1503CB/GD GaP n 568 Green Diffused 15 30 60°
WP150A9VS/EYW
GaAsP/GaP n 617
White Diffused
*12 *30
30°
T-1 3/4 (5mm) Right Angle
GaAsP/GaP n 588 *8 *20
WP150A9VS/EGW
GaAsP/GaP n 617
White Diffused
*12 *30
30°
GaP n 568 *18 *50
WP150A9VS/GYW
GaP n 568
White Diffused
*18 *50
30°
GaAsP/GaP n 588 *8 *20
WP59BL/EYW
GaAsP/GaP n 617
White Diffused
*20 *40
60°
T-1 3/4 (5mm) Right Angle
GaAsP/GaP n 588 *20 *40
WP59BL/EGW
GaAsP/GaP n 617
White Diffused
*20 *40
60°
GaP n 568 *20 *60
WP59BL/GYW
GaP n 568
White Diffused
*50 *100
60°
GaAsP/GaP n 588 *20 *40
WP59CB/EYW
GaAsP/GaP n 617
White Diffused
*20 *40
60°
T-1 3/4 (5mm) Right Angle
GaAsP/GaP n 588 *20 *40
WP59CB/EGW
GaAsP/GaP n 617
White Diffused
*20 *40
60°
GaP n 568 *20 *60
WP59CB/GYW
GaP n 568
White Diffused
*50 *100
60°
GaAsP/GaP n 588 *20 *40
WP59CB/
WP59BL/
WP1533BQ/
WP1503CB/
WP150A9VS/
Single-level CBI
