NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
www.KingbrightUSA.com

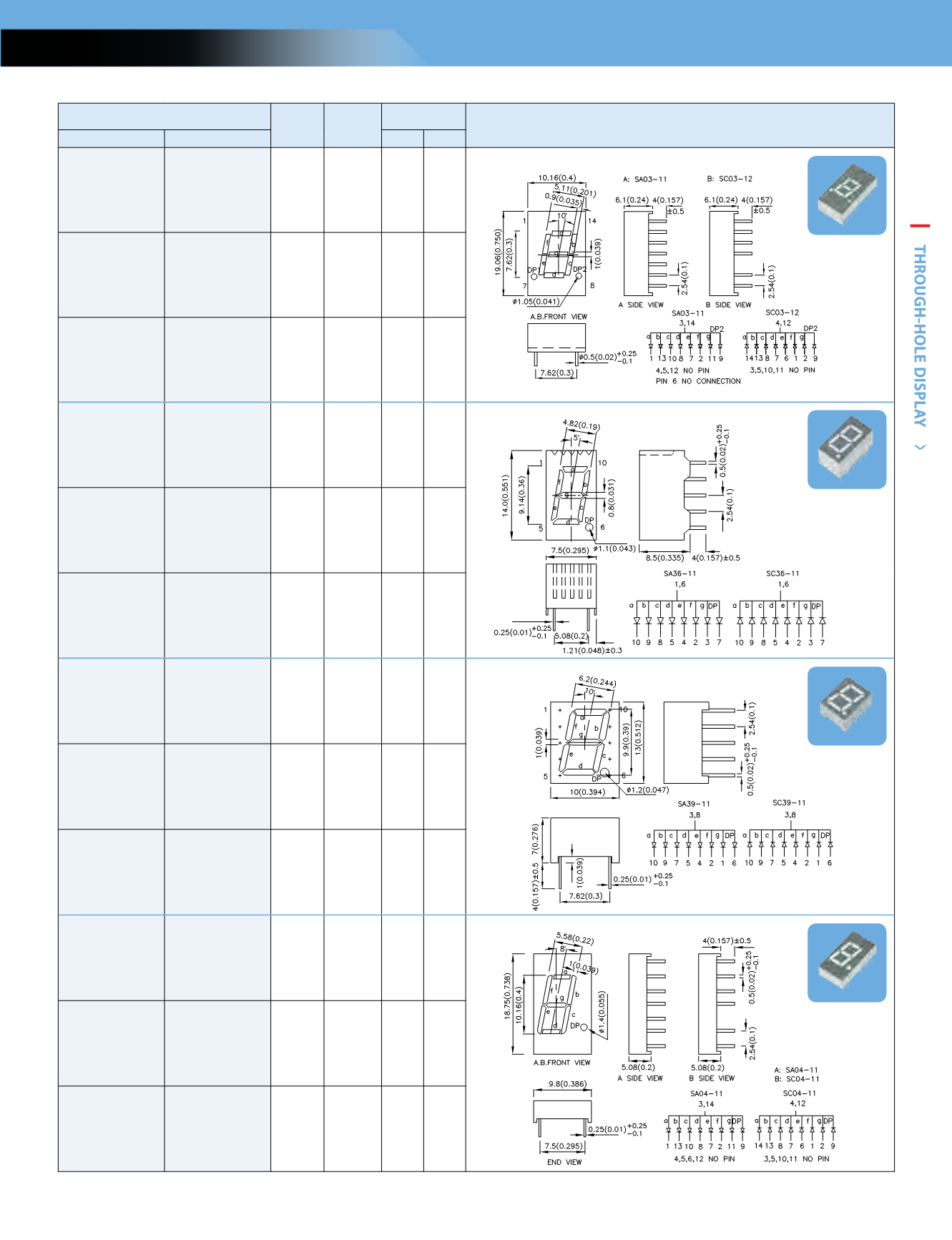

SINGLE DIGIT 7-SEGMENT THROUGH-HOLE DISPLAY
Part Number
Material lD
(nm)
Iv (ucd)
@10mA Dimensions
Common Anode Common Cathode Min. Typ.
SA03-11SURKWASC03-12SURKWAAlGaInP n 630 31000 67000
0.3 inch (7.62mm), Gray Face, White Segment
SA03-11SYKWASC03-12SYKWAAlGaInP n 590 52000 100000
SA03-11CGKWASC03-12CGKWAAlGaInP n 570 21000 57000
SA36-11SURKWASC36-11SURKWAAlGaInP n 630 14000 28000
0.36 inch (9.14mm), Gray Face, White Segment
SA36-11SYKWASC36-11SYKWAAlGaInP n 590 21000 45000
SA36-11CGKWASC36-11CGKWAAlGaInP n 570 3600 11000
SA39-11SURKWASC39-11SURKWA A lGaInP n 630 21000 46000
0.39 inch (9.9mm), Gray Face, White Segment
SA39-11SYKWA SC39-11SYKWAAlGaInP n 590 31000 86000
SA39-11CGKWASC39-11CGKWAAlGaInP n 570 9000 21000
SA04-11SURKWA SC04-11SURKWA A lGaInP n 630 31000 80000
0.4 inch (10.16mm), Gray Face, White Segment
SA04-11SYKWA SC04-11SYKWAAlGaInP n 590 52000 130000
SA04-11CGKWA SC04-11CGKWA A lGaInP n 570 14000 30000
SX03
SX36
SX39
SX04
Single Digit 7-Segment Through-hole Display
