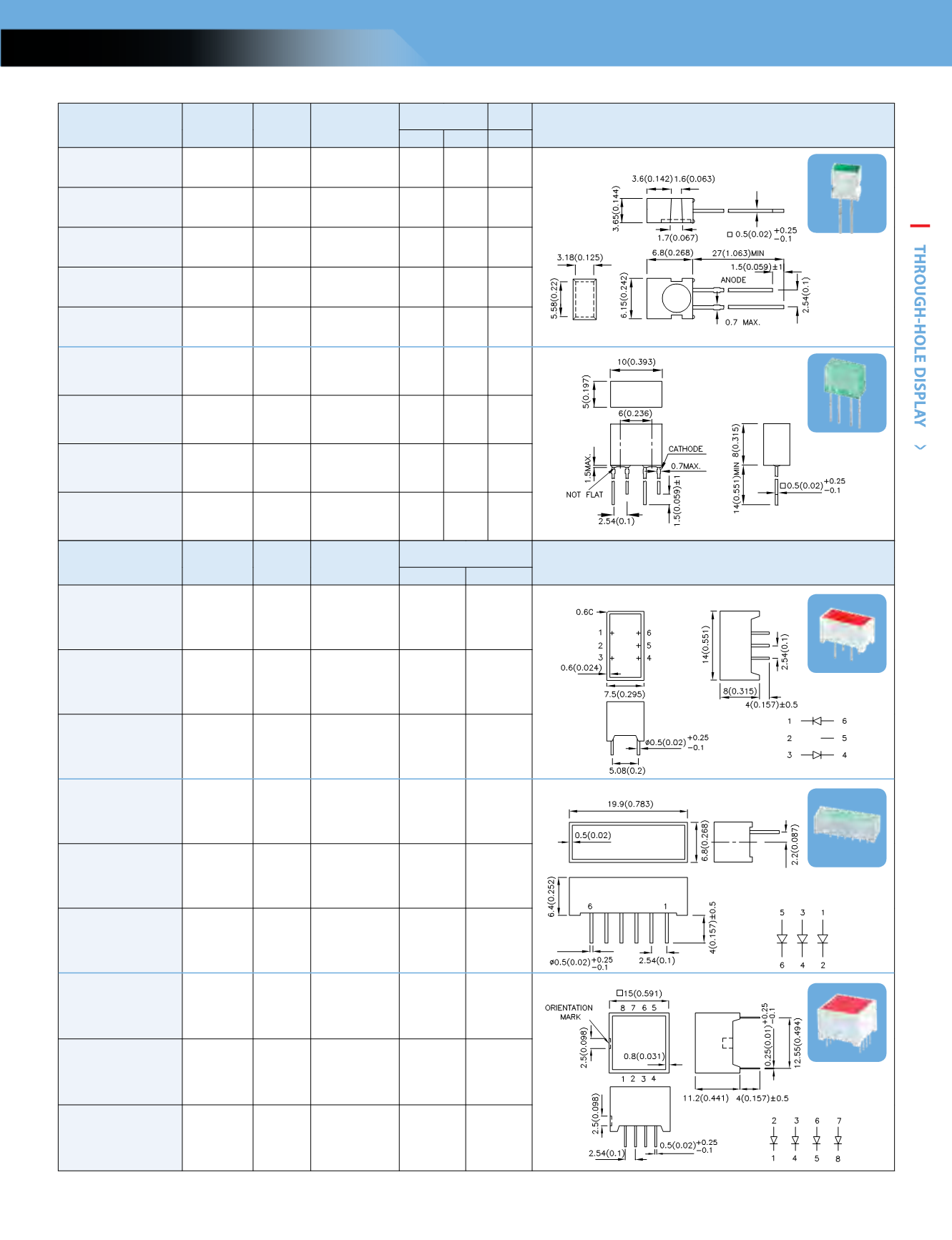

2016-2017 Kingbright Catalog - page 43

41
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
www.KingbrightUSA.com
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q1/2
WP1043ID GaAsP/GaP n 617 Red Diffused 2 4 100° 3.65mm x 6.15mm
WP1043SRD GaAlAs n 640 Red Diffused *20 *50 100°
WP1043YD GaAsP/GaP n 588 Yellow Diffused 2 5 100°
WP1043GD GaP n 568 Green Diffused 2 6 100°
WP1043SGD GaP n 568 Green Diffused *8 *16 100°
WP835/2IDT GaAsP/GaP n 617 Red Diffused 2 5 120°
5mm x 10mm
WP835/2SRDT GaAlAs n 640 Red Diffused *12 *26 120°
WP835/2YDT GaAsP/GaP n 588 Yellow Diffused 2 4 120°
WP835/2GDT GaP n 568 Green Diffused 3 6 120°
WP1043
WP835/2
LIGHT BAR
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@20mA Dimensions
Min. Typ.
DE2SURKD AlGaInP n 630 Red Diffused 400 600
7.5mm x 14mm
DE2SYKD AlGaInP n 590 Yellow Diffused 700 1100
DE2CGKD AlGaInP n 570 Green Diffused 120 200
DF3SURKD AlGaInP n 630 Red Diffused 400 620
6.8mm x 19.9mm
DF3SYKD AlGaInP n 590 Yellow Diffused 700 1100
DF3CGKD AlGaInP n 570 Green Diffused 120 270
DE4SURKD AlGaInP n 630 Red Diffused 500 930
15mm x 15mm
DE4SYKD AlGaInP n 590 Yellow Diffused 700 1200
DE4CGKD AlGaInP n 570 Green Diffused 120 220
DE2
DF3
DE4
Light Bar
