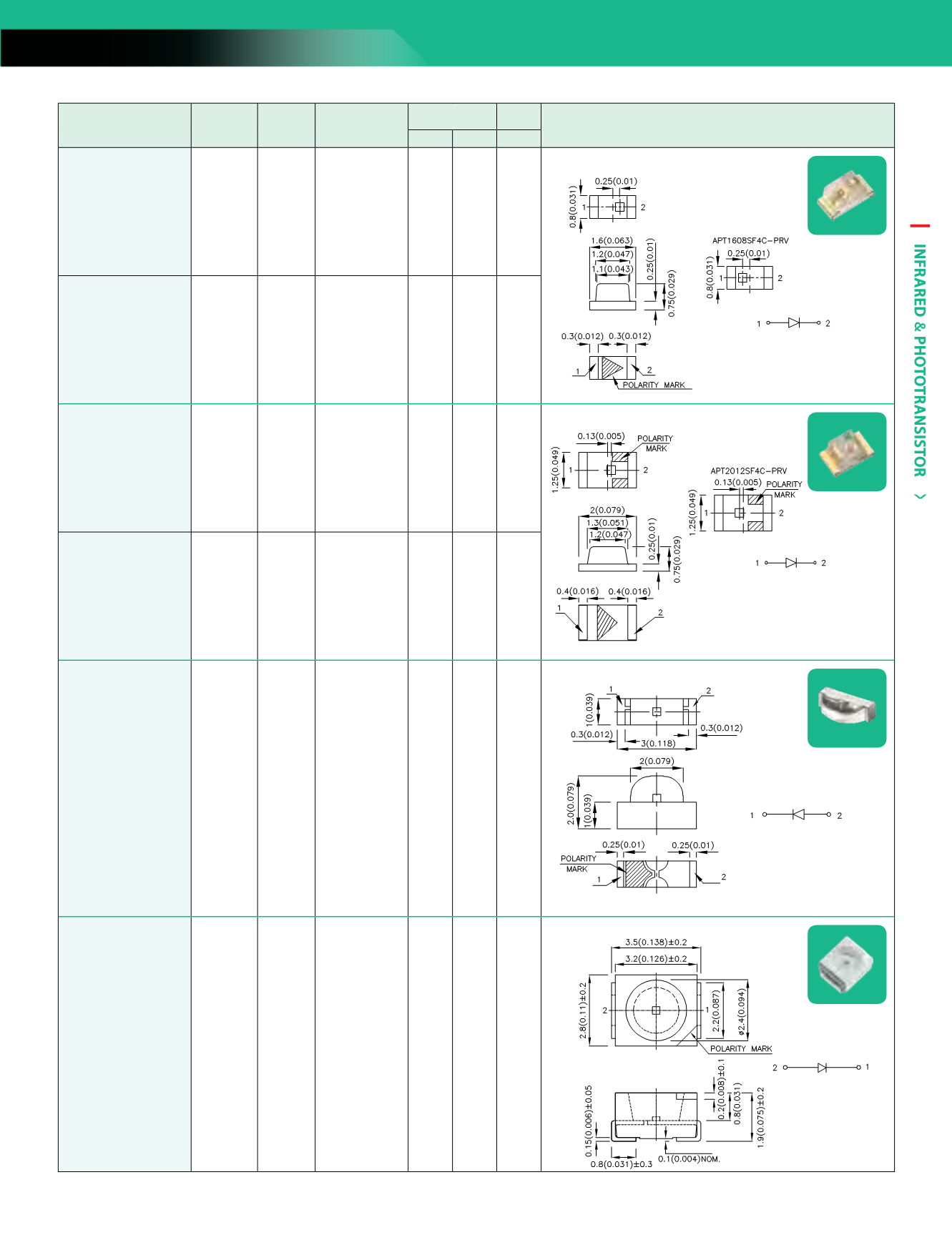

2016-2017 Kingbright Catalog - page 53

INFRARED & PHOTOTRANSISTOR
51
www.KingbrightUSA.com
Part Number Material lP
(nm) Lens Type
Po (mW/sr)
@20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
APT1608F3C GaAs n 940 Water Clear 0.8 2 120°
1.6mm x 0.8mm x 0.75mm (0603)
APT1608SF4C-PRV GaAlAs n 880 Water Clear 0.8 1.5 120°
APT2012F3C GaAs n 940 water clear 0.8 2 120°
2.0mm x 1.25mm x 0.75mm (0805)
APT2012SF4C-PRV GaAlAs n 880 Water Clear 0.8 1.5 120°
APA3010F3C-GX GaAs n 940 Water Clear 0.8 2 120°
3.0mm x 1.0mm x 2.0mm (1104 Right Angle)
AA3528F3S GaAs n 940 Water Clear 1.2 2.5 120°
3.5mm x 2.8mm x 1.9mm
INFRARED EMITTING DIODE
APT1608
APT2012
Units : mm(inch)
Tolerance : ±0.1(0.004)
Units : mm(inch)
Tolerance : ±0.1(0.004)
APA3010
Units : mm(inch)
Tolerance : ±0.15(0.006)
AA3528
Units : mm(inch)
Tolerance : ±0.25(0.01)
Infrared Emitting Diode
