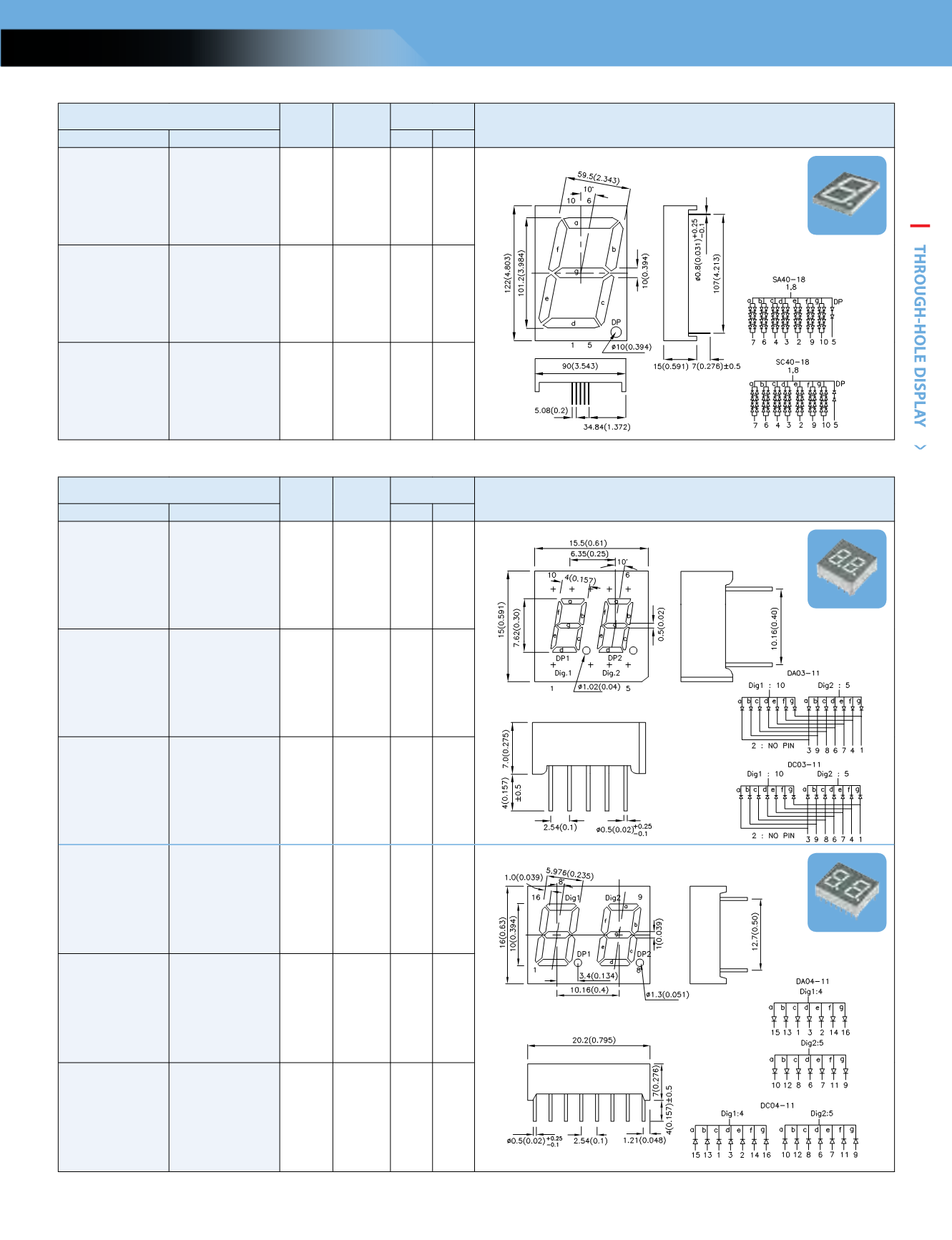

2016-2017 Kingbright Catalog - page 39

37
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
THROUGH-HOLE DISPLAY
www.KingbrightUSA.com
Part Number
Material lD
(nm)
Iv (ucd)
@10mA Dimensions
Common Anode Common Cathode Min. Typ.
SA40-18SURKWASC40-18SURKWA AlGaInP n 630 88000 250000
3.984 inch (101.2mm), Gray Face, White Segment
SA40-18SYKWASC40-18SYKWA AlGaInP n 590 150000 450000
SA40-18CGKWA SC40-18CGKWA AlGaInP n 570 31000 100000
SINGLE DIGIT 7-SEGMENT THROUGH-HOLE DISPLAY
SX40
DUAL DIGIT 7-SEGMENT THROUGH-HOLE DISPLAY
Part Number
Material lD
(nm)
Iv (ucd)
@10mA Dimensions
Common Anode Common Cathode Min. Typ.
DA03-11SURKWADC03-11SURKWA AlGaInP n 630 21000 47000
0.3 inch (7.62mm), Gray Face, White Segment
DA03-11SYKWADC03-11SYKWAAlGaInP n 590 21000 54000
DA03-11CGKWADC03-11CGKWAAlGaInP n 570 9000 16000
DA04-11SURKWADC04-11SURKWAAlGaInP n 630 21000 54000
0.394 inch (10mm), Gray Face, White Segment
DA04-11SYKWADC04-11SYKWAAlGaInP n 590 31000 84000
DA04-11CGKWADC04-11CGKWAAlGaInP n 570 9000 25000
DX03
DX04
Single,
Dual
Digit 7-Segment Through-hole Display
