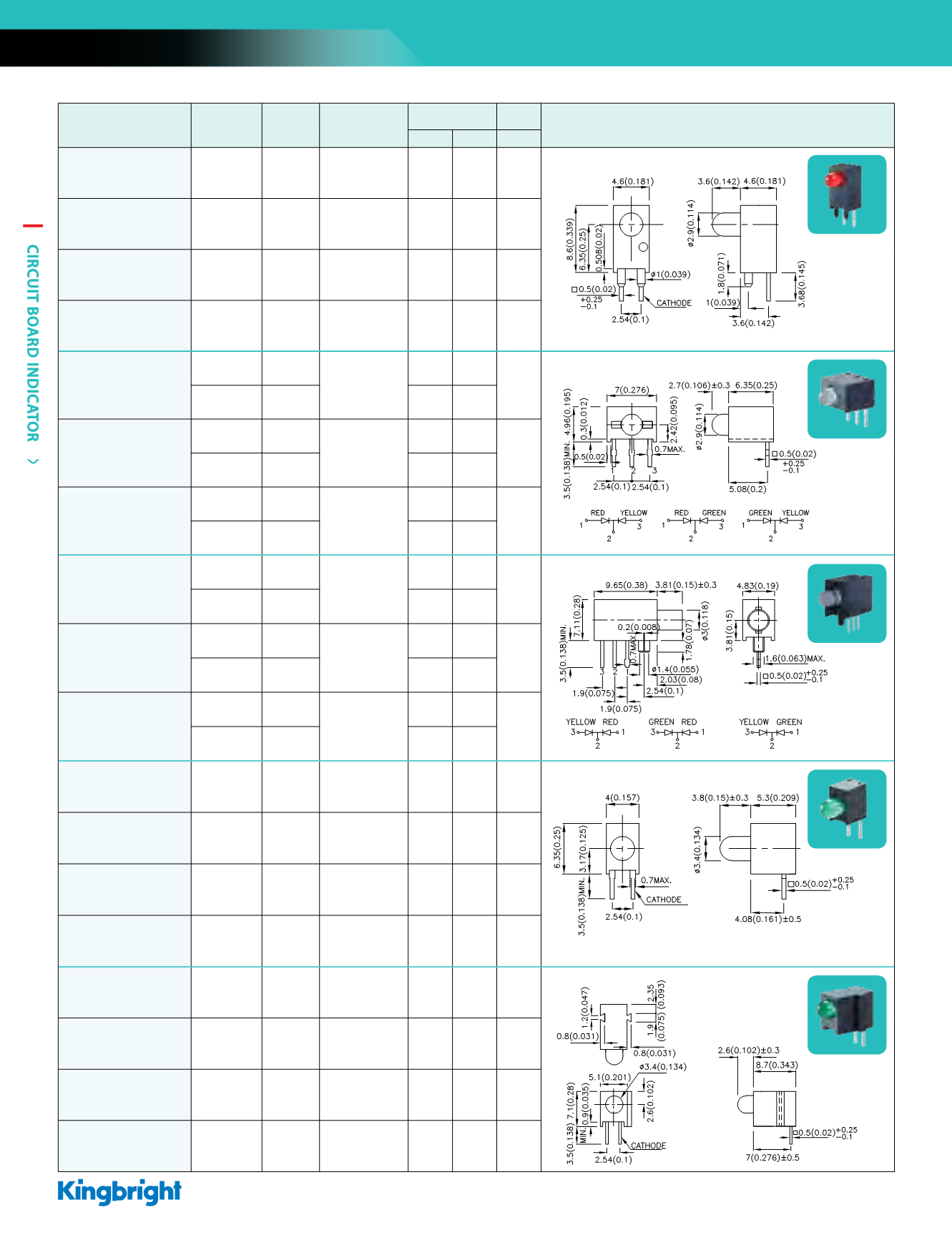

2016-2017 Kingbright Catalog - page 48

CIRCUIT BOARD INDICATOR
46
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted.
Part Number Material lD
(nm) Lens Type
Iv (mcd)
@10mA*20mA
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP934RS/ID GaAsP/GaP n 617 Red Diffused 10 20 40°
T-1 (3mm) Right Angle
WP934RS/SRD GaAlAs n 640 Red Diffused *50 *100 40°
WP934RS/YD GaAsP/GaP n 588 Yellow Diffused 8 15 40°
WP934RS/GD GaP n 568 Green Diffused 10 25 40°
WP130WDT/EYW
GaAsP/GaP n 617
White Diffused
*10 *24
60°
T-1 (3mm) Right Angle
GaAsP/GaP n 588 *10 *20
WP130WDT/EGW
GaAsP/GaP n 617
White Diffused
*10 *24
60°
GaP n 568 *12 *30
WP130WDT/GYW
GaP n 568
White Diffused
*18 *40
60°
GaAsP/GaP n 588 *10 *20
WP42WUM/EYW
GaAsP/GaP n 617
White Diffused
*4 *8
100°
T-1 (3mm) Right Angle
GaAsP/GaP n 588 *2 *6
WP42WUM/EGW
GaAsP/GaP n 617
White Diffused
*4 *8
100°
GaP n 568 *4 *12
WP42WUM/GYW
GaP n 568
White Diffused
*4 *10
100°
GaAsP/GaP n 588 *2 *6
WP1384AD/ID GaAsP/GaP n 617 Red Diffused 8 16 60°
3.4mm Right Angle
WP1384AD/SRD GaAlAs n 640 Red Diffused *40 *90 60°
WP1384AD/YD GaAsP/GaP n 588 Yellow Diffused 8 15 60°
WP1384AD/GD GaP n 568 Green Diffused 10 20 60°
WP1384AL/ID GaAsP/GaP n 617 Red Diffused 8 16 60°
3.4mm Right Angle
WP1384AL/SRD GaAlAs n 640 Red Diffused *40 *90 60°
WP1384AL/YD GaAsP/GaP n 588 Yellow Diffused 8 15 60°
WP1384AL/GD GaP n 568 Green Diffused 10 20 60°
SINGLE-LEVEL CBI
WP1384AD/
WP1384AL/
WP934RS/
WP130WDT/
WP42WUM/
Single-level CBI
