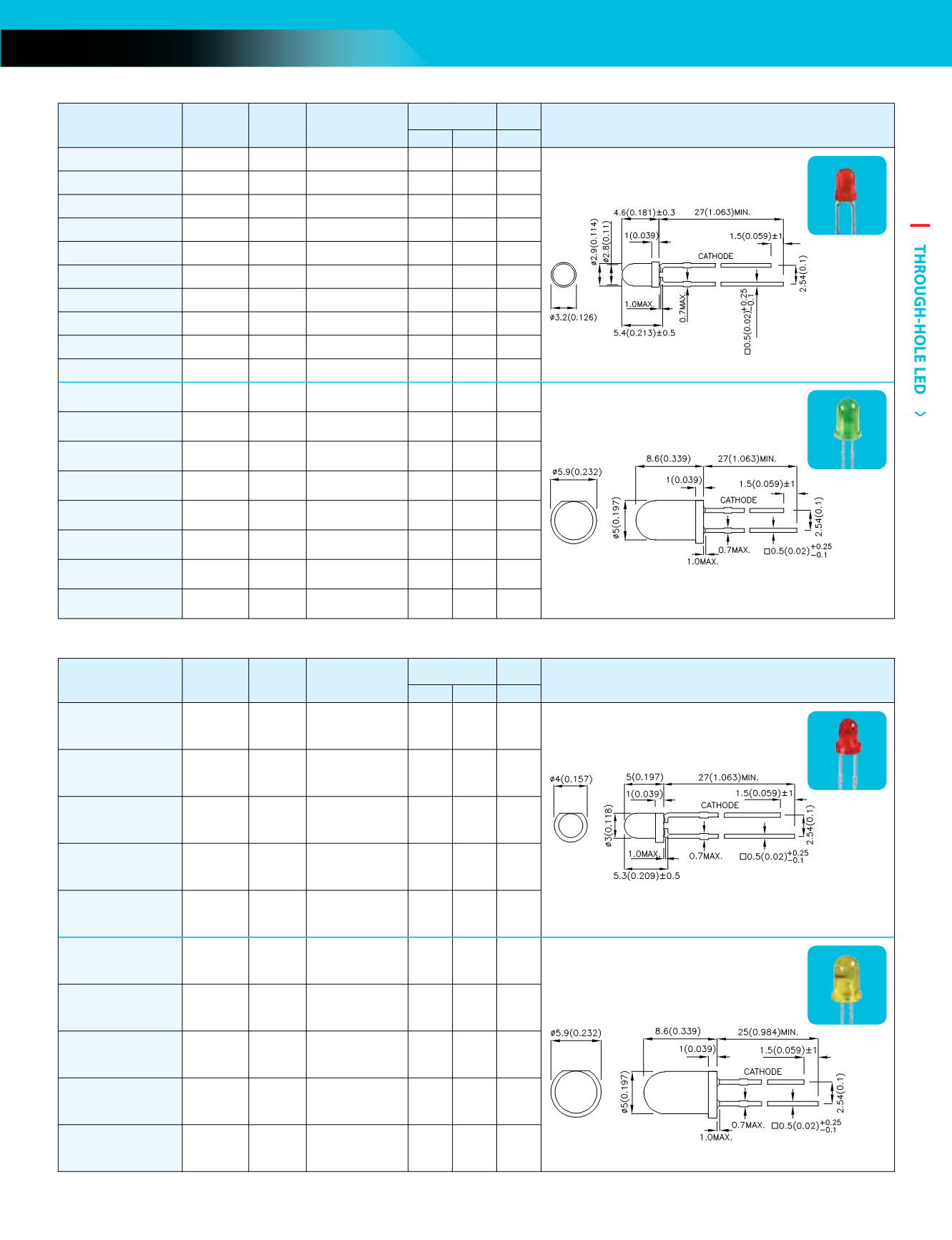

2016-2017 Kingbright Catalog - page 31

THROUGH-HOLE LED
29
NOTES: 1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(0.01") unless otherwise noted. www.KingbrightUSA.com
BLINKING LED
Part Number Material lD
(nm) Lens Type
Iv (mcd)
V=9V
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP36BHD GaP n 635 Red Diffused 0.6 1.8 60°
T-1 (3mm) Round
WP36BID GaAsP/GaP n 617 Red Diffused 6 15 60°
WP36BSRD/B GaAlAs n 640 Red Diffused 40 100 60°
WP36BYD GaAsP/GaP n 588 Yellow Diffused 8 15 60°
WP36BGD GaP n 568 Green Diffused 12 25 60°
WP56BHD GaP n 635 Red Diffused 1.2 4 60°
T-1 3/4 (5mm) Round
WP56BID GaAsP/GaP n 617 Red Diffused 12 25 60°
WP56BSRD/B GaAlAs n 640 Red Diffused 30 70 60°
WP56BYD GaAsP/GaP n 588 Yellow Diffused 12 20 60°
WP56BGD GaP n 568 Green Diffused 15 30 60°
WP36B
WP56B
Part Number Material lD
(nm) Lens Type
Iv (mcd)
V=5V*V=14V
Viewing
Angle Dimensions
Min. Typ. 2q 1/2
WP710A10ID5V GaAsP/GaP n 617 Red Diffused 6 14 40° T-1 (3mm) Round
WP710A10ID14V GaAsP/GaP n 617 Red Diffused *5 *10 40°
WP710A10SRD5V GaAlAs n 640 Red Diffused 25 50 40°
WP710A10SRD14V GaAlAs n 640 Red Diffused *20 *40 40°
WP710A10YD5V GaAsP/GaP n 588 Yellow Diffused 7 15 40°
WP710A10YD14V GaAsP/GaP n 588 Yellow Diffused *6 *11 40°
WP710A10GD5V GaP n 568 Green Diffused 12 25 40°
WP710A10GD14V GaP n 568 Green Diffused *8 *20 40°
WP710A10SGD5V GaP n 568 Green Diffused 10 25 40°
WP710A10SGD14V GaP n 568 Green Diffused *8 *20 40°
WP7113ID5V GaAsP/GaP n 617 Red Diffused 12 25 30° T-1 3/4 (5mm) Round
WP7113ID14V GaAsP/GaP n 617 Red Diffused *10 *22 30°
WP7113SRD5V GaAlAs n 640 Red Diffused 70 110 30°
WP7113SRD14V GaAlAs n 640 Red Diffused *60 *100 30°
WP7113YD5V GaAsP/GaP n 588 Yellow Diffused 10 22 30°
WP7113YD14V GaAsP/GaP n 588 Yellow Diffused *8 *20 30°
WP7113SGD5V GaP n 568 Green Diffused 15 25 30°
WP7113SGD14V GaP n 568 Green Diffused *10 *22 30°
RESISTOR LED
WP7113xx5V/14V
WP710A10xx5V/14V
Resistor LED, Blinking LED
