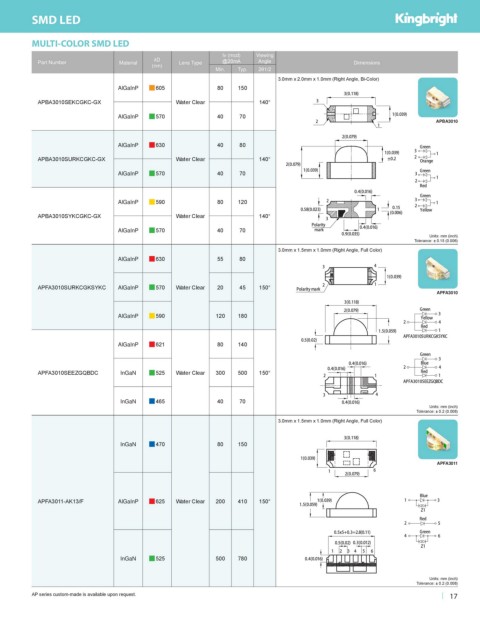

SMD LED

MULTI-COLOR SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 2.0mm x 1.0mm (Right Angle, Bi-Color)
AlGaInP g 605 80 150
APBA3010SEKCGKC-GX Water Clear 140°
AlGaInP g 570 40 70
APBA3010

AlGaInP g 630 40 80

APBA3010SURKCGKC-GX Water Clear 140°
AlGaInP g 570 40 70

AlGaInP g 590 80 120
APBA3010SYKCGKC-GX Water Clear 140°
AlGaInP g 570 40 70
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
3.0mm x 1.5mm x 1.0mm (Right Angle, Full Color)
AlGaInP g 630 55 80

APFA3010SURKCGKSYKC AlGaInP g 570 Water Clear 20 45 150°
APFA3010

AlGaInP g 590 120 180

AlGaInP g 621 80 140

APFA3010SEEZGQBDC InGaN g 525 Water Clear 300 500 150°

InGaN g 465 40 70
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.0mm x 1.5mm x 1.0mm (Right Angle, Full Color)

InGaN g 470 80 150

APFA3011

APFA3011-AK13/F AlGaInP g 625 Water Clear 200 410 150°

InGaN g 525 500 780

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
AP series custom-made is available upon request. 17
