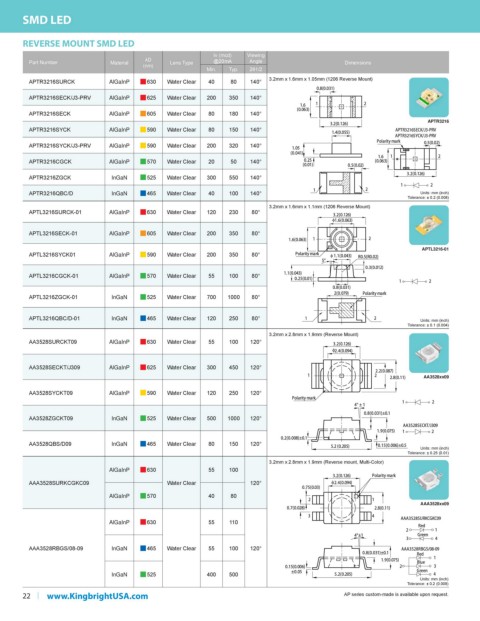

Page 24 - Kingbright 2022-2023 catalog

SMD LED

REVERSE MOUNT SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
APTR3216SURCK AlGaInP g 630 Water Clear 40 80 140° 3.2mm x 1.6mm x 1.05mm (1206 Reverse Mount)
APTR3216SECK/J3-PRV AlGaInP g 625 Water Clear 200 350 140°

APTR3216SECK AlGaInP g 605 Water Clear 80 180 140°
APTR3216
APTR3216SYCK AlGaInP g 590 Water Clear 80 150 140°

APTR3216SYCK/J3-PRV AlGaInP g 590 Water Clear 200 320 140°
APTR3216CGCK AlGaInP g 570 Water Clear 20 50 140°

APTR3216ZGCK InGaN g 525 Water Clear 300 550 140°
APTR3216QBC/D InGaN g 465 Water Clear 40 100 140° Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.2mm x 1.6mm x 1.1mm (1206 Reverse Mount)
APTL3216SURCK-01 AlGaInP g 630 Water Clear 120 230 80°

APTL3216SECK-01 AlGaInP g 605 Water Clear 200 350 80°
APTL3216-01
APTL3216SYCK01 AlGaInP g 590 Water Clear 200 350 80°

APTL3216CGCK-01 AlGaInP g 570 Water Clear 55 100 80°

APTL3216ZGCK-01 InGaN g 525 Water Clear 700 1000 80°

APTL3216QBC/D-01 InGaN g 465 Water Clear 120 250 80° Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.2mm x 2.8mm x 1.9mm (Reverse Mount)
AA3528SURCKT09 AlGaInP g 630 Water Clear 55 100 120°

AA3528SECKT/J309 AlGaInP g 625 Water Clear 300 450 120°
AA3528xx09
AA3528SYCKT09 AlGaInP g 590 Water Clear 120 250 120°

AA3528ZGCKT09 InGaN g 525 Water Clear 500 1000 120°

AA3528QBS/D09 InGaN g 465 Water Clear 80 150 120°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
3.2mm x 2.8mm x 1.9mm (Reverse mount, Multi-Color)
AlGaInP g 630 55 100
AAA3528SURKCGKC09 Water Clear 120°
AlGaInP g 570 40 80
AAA3528xx09

AlGaInP g 630 55 110

AAA3528RBGS/08-09 InGaN g 465 Water Clear 55 100 120°

InGaN g 525 400 500
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
22 www.KingbrightUSA.com AP series custom-made is available upon request.
