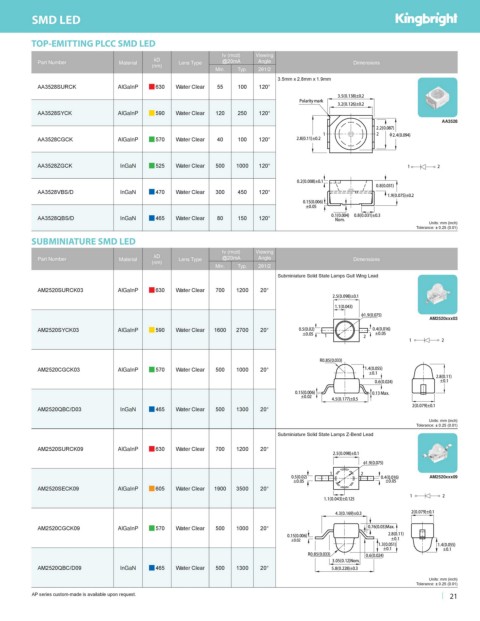

SMD LED
TOP-EMITTING PLCC SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.5mm x 2.8mm x 1.9mm
AA3528SURCK AlGaInP g 630 Water Clear 55 100 120°
AA3528SYCK AlGaInP g 590 Water Clear 120 250 120°
AA3528
AA3528CGCK AlGaInP g 570 Water Clear 40 100 120°
AA3528ZGCK InGaN g 525 Water Clear 500 1000 120°
AA3528VBS/D InGaN g 470 Water Clear 300 450 120°
AA3528QBS/D InGaN g 465 Water Clear 80 150 120°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
SUBMINIATURE SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
Subminiature Solid State Lamps Gull Wing Lead
AM2520SURCK03 AlGaInP g 630 Water Clear 700 1200 20°
AM2520xxx03
AM2520SYCK03 AlGaInP g 590 Water Clear 1600 2700 20°
AM2520CGCK03 AlGaInP g 570 Water Clear 500 1000 20°
AM2520QBC/D03 InGaN g 465 Water Clear 500 1300 20°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
Subminiature Solid State Lamps Z-Bend Lead
AM2520SURCK09 AlGaInP g 630 Water Clear 700 1200 20°
AM2520xxx09
AM2520SECK09 AlGaInP g 605 Water Clear 1900 3500 20°
AM2520CGCK09 AlGaInP g 570 Water Clear 500 1000 20°
AM2520QBC/D09 InGaN g 465 Water Clear 500 1300 20°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
AP series custom-made is available upon request. 21
