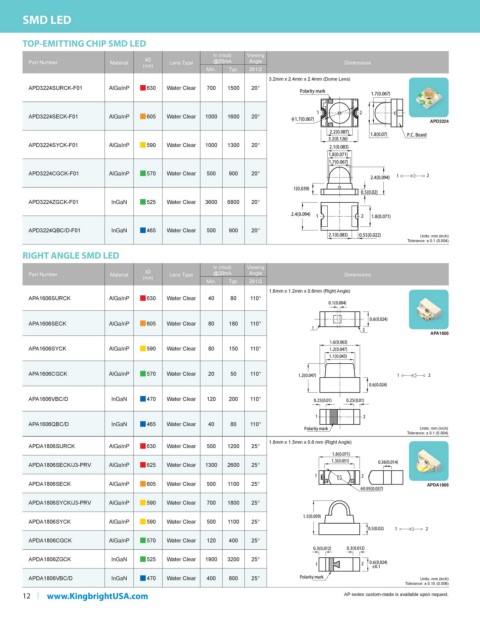

Page 14 - Kingbright 2022-2023 catalog

SMD LED

TOP-EMITTING CHIP SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.2mm x 2.4mm x 2.4mm (Dome Lens)
APD3224SURCK-F01 AlGaInP g 630 Water Clear 700 1500 20°

APD3224SECK-F01 AlGaInP g 605 Water Clear 1000 1600 20°
APD3224

APD3224SYCK-F01 AlGaInP g 590 Water Clear 1000 1300 20°

APD3224CGCK-F01 AlGaInP g 570 Water Clear 500 900 20°

APD3224ZGCK-F01 InGaN g 525 Water Clear 3600 6800 20°

APD3224QBC/D-F01 InGaN g 465 Water Clear 500 900 20°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
RIGHT ANGLE SMD LED
Iv (mcd) Viewing
λD
Part Number Material (nm) Lens Type @20mA Angle Dimensions
Min. Typ. 2θ1/2
1.6mm x 1.2mm x 0.6mm (Right Angle)
APA1606SURCK AlGaInP g 630 Water Clear 40 80 110°

APA1606SECK AlGaInP g 605 Water Clear 80 180 110°
APA1606
APA1606SYCK AlGaInP g 590 Water Clear 80 150 110°

APA1606CGCK AlGaInP g 570 Water Clear 20 50 110°

APA1606VBC/D InGaN g 470 Water Clear 120 200 110°

APA1606QBC/D InGaN g 465 Water Clear 40 80 110°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.8mm x 1.5mm x 0.6 mm (Right Angle)
APDA1806SURCK AlGaInP g 630 Water Clear 500 1200 25°

APDA1806SECK/J3-PRV AlGaInP g 625 Water Clear 1300 2600 25°

APDA1806SECK AlGaInP g 605 Water Clear 500 1100 25° APDA1806

APDA1806SYCK/J3-PRV AlGaInP g 590 Water Clear 700 1800 25°

APDA1806SYCK AlGaInP g 590 Water Clear 500 1100 25°

APDA1806CGCK AlGaInP g 570 Water Clear 120 400 25°

APDA1806ZGCK InGaN g 525 Water Clear 1900 3200 25°

APDA1806VBC/D InGaN g 470 Water Clear 400 800 25° Units: mm (inch)
Tolerance: ± 0.15 (0.006)
