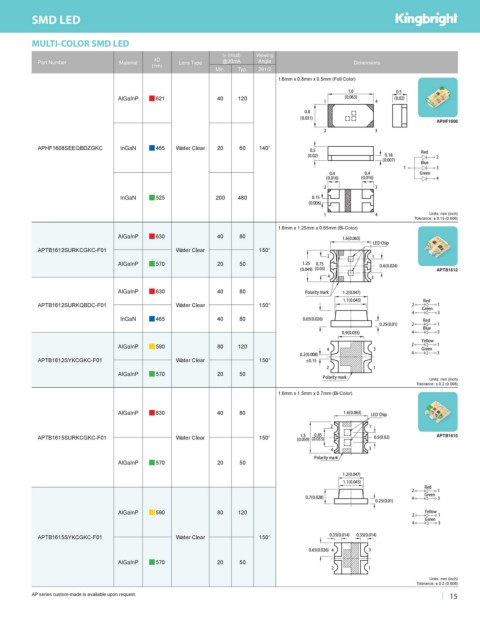

SMD LED

MULTI-COLOR SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.6mm x 0.8mm x 0.5mm (Full Color)
AlGaInP g 621 40 120

APHF1608

APHF1608SEEQBDZGKC InGaN g 465 Water Clear 20 60 140°

InGaN g 525 200 480

Units: mm (inch)
Tolerance: ± 0.15 (0.006)
1.6mm x 1.25mm x 0.65mm (Bi-Color)
AlGaInP g 630 40 80
APTB1612SURKCGKC-F01 Water Clear 150°

AlGaInP g 570 20 50
APTB1612

AlGaInP g 630 40 80
APTB1612SURKQBDC-F01 Water Clear 150°
InGaN g 465 40 80

AlGaInP g 590 80 120
APTB1612SYKCGKC-F01 Water Clear 150°
AlGaInP g 570 20 50
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
1.6mm x 1.5mm x 0.7mm (Bi-Color)

AlGaInP g 630 40 80

APTB1615SURKCGKC-F01 Water Clear 150° APTB1615

AlGaInP g 570 20 50

AlGaInP g 590 80 120

APTB1615SYKCGKC-F01 Water Clear 150°

AlGaInP g 570 20 50

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
AP series custom-made is available upon request. 15
