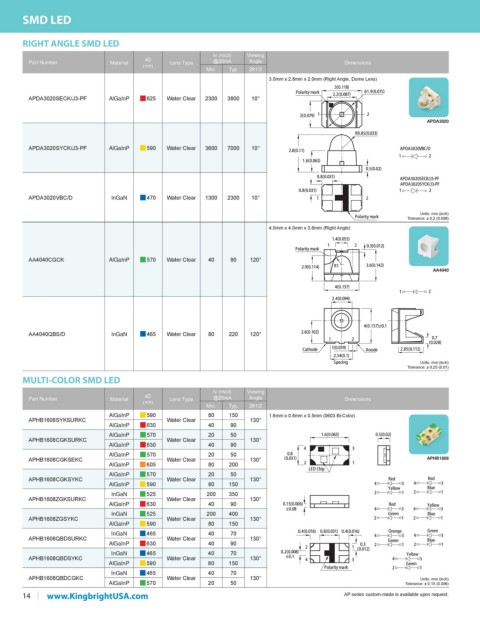

Page 16 - Kingbright 2022-2023 catalog

SMD LED

RIGHT ANGLE SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 2.8mm x 2.0mm (Right Angle, Dome Lens)
APDA3020SECK/J3-PF AlGaInP g 625 Water Clear 2300 3800 10°

APDA3020

APDA3020SYCK/J3-PF AlGaInP g 590 Water Clear 3600 7000 10°

APDA3020VBC/D InGaN g 470 Water Clear 1300 2300 10°

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
4.0mm x 4.0mm x 3.6mm (Right Angle)

AA4040CGCK AlGaInP g 570 Water Clear 40 90 120°
AA4040

AA4040QBS/D InGaN g 465 Water Clear 80 220 120°

Units: mm (inch)
Tolerance: ± 0.25 (0.01)
MULTI-COLOR SMD LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
AlGaInP g 590 80 150 1.6mm x 0.8mm x 0.5mm (0603 Bi-Color)
APHB1608SYKSURKC Water Clear 130°
AlGaInP g 630 40 90
AlGaInP g 570 20 50
APHB1608CGKSURKC Water Clear 130°
AlGaInP g 630 40 90
AlGaInP g 570 20 50
APHB1608CGKSEKC Water Clear 130° APHB1608
AlGaInP g 605 80 200
AlGaInP g 570 20 50
APHB1608CGKSYKC Water Clear 130°
AlGaInP g 590 80 150
InGaN g 525 200 350
APHB1608ZGKSURKC Water Clear 130°
AlGaInP g 630 40 90
InGaN g 525 200 400
APHB1608ZGSYKC Water Clear 130°
AlGaInP g 590 80 150
InGaN g 465 40 70
APHB1608QBDSURKC Water Clear 130°
AlGaInP g 630 40 90
InGaN g 465 40 70
APHB1608QBDSYKC Water Clear 130°
AlGaInP g 590 80 150
InGaN g 465 40 70
APHB1608QBDCGKC Water Clear 130° Units: mm (inch)
AlGaInP g 570 20 50 Tolerance: ± 0.15 (0.006)
14 www.KingbrightUSA.com AP series custom-made is available upon request.
