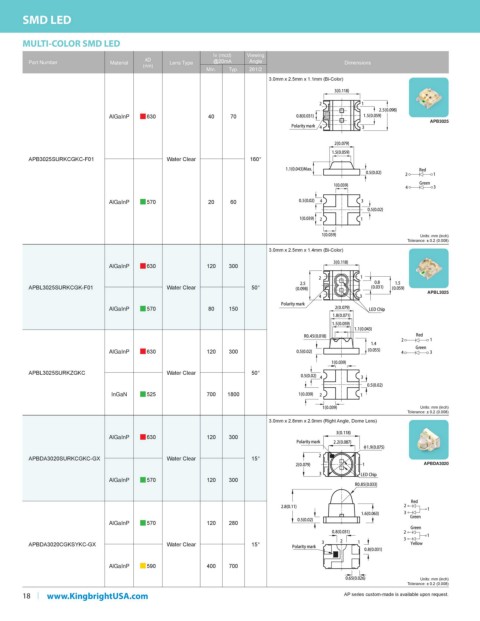

Page 20 - Kingbright 2022-2023 catalog

SMD LED

MULTI-COLOR SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 2.5mm x 1.1mm (Bi-Color)

AlGaInP g 630 40 70
APB3025

APB3025SURKCGKC-F01 Water Clear 160°

AlGaInP g 570 20 60

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.0mm x 2.5mm x 1.4mm (Bi-Color)

AlGaInP g 630 120 300

APBL3025SURKCGK-F01 Water Clear 50°
APBL3025

AlGaInP g 570 80 150

AlGaInP g 630 120 300

APBL3025SURKZGKC Water Clear 50°

InGaN g 525 700 1800
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.0mm x 2.8mm x 2.0mm (Right Angle, Dome Lens)
AlGaInP g 630 120 300

APBDA3020SURKCGKC-GX Water Clear 15°
APBDA3020
AlGaInP g 570 120 300

AlGaInP g 570 120 280

APBDA3020CGKSYKC-GX Water Clear 15°

AlGaInP g 590 400 700
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
18 www.KingbrightUSA.com AP series custom-made is available upon request.
