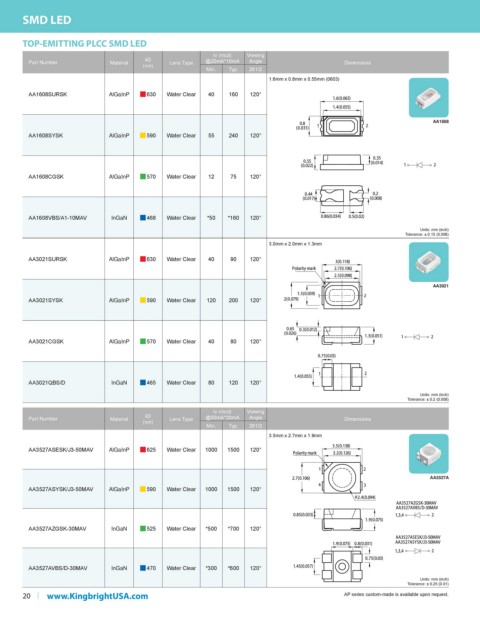

P. 22
SMD LED
TOP-EMITTING PLCC SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA*10mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.6mm x 0.8mm x 0.55mm (0603)
AA1608SURSK AlGaInP g 630 Water Clear 40 160 120°
AA1608
AA1608SYSK AlGaInP g 590 Water Clear 55 240 120°
AA1608CGSK AlGaInP g 570 Water Clear 12 75 120°
AA1608VBS/A1-10MAV InGaN g 468 Water Clear *50 *160 120°
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
3.0mm x 2.0mm x 1.3mm
AA3021SURSK AlGaInP g 630 Water Clear 40 90 120°
AA3021
AA3021SYSK AlGaInP g 590 Water Clear 120 200 120°
AA3021CGSK AlGaInP g 570 Water Clear 40 80 120°
AA3021QBS/D InGaN g 465 Water Clear 80 120 120°
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
Iv (mcd) Viewing
λD
Part Number Material Lens Type @50mA*30mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.5mm x 2.7mm x 1.9mm
AA3527ASESK/J3-50MAV AlGaInP g 625 Water Clear 1000 1500 120°
AA3527A
AA3527ASYSK/J3-50MAV AlGaInP g 590 Water Clear 1000 1500 120°
AA3527AZGSK-30MAV InGaN g 525 Water Clear *500 *700 120°
AA3527AVBS/D-30MAV InGaN g 470 Water Clear *300 *600 120°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
20 www.KingbrightUSA.com AP series custom-made is available upon request.
