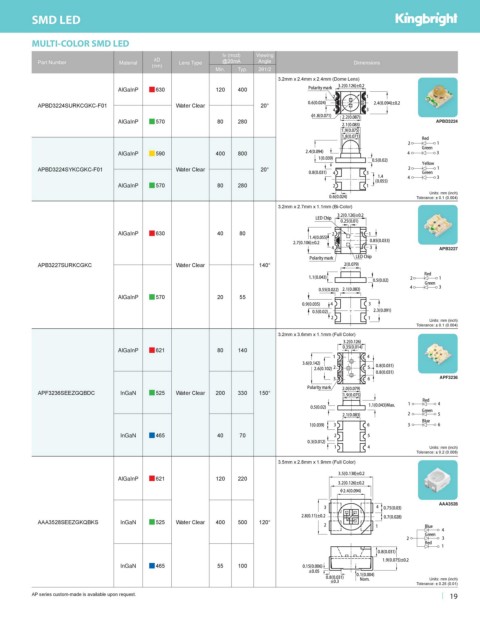

Page 21 - Kingbright 2022-2023 catalog

SMD LED

MULTI-COLOR SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.2mm x 2.4mm x 2.4mm (Dome Lens)
AlGaInP g 630 120 400
APBD3224SURKCGKC-F01 Water Clear 20°

AlGaInP g 570 80 280 APBD3224

AlGaInP g 590 400 800
APBD3224SYKCGKC-F01 Water Clear 20°

AlGaInP g 570 80 280
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.2mm x 2.7mm x 1.1mm (Bi-Color)

AlGaInP g 630 40 80
APB3227

APB3227SURKCGKC Water Clear 140°

AlGaInP g 570 20 55

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.2mm x 3.6mm x 1.1mm (Full Color)
AlGaInP g 621 80 140

APF3236
APF3236SEEZGQBDC InGaN g 525 Water Clear 200 330 150°

InGaN g 465 40 70
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.5mm x 2.8mm x 1.9mm (Full Color)

AlGaInP g 621 120 220

AAA3528

AAA3528SEEZGKQBKS InGaN g 525 Water Clear 400 500 120°

InGaN g 465 55 100
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
AP series custom-made is available upon request. 19
