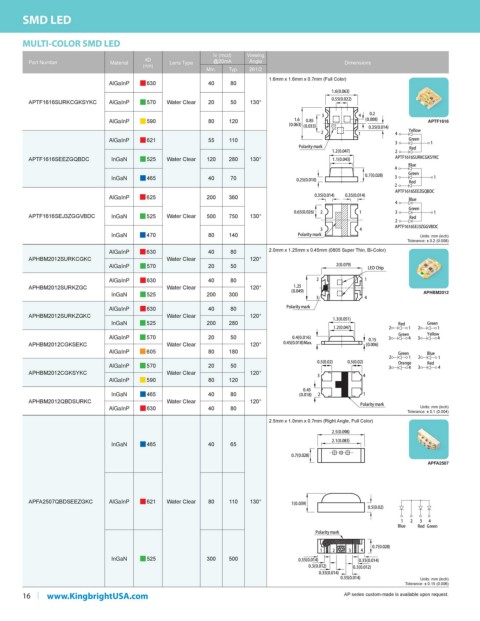

Page 18 - Kingbright 2022-2023 catalog

SMD LED

MULTI-COLOR SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.6mm x 1.6mm x 0.7mm (Full Color)
AlGaInP g 630 40 80
APTF1616SURKCGKSYKC AlGaInP g 570 Water Clear 20 50 130°

AlGaInP g 590 80 120 APTF1616

AlGaInP g 621 55 110

APTF1616SEEZGQBDC InGaN g 525 Water Clear 120 280 130°

InGaN g 465 40 70

AlGaInP g 625 200 360

APTF1616SEJ3ZGGVBDC InGaN g 525 Water Clear 500 750 130°

InGaN g 470 80 140 Units: mm (inch)
Tolerance: ± 0.2 (0.008)
AlGaInP g 630 40 80 2.0mm x 1.25mm x 0.45mm (0805 Super Thin, Bi-Color)
APHBM2012SURKCGKC Water Clear 120°
AlGaInP g 570 20 50
AlGaInP g 630 40 80
APHBM2012SURKZGC Water Clear 120°
InGaN g 525 200 300 APHBM2012

AlGaInP g 630 40 80
APHBM2012SURKZGKC Water Clear 120°
InGaN g 525 200 280
AlGaInP g 570 20 50
APHBM2012CGKSEKC Water Clear 120°
AlGaInP g 605 80 180
AlGaInP g 570 20 50
APHBM2012CGKSYKC Water Clear 120°
AlGaInP g 590 80 120
InGaN g 465 40 80
APHBM2012QBDSURKC Water Clear 120°
AlGaInP g 630 40 80 Units: mm (inch)
Tolerance: ± 0.1 (0.004)
2.5mm x 1.0mm x 0.7mm (Right Angle, Full Color)

InGaN g 465 40 65

APFA2507

APFA2507QBDSEEZGKC AlGaInP g 621 Water Clear 80 110 130°

InGaN g 525 300 500

Units: mm (inch)
Tolerance: ± 0.15 (0.006)
