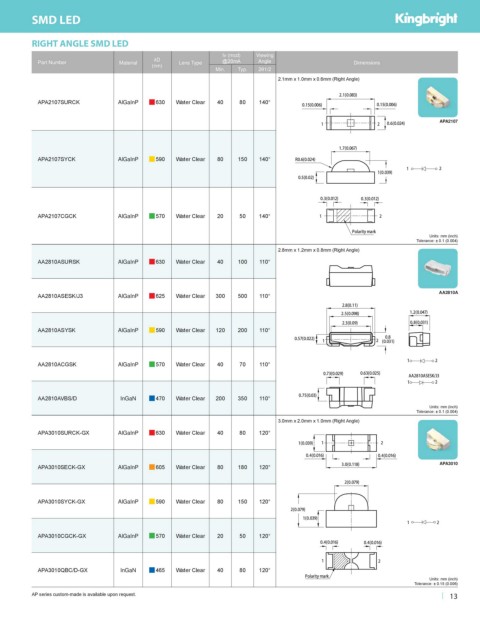

Page 15 - Kingbright 2022-2023 catalog

SMD LED

RIGHT ANGLE SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
2.1mm x 1.0mm x 0.6mm (Right Angle)

APA2107SURCK AlGaInP g 630 Water Clear 40 80 140°

APA2107

APA2107SYCK AlGaInP g 590 Water Clear 80 150 140°

APA2107CGCK AlGaInP g 570 Water Clear 20 50 140°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
2.8mm x 1.2mm x 0.8mm (Right Angle)
AA2810ASURSK AlGaInP g 630 Water Clear 40 100 110°

AA2810A
AA2810ASESK/J3 AlGaInP g 625 Water Clear 300 500 110°

AA2810ASYSK AlGaInP g 590 Water Clear 120 200 110°

AA2810ACGSK AlGaInP g 570 Water Clear 40 70 110°

AA2810AVBS/D InGaN g 470 Water Clear 200 350 110°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.0mm x 2.0mm x 1.0mm (Right Angle)
APA3010SURCK-GX AlGaInP g 630 Water Clear 40 80 120°

APA3010
APA3010SECK-GX AlGaInP g 605 Water Clear 80 180 120°

APA3010SYCK-GX AlGaInP g 590 Water Clear 80 150 120°

APA3010CGCK-GX AlGaInP g 570 Water Clear 20 50 120°

APA3010QBC/D-GX InGaN g 465 Water Clear 40 80 120°
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
AP series custom-made is available upon request. 13
