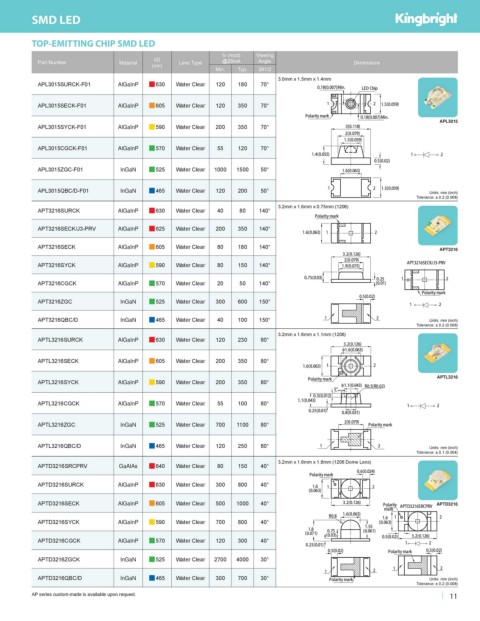

SMD LED

TOP-EMITTING CHIP SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 1.5mm x 1.4mm
APL3015SURCK-F01 AlGaInP g 630 Water Clear 120 180 70°
APL3015SECK-F01 AlGaInP g 605 Water Clear 120 350 70°

APL3015
APL3015SYCK-F01 AlGaInP g 590 Water Clear 200 350 70°

APL3015CGCK-F01 AlGaInP g 570 Water Clear 55 120 70°

APL3015ZGC-F01 InGaN g 525 Water Clear 1000 1500 50°

APL3015QBC/D-F01 InGaN g 465 Water Clear 120 200 50° Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.2mm x 1.6mm x 0.75mm (1206)
APT3216SURCK AlGaInP g 630 Water Clear 40 80 140°

APT3216SECK/J3-PRV AlGaInP g 625 Water Clear 200 350 140°

APT3216SECK AlGaInP g 605 Water Clear 80 180 140° APT3216

APT3216SYCK AlGaInP g 590 Water Clear 80 150 140°

APT3216CGCK AlGaInP g 570 Water Clear 20 50 140°

APT3216ZGC InGaN g 525 Water Clear 300 600 150°
APT3216QBC/D InGaN g 465 Water Clear 40 100 150° Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.2mm x 1.6mm x 1.1mm (1206)
APTL3216SURCK AlGaInP g 630 Water Clear 120 230 80°

APTL3216SECK AlGaInP g 605 Water Clear 200 350 80°

APTL3216
APTL3216SYCK AlGaInP g 590 Water Clear 200 350 80°

APTL3216CGCK AlGaInP g 570 Water Clear 55 100 80°

APTL3216ZGC InGaN g 525 Water Clear 700 1100 80°

APTL3216QBC/D InGaN g 465 Water Clear 120 250 80° Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.2mm x 1.6mm x 1.8mm (1206 Dome Lens)
APTD3216SRCPRV GaAlAs g 640 Water Clear 80 150 40°

APTD3216SURCK AlGaInP g 630 Water Clear 300 800 40°

APTD3216SECK AlGaInP g 605 Water Clear 500 1000 40° APTD3216

APTD3216SYCK AlGaInP g 590 Water Clear 700 800 40°

APTD3216CGCK AlGaInP g 570 Water Clear 120 300 40°

APTD3216ZGCK InGaN g 525 Water Clear 2700 4000 30°

APTD3216QBC/D InGaN g 465 Water Clear 300 700 30° Units: mm (inch)
Tolerance: ± 0.2 (0.008)
AP series custom-made is available upon request. 11
