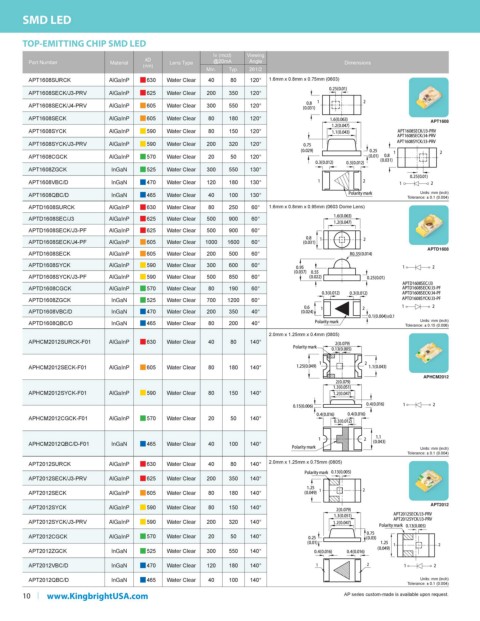

Page 12 - Kingbright 2022-2023 catalog

SMD LED

TOP-EMITTING CHIP SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
APT1608SURCK AlGaInP g 630 Water Clear 40 80 120° 1.6mm x 0.8mm x 0.75mm (0603)
APT1608SECK/J3-PRV AlGaInP g 625 Water Clear 200 350 120°
APT1608SECK/J4-PRV AlGaInP g 605 Water Clear 300 550 120°
APT1608SECK AlGaInP g 605 Water Clear 80 180 120°
APT1608
APT1608SYCK AlGaInP g 590 Water Clear 80 150 120°
APT1608SYCK/J3-PRV AlGaInP g 590 Water Clear 200 320 120°
APT1608CGCK AlGaInP g 570 Water Clear 20 50 120°
APT1608ZGCK InGaN g 525 Water Clear 300 550 130°
APT1608VBC/D InGaN g 470 Water Clear 120 180 130°
Units: mm (inch)
APT1608QBC/D InGaN g 465 Water Clear 40 100 130° Tolerance: ± 0.1 (0.004)
APTD1608SURCK AlGaInP g 630 Water Clear 80 250 60° 1.6mm x 0.8mm x 0.95mm (0603 Dome Lens)
APTD1608SEC/J3 AlGaInP g 625 Water Clear 500 900 60°
APTD1608SECK/J3-PF AlGaInP g 625 Water Clear 500 900 60°
APTD1608SECK/J4-PF AlGaInP g 605 Water Clear 1000 1600 60°
APTD1608
APTD1608SECK AlGaInP g 605 Water Clear 200 500 60°
APTD1608SYCK AlGaInP g 590 Water Clear 300 600 60°
APTD1608SYCK/J3-PF AlGaInP g 590 Water Clear 500 850 60°
APTD1608CGCK AlGaInP g 570 Water Clear 80 190 60°
APTD1608ZGCK InGaN g 525 Water Clear 700 1200 60°
APTD1608VBC/D InGaN g 470 Water Clear 200 350 40°
Units: mm (inch)
APTD1608QBC/D InGaN g 465 Water Clear 80 200 40° Tolerance: ± 0.15 (0.006)
2.0mm x 1.25mm x 0.4mm (0805)
APHCM2012SURCK-F01 AlGaInP g 630 Water Clear 40 80 140°

APHCM2012SECK-F01 AlGaInP g 605 Water Clear 80 180 140°
APHCM2012
APHCM2012SYCK-F01 AlGaInP g 590 Water Clear 80 150 140°

APHCM2012CGCK-F01 AlGaInP g 570 Water Clear 20 50 140°

APHCM2012QBC/D-F01 InGaN g 465 Water Clear 40 100 140°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
APT2012SURCK AlGaInP g 630 Water Clear 40 80 140° 2.0mm x 1.25mm x 0.75mm (0805)

APT2012SECK/J3-PRV AlGaInP g 625 Water Clear 200 350 140°
APT2012SECK AlGaInP g 605 Water Clear 80 180 140°
APT2012SYCK AlGaInP g 590 Water Clear 80 150 140° APT2012

APT2012SYCK/J3-PRV AlGaInP g 590 Water Clear 200 320 140°
APT2012CGCK AlGaInP g 570 Water Clear 20 50 140°
APT2012ZGCK InGaN g 525 Water Clear 300 550 140°

APT2012VBC/D InGaN g 470 Water Clear 120 180 140°
APT2012QBC/D InGaN g 465 Water Clear 40 100 140° Units: mm (inch)
Tolerance: ± 0.1 (0.004)
