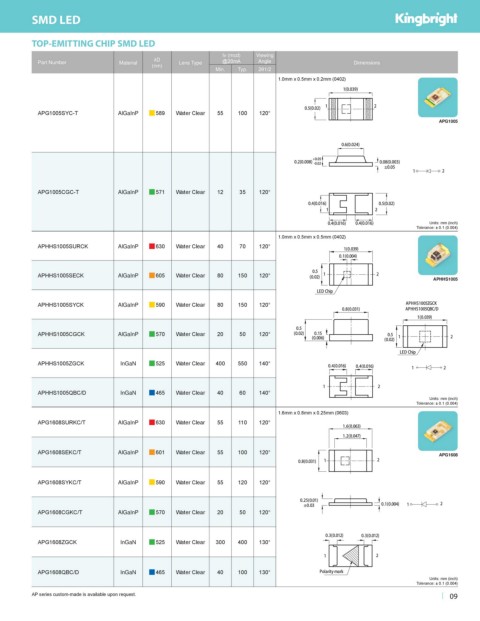

P. 11
SMD LED
TOP-EMITTING CHIP SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.0mm x 0.5mm x 0.2mm (0402)
APG1005SYC-T AlGaInP g 589 Water Clear 55 100 120°
APG1005
APG1005CGC-T AlGaInP g 571 Water Clear 12 35 120°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.0mm x 0.5mm x 0.5mm (0402)
APHHS1005SURCK AlGaInP g 630 Water Clear 40 70 120°
APHHS1005SECK AlGaInP g 605 Water Clear 80 150 120°
APHHS1005
APHHS1005SYCK AlGaInP g 590 Water Clear 80 150 120°
APHHS1005CGCK AlGaInP g 570 Water Clear 20 50 120°
APHHS1005ZGCK InGaN g 525 Water Clear 400 550 140°
APHHS1005QBC/D InGaN g 465 Water Clear 40 60 140°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.6mm x 0.8mm x 0.25mm (0603)
APG1608SURKC/T AlGaInP g 630 Water Clear 55 110 120°
APG1608SEKC/T AlGaInP g 601 Water Clear 55 100 120° APG1608
APG1608SYKC/T AlGaInP g 590 Water Clear 55 120 120°
APG1608CGKC/T AlGaInP g 570 Water Clear 20 50 120°
APG1608ZGCK InGaN g 525 Water Clear 300 400 130°
APG1608QBC/D InGaN g 465 Water Clear 40 100 130°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
AP series custom-made is available upon request. 09
