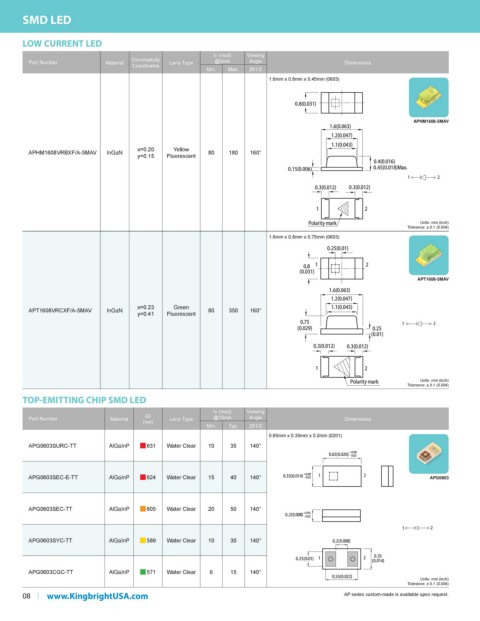

SMD LED
LOW CURRENT LED
Iv (mcd) Viewing
Chromaticity
Part Number Material Lens Type @5mA Angle Dimensions
Coordinates
Min. Max. 2θ1/2
1.6mm x 0.8mm x 0.45mm (0603)
APHM1608-5MAV
x=0.20 Yellow
APHM1608VRBXF/A-5MAV InGaN 80 180 160°
y=0.15 Fluorescent
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.6mm x 0.8mm x 0.75mm (0603)
APT1608-5MAV
x=0.23 Green
APT1608VRCXF/A-5MAV InGaN 80 350 160°
y=0.41 Fluorescent
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
TOP-EMITTING CHIP SMD LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
0.65mm x 0.35mm x 0.2mm (0201)
APG0603SURC-TT AlGaInP g 631 Water Clear 10 35 140°
APG0603SEC-E-TT AlGaInP g 624 Water Clear 15 40 140° APG0603
APG0603SEC-TT AlGaInP g 605 Water Clear 20 50 140°
APG0603SYC-TT AlGaInP g 589 Water Clear 10 30 140°
APG0603CGC-TT AlGaInP g 571 Water Clear 6 15 140°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
