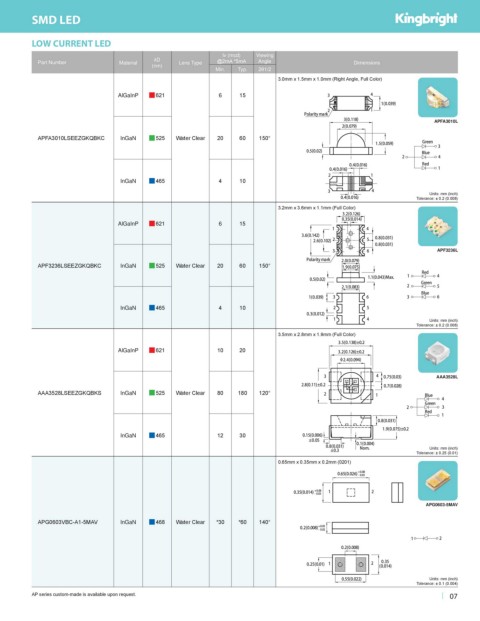

Page 9 - Kingbright 2022-2023 catalog

SMD LED

LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA *5mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 1.5mm x 1.0mm (Right Angle, Full Color)
AlGaInP g 621 6 15

APFA3010L
APFA3010LSEEZGKQBKC InGaN g 525 Water Clear 20 60 150°

InGaN g 465 4 10
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.2mm x 3.6mm x 1.1mm (Full Color)
AlGaInP g 621 6 15

APF3236L

APF3236LSEEZGKQBKC InGaN g 525 Water Clear 20 60 150°

InGaN g 465 4 10

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.5mm x 2.8mm x 1.9mm (Full Color)
AlGaInP g 621 10 20

AAA3528L
AAA3528LSEEZGKQBKS InGaN g 525 Water Clear 80 180 120°

InGaN g 465 12 30
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
0.65mm x 0.35mm x 0.2mm (0201)

APG0603-5MAV

APG0603VBC-A1-5MAV InGaN g 468 Water Clear *30 *60 140°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
AP series custom-made is available upon request. 07
