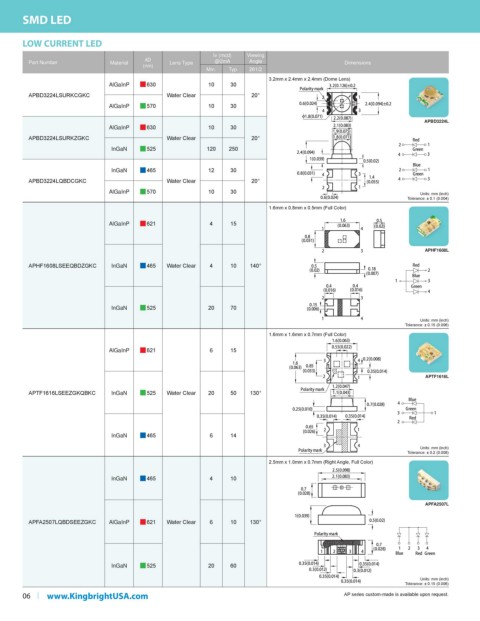

Page 8 - Kingbright 2022-2023 catalog

SMD LED

LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.2mm x 2.4mm x 2.4mm (Dome Lens)
AlGaInP g 630 10 30
APBD3224LSURKCGKC Water Clear 20°
AlGaInP g 570 10 30

APBD3224L
AlGaInP g 630 10 30
APBD3224LSURKZGKC Water Clear 20°
InGaN g 525 120 250

InGaN g 465 12 30
APBD3224LQBDCGKC Water Clear 20°
AlGaInP g 570 10 30 Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.6mm x 0.8mm x 0.5mm (Full Color)
AlGaInP g 621 4 15

APHF1608L

APHF1608LSEEQBDZGKC InGaN g 465 Water Clear 4 10 140°

InGaN g 525 20 70

Units: mm (inch)
Tolerance: ± 0.15 (0.006)
1.6mm x 1.6mm x 0.7mm (Full Color)
AlGaInP g 621 6 15

APTF1616L
APTF1616LSEEZGKQBKC InGaN g 525 Water Clear 20 50 130°

InGaN g 465 6 14
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
2.5mm x 1.0mm x 0.7mm (Right Angle, Full Color)

InGaN g 465 4 10

APFA2507L

APFA2507LQBDSEEZGKC AlGaInP g 621 Water Clear 6 10 130°

InGaN g 525 20 60
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
06 www.KingbrightUSA.com AP series custom-made is available upon request.
