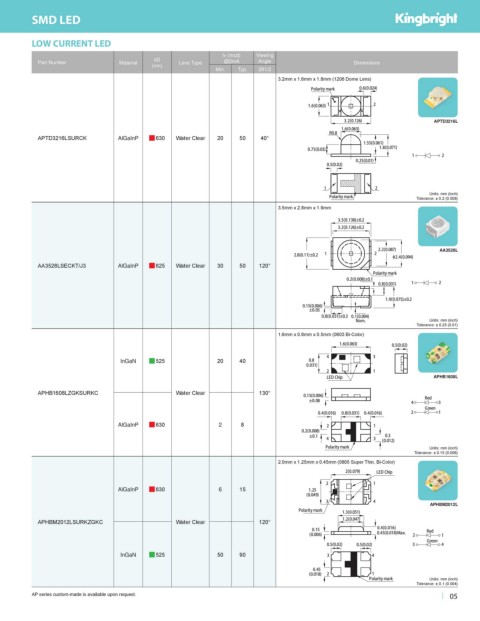

Page 7 - Kingbright 2022-2023 catalog
P. 7
SMD LED
LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.2mm x 1.6mm x 1.8mm (1206 Dome Lens)
APTD3216L
APTD3216LSURCK AlGaInP g 630 Water Clear 20 50 40°
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.5mm x 2.8mm x 1.9mm
AA3528L
AA3528LSECKT/J3 AlGaInP g 625 Water Clear 30 50 120°
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
1.6mm x 0.8mm x 0.5mm (0603 Bi-Color)
InGaN g 525 20 40
APHB1608L
APHB1608LZGKSURKC Water Clear 130°
AlGaInP g 630 2 8
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
2.0mm x 1.25mm x 0.45mm (0805 Super Thin, Bi-Color)
AlGaInP g 630 6 15
APHBM2012L
APHBM2012LSURKZGKC Water Clear 120°
InGaN g 525 50 90
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
AP series custom-made is available upon request. 05
