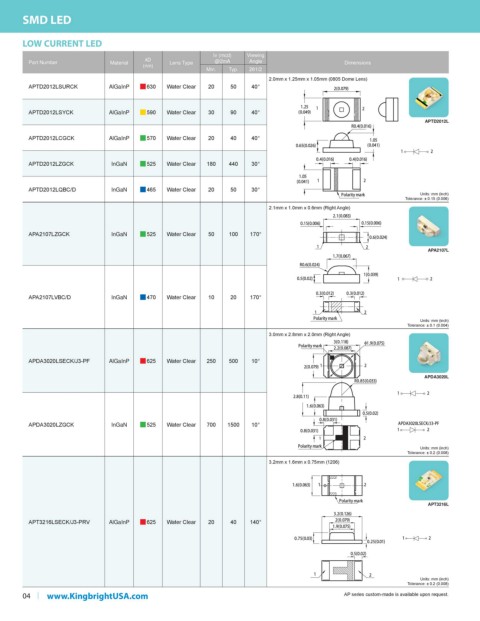

SMD LED

LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
2.0mm x 1.25mm x 1.05mm (0805 Dome Lens)
APTD2012LSURCK AlGaInP g 630 Water Clear 20 50 40°

APTD2012LSYCK AlGaInP g 590 Water Clear 30 90 40°
APTD2012L
APTD2012LCGCK AlGaInP g 570 Water Clear 20 40 40°

APTD2012LZGCK InGaN g 525 Water Clear 180 440 30°

APTD2012LQBC/D InGaN g 465 Water Clear 20 50 30°
Units: mm (inch)
Tolerance: ± 0.15 (0.006)
2.1mm x 1.0mm x 0.6mm (Right Angle)

APA2107LZGCK InGaN g 525 Water Clear 50 100 170°
APA2107L

APA2107LVBC/D InGaN g 470 Water Clear 10 20 170°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
3.0mm x 2.8mm x 2.0mm (Right Angle)

APDA3020LSECK/J3-PF AlGaInP g 625 Water Clear 250 500 10°

APDA3020L

APDA3020LZGCK InGaN g 525 Water Clear 700 1500 10°

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.2mm x 1.6mm x 0.75mm (1206)

APT3216L

APT3216LSECK/J3-PRV AlGaInP g 625 Water Clear 20 40 140°

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
